Description

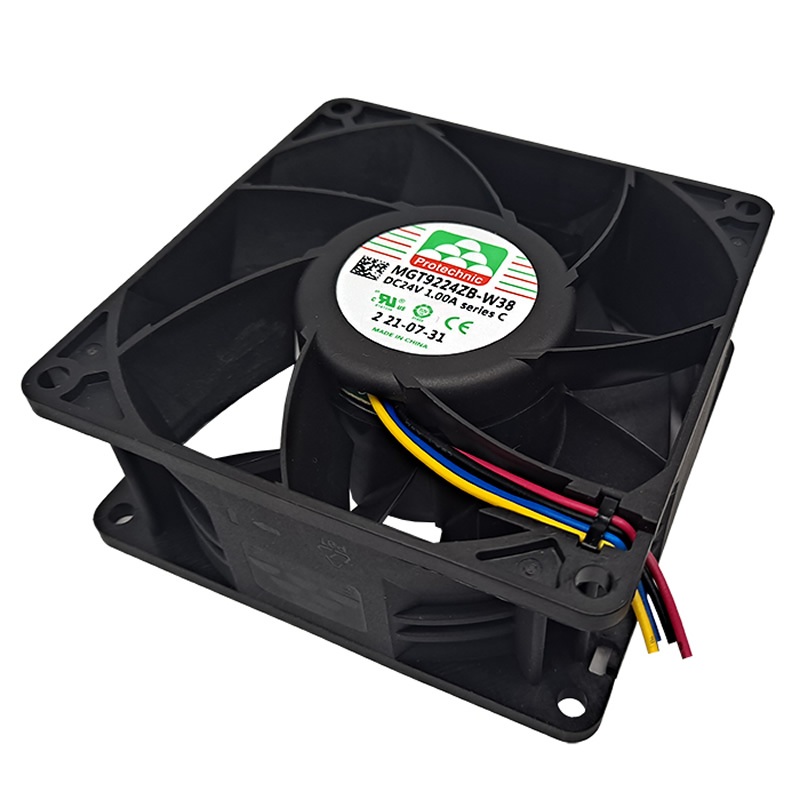

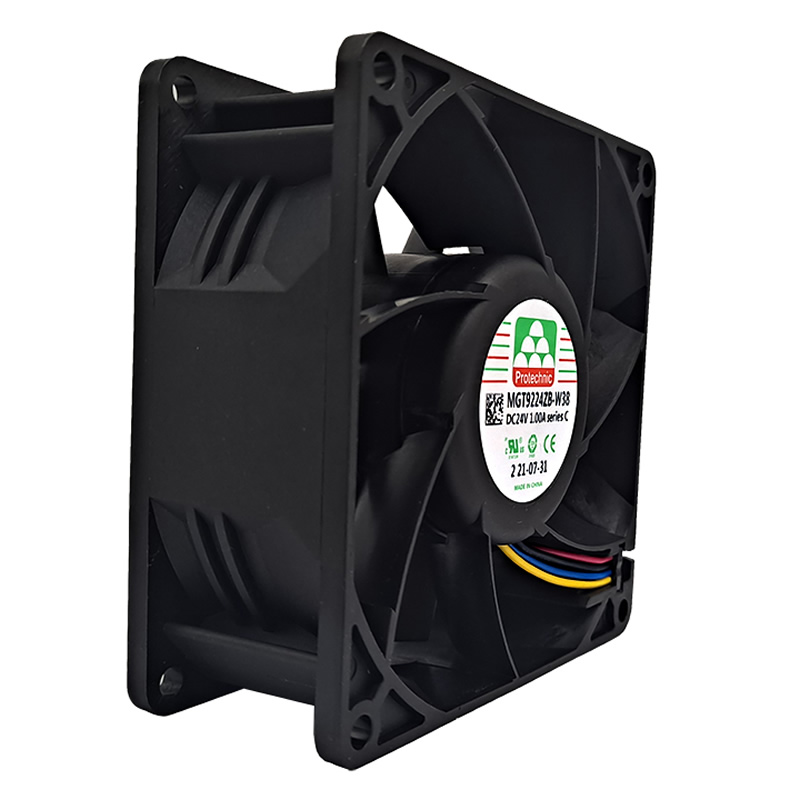

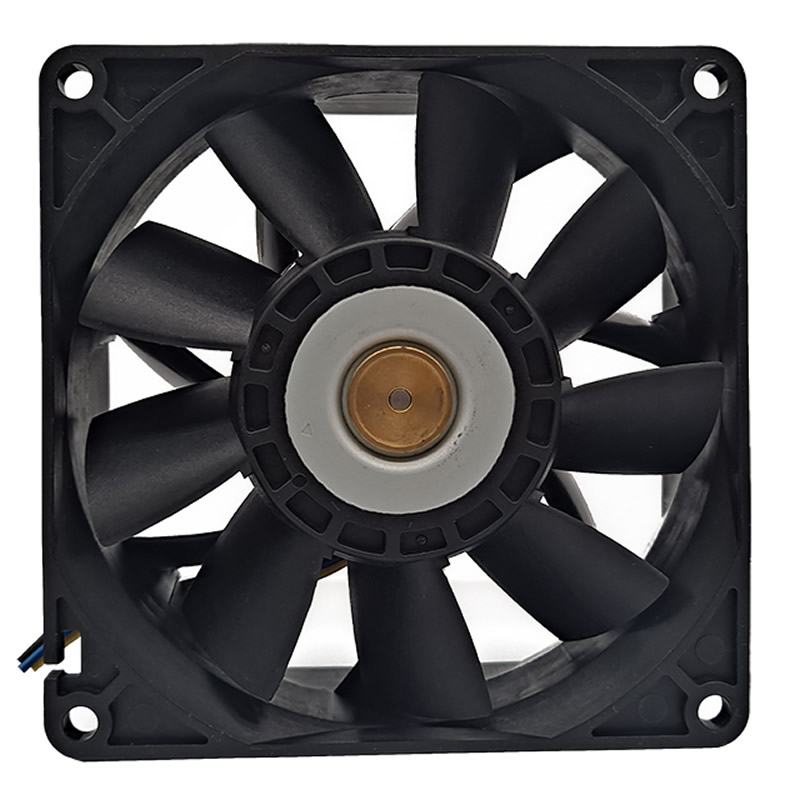

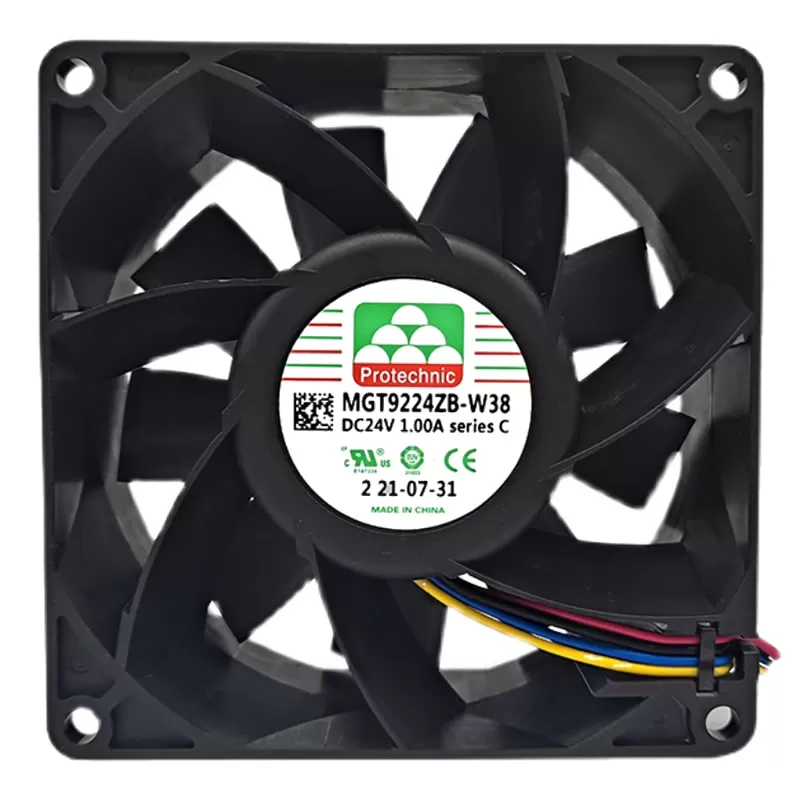

MGT9224ZB-W38 Protechnic 24VDC 4.214m³/min 148.79CFM 266.83Pa 1.071inH2O 6000RPM 1A 24W 61.3dB(A) 92x92x38mm Ball Bearing 4 Wire Leads DC Axial Fan
Specifications
| Model Number | MGT9224ZB-W38 |
|---|---|
| Manufacturer | Protechnic Electric |
| Actual Power | 20.4 W |
| Fan Type | DC |
| Voltage Rating | 24 VDC |
| Air Flow CMM | 4.214 m³/min |
| Air Flow | 148.79 CFM |
| Static Pressure Pa | 266.83 Pa |
| Static Pressure mmAq | 27.2 mmAq |
| Static Pressure | 1.071 in H2O |
| Fan Speed | 6000 RPM |
| Current Rating | 1 A |
| Actual Current | 0.85 A |
| Power Rating | 24 W |
| Weight | 230 g |
| Noise Level | 61.3 dB(A) |
| Dimensions | 92x92x38 mm |
| Bearing Type | Ball Bearing |
| Material Blade | Plastic |
| Material Frame | Plastic |
| Lifetime @ Temp | 40000 Hrs @ 60°C |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Storage Temperature | -40℃～70℃(5%～95% RH) |
| Approval Agency | CE, TUV, UL |
| Termination | 4 Wire Leads |
| Category | Axial Fan |
| Features | Pulse width modulation,automatic restart,locked current protection(PWM) |
| series | 92*92*38mm seriesC |
| Shipping Weight | 0.25 kg |
| Product PDF | MGT9224ZB-W38-Protechnic.pdf |
