Description

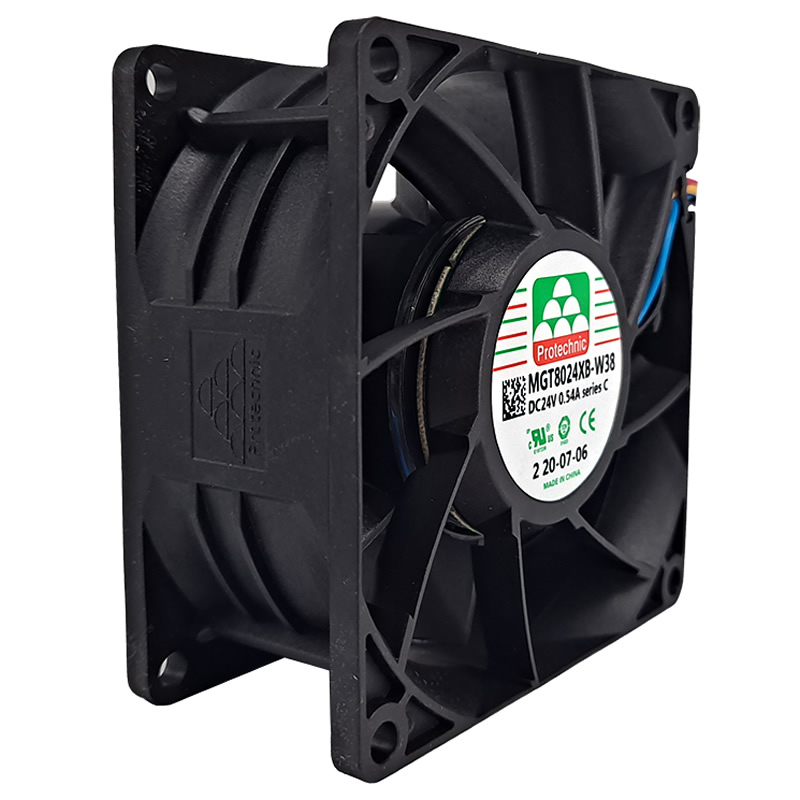

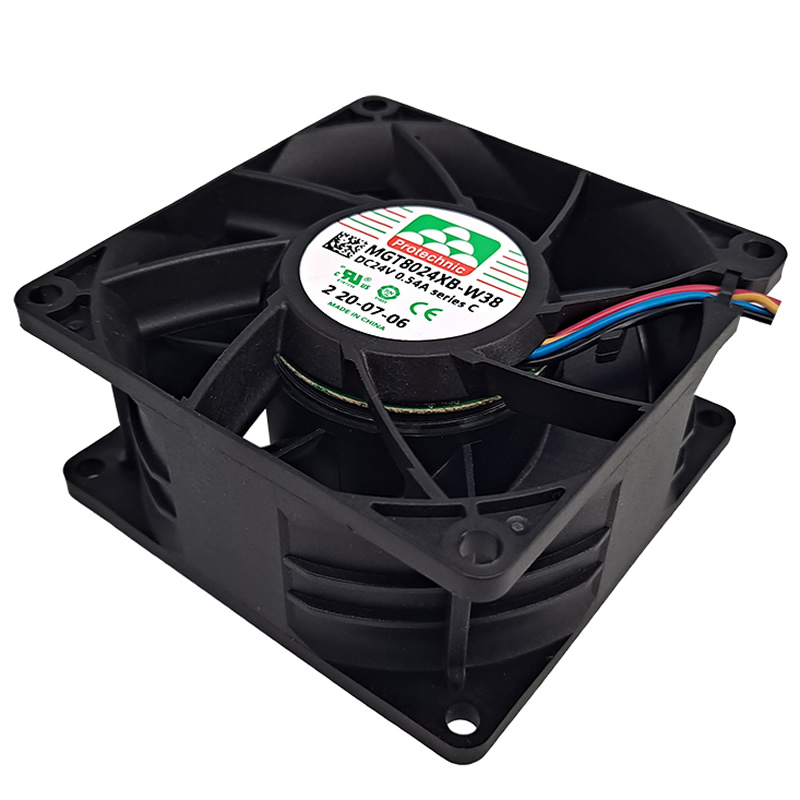

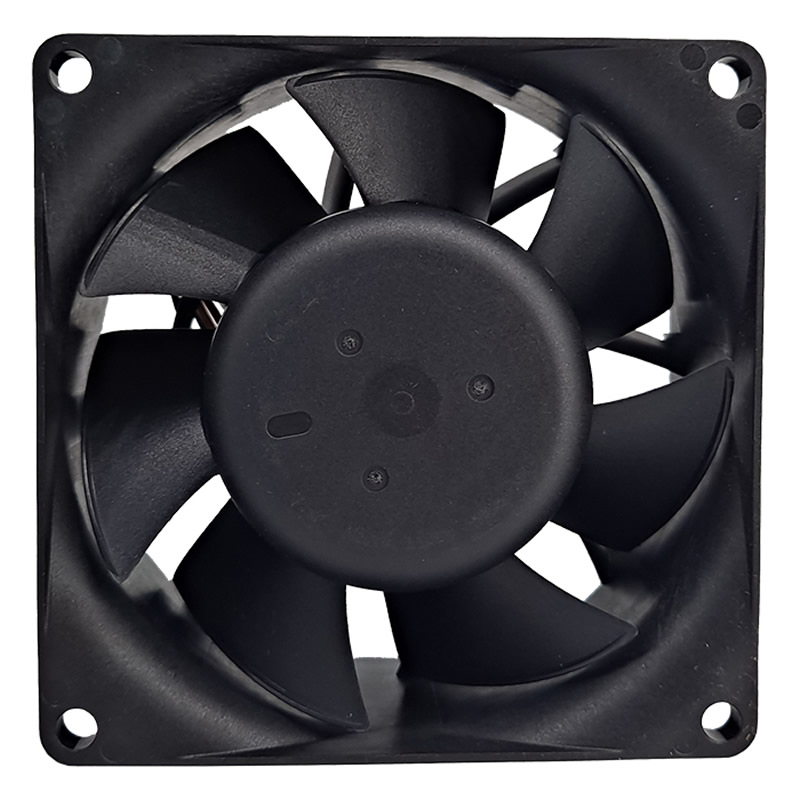

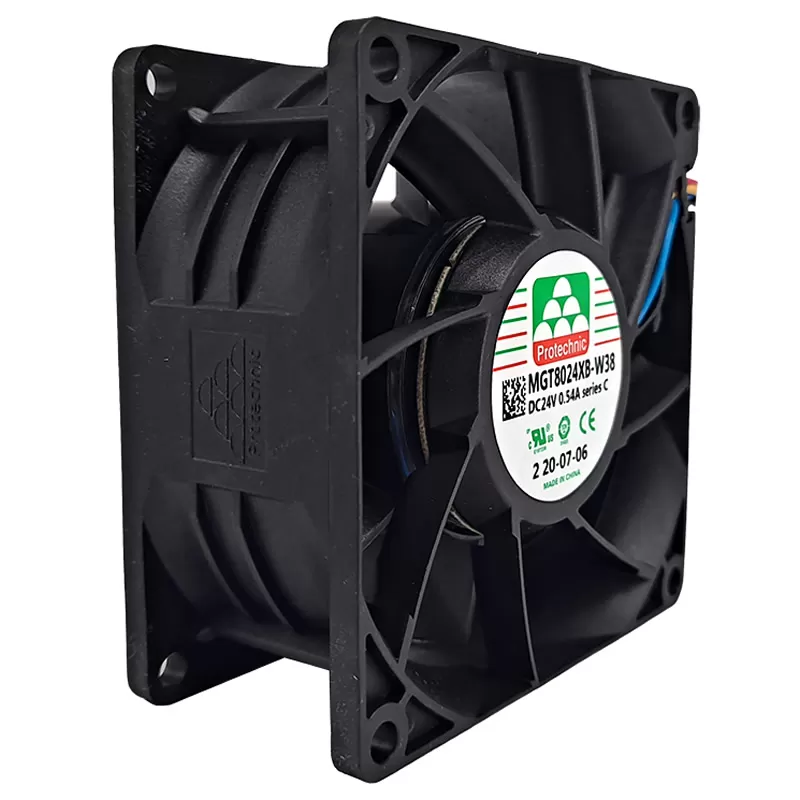

MGT8024XB-W38 Protechnic 24VDC 2.488m³/min 87.83CFM 207.97Pa 0.835inH2O 6300RPM 0.54A 12.96W 53.5dB(A) 80x80x38mm Ball Bearing 3 Wire Leads DC Axial Fan
Specifications
| Model Number | MGT8024XB-W38 |
|---|---|
| Manufacturer | Protechnic Electric |
| Actual Power | 10.8 W |
| Fan Type | DC |
| Voltage Rating | 24 VDC |
| Air Flow CMM | 2.488 m³/min |
| Air Flow | 87.83 CFM |
| Static Pressure Pa | 207.97 Pa |
| Static Pressure mmAq | 21.2 mmAq |
| Static Pressure | 0.835 in H2O |
| Fan Speed | 6300 RPM |
| Current Rating | 0.54 A |
| Actual Current | 0.45 A |
| Power Rating | 12.96 W |
| Weight | 215 g |
| Noise Level | 53.5 dB(A) |
| Dimensions | 80x80x38 mm |
| Bearing Type | Ball Bearing |
| Material Blade | Plastic |
| Material Frame | Plastic |
| Lifetime @ Temp | 40000 Hrs @ 60°C |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Storage Temperature | -40℃～70℃(5%～95% RH) |
| Approval Agency | CE, TUV, UL |
| Termination | 3 Wire Leads |
| Category | Axial Fan |
| Features | Pulse width modulation,automatic restart,locked current protection(PWM) |
| series | 80*80*38mm seriesB |
| Shipping Weight | 0.25 kg |
| Product PDF | MGT8024XB-W38-Protechnic.pdf |
