Description

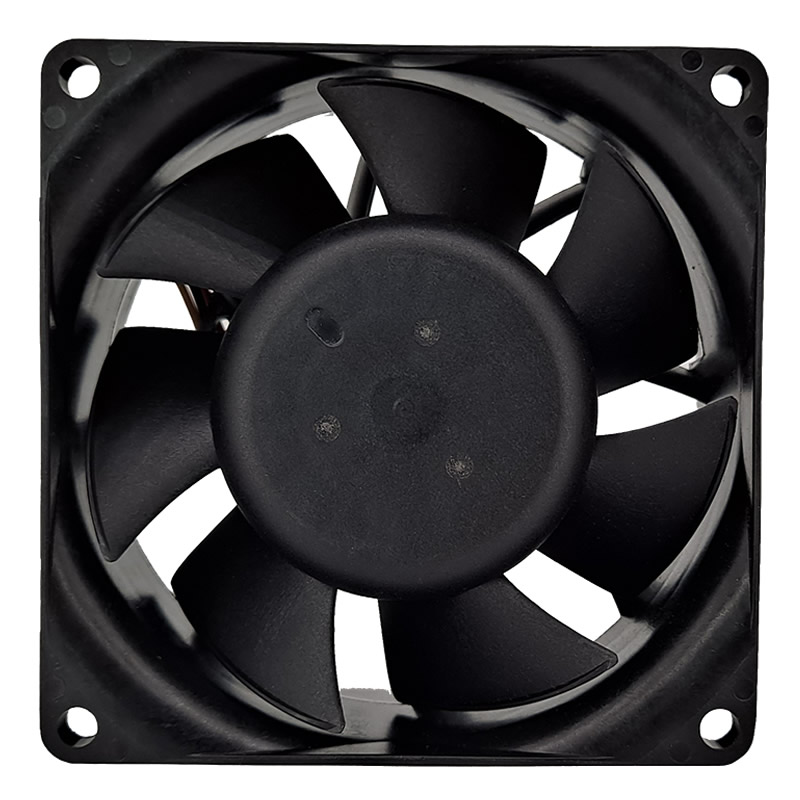

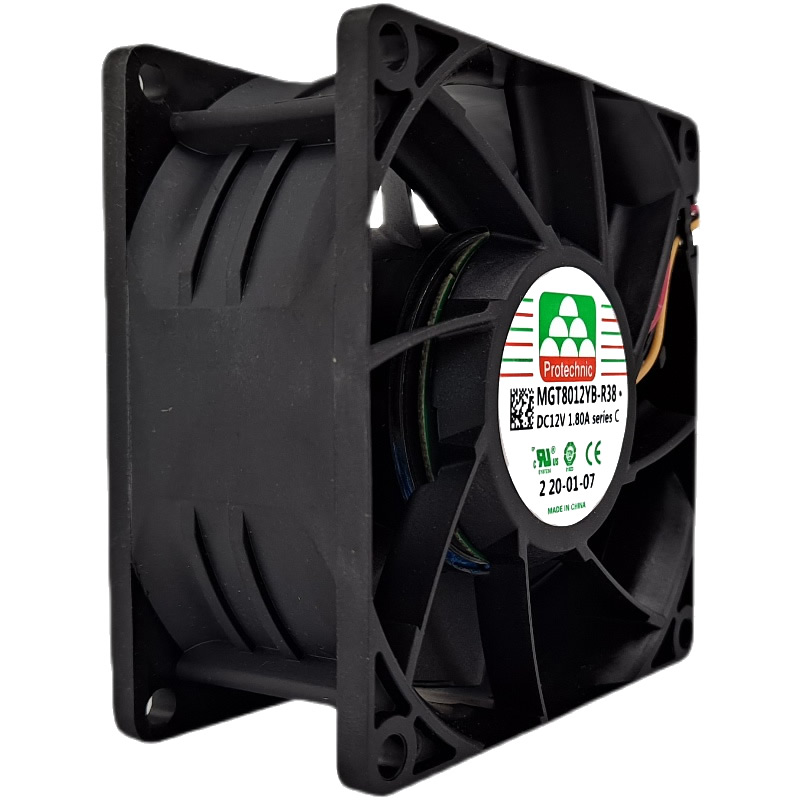

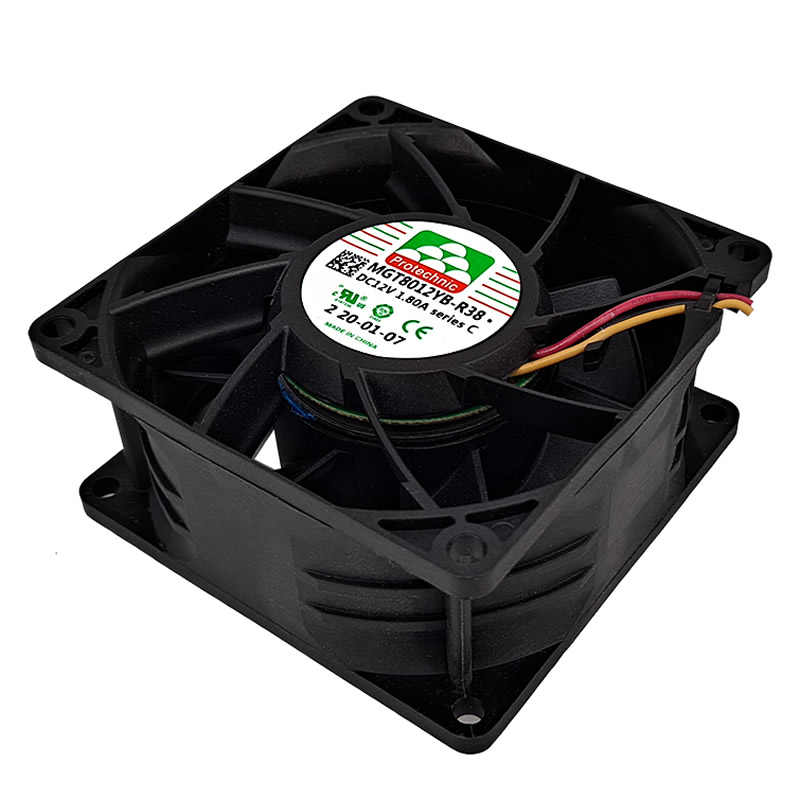

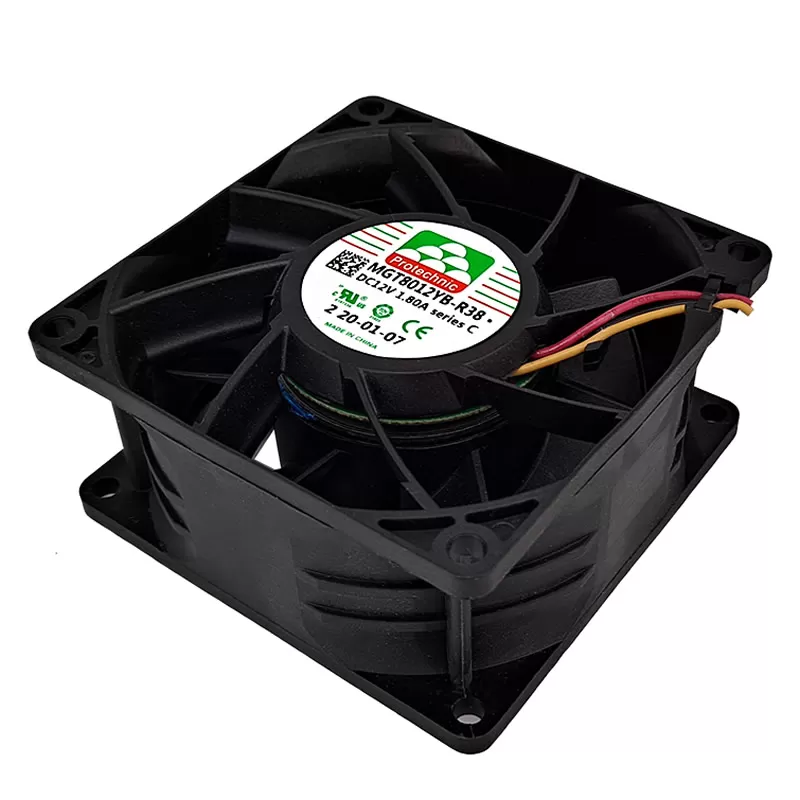

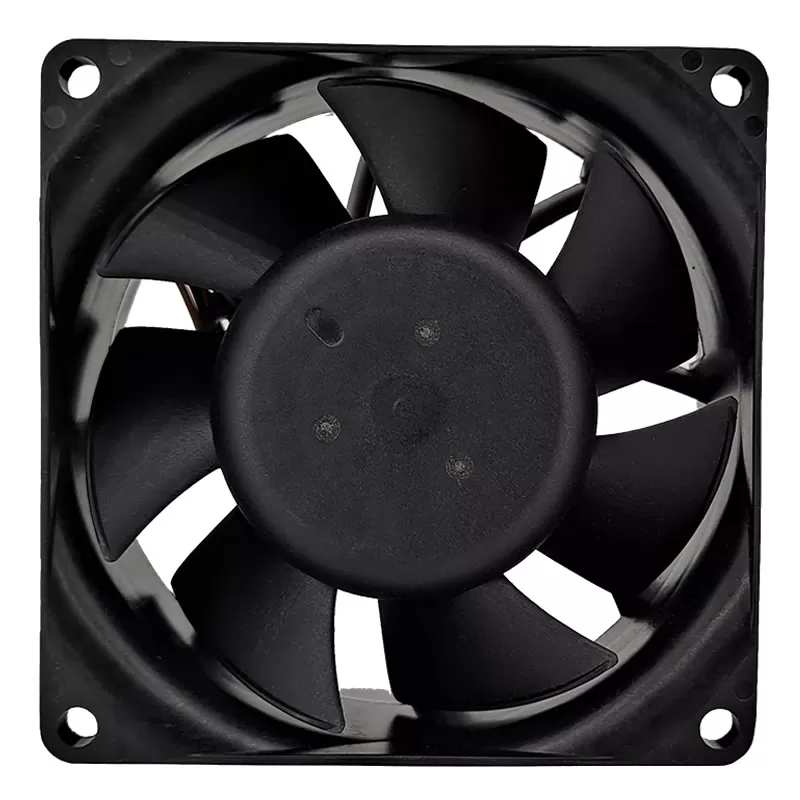

MGT8012YB-R38 Protechnic 12VDC 2.713m³/min 95.78CFM 247.21Pa 0.992inH2O 6900RPM 1.8A 21.6W 57.1dB(A) 80x80x38mm Ball Bearing 3 Wire Leads DC Axial Fan
Specifications
| Model Number | MGT8012YB-R38 |
|---|---|
| Manufacturer | Protechnic Electric |
| Dimensions | 80x80x38 mm |
| Actual Power | 14.4 W |
| Fan Type | DC |
| Voltage Rating | 12 VDC |
| Air Flow CMM | 2.713 m³/min |
| Air Flow | 95.78 CFM |
| Static Pressure Pa | 247.21 Pa |
| Static Pressure mmAq | 25.2 mmAq |
| Static Pressure | 0.992 in H2O |
| Fan Speed | 6900 RPM |
| Current Rating | 1.8 A |
| Actual Current | 1.2 A |
| Power Rating | 21.6 W |
| Weight | 215 g |
| Noise Level | 57.1 dB(A) |
| Bearing Type | Ball Bearing |
| Material Blade | Plastic |
| Material Frame | Plastic |
| Lifetime @ Temp | 40000 Hrs @ 60°C |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Storage Temperature | -40℃～70℃(5%～95% RH) |
| Approval Agency | CE, TUV, UL |
| Termination | 3 Wire Leads |
| Category | Axial Fan |
| Features | Rotate detection,automatic restart,locked current protection |
| series | 80*80*38mm seriesC |
| Shipping Weight | 0.25 kg |
| Product PDF | MGT8012YB-R38-Protechnic.pdf |
