Description

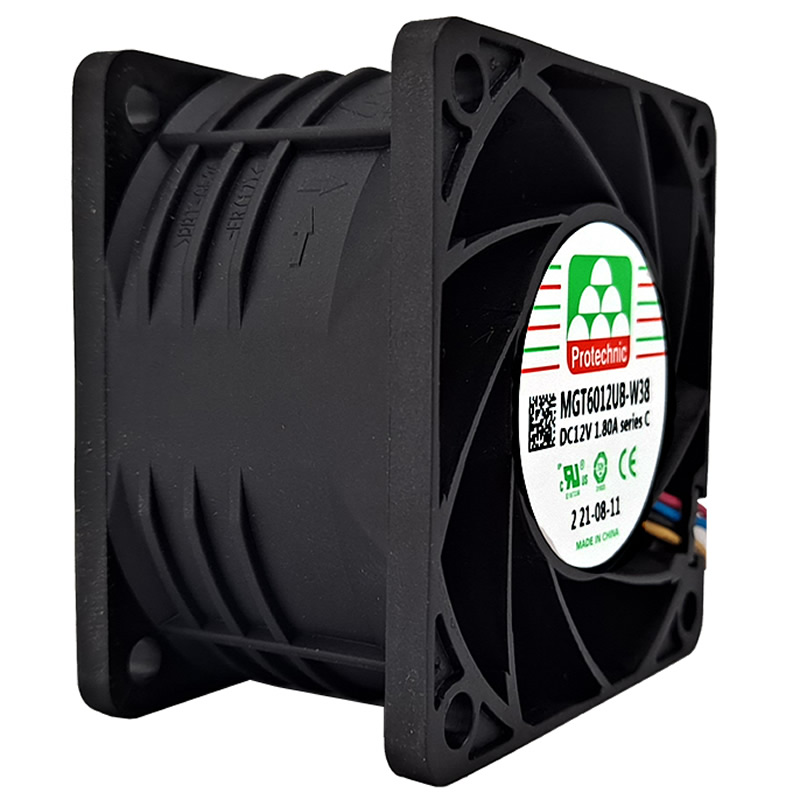

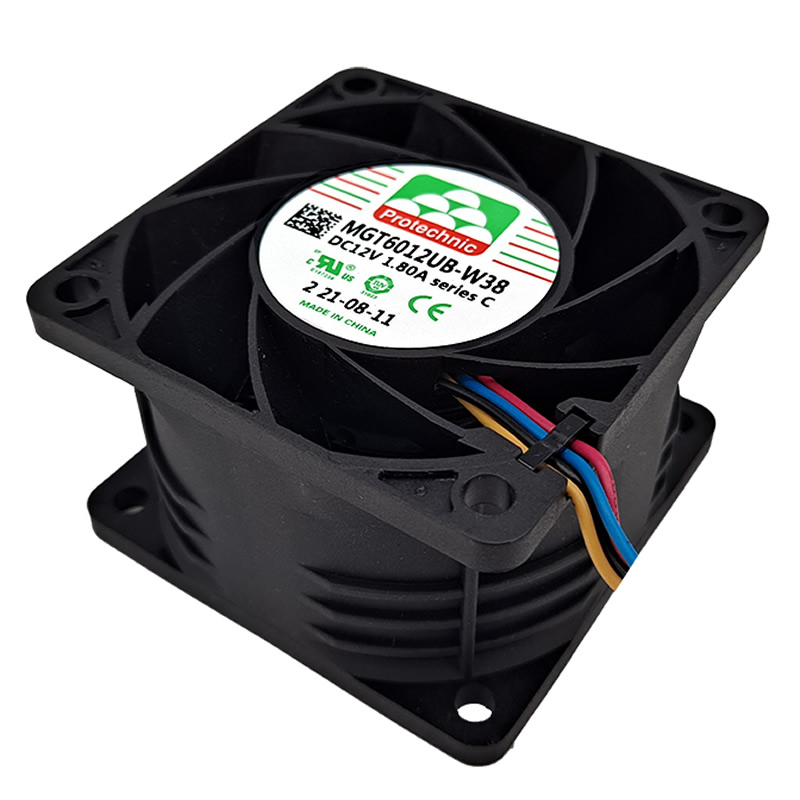

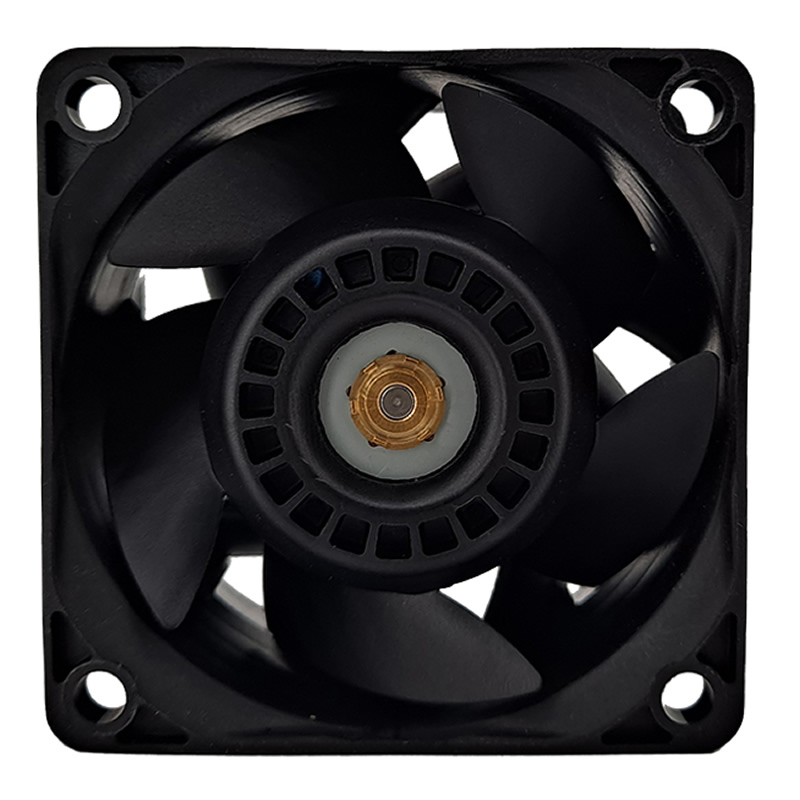

MGT6012UB-W38 Protechnic 12VDC 1.943m³/min 68.62CFM 760.28Pa 3.051inH2O 18000RPM 1.8A 21.6W 62dB(A) 60x60x38mm Ball Bearing 4 Wire Leads DC Axial Fan
Specifications
| Model Number | MGT6012UB-W38 |
|---|---|
| Manufacturer | Protechnic Electric |
| Fan Type | DC |
| Voltage Rating | 12 VDC |
| Air Flow CMM | 1.943 m³/min |
| Air Flow | 68.62 CFM |
| Static Pressure Pa | 760.28 Pa |
| Static Pressure mmAq | 77.5 mmAq |
| Static Pressure | 3.051 in H2O |
| Fan Speed | 18000 RPM |
| Current Rating | 1.8 A |
| Actual Current | 1.52 A |
| Power Rating | 21.6 W |
| Actual Power | 18.24 W |
| Noise Level | 62 dB(A) |
| Weight | 118 g |
| Dimensions | 60x60x38 mm |
| Bearing Type | Ball Bearing |
| Material Blade | Plastic |
| Material Frame | Plastic |
| Lifetime @ Temp | 40000 Hrs @ 60°C |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Storage Temperature | -40℃～70℃(5%～95% RH) |
| Approval Agency | CE, TUV, UL |
| Termination | 4 Wire Leads |
| Category | Axial Fan |
| Features | Pulse width modulation,automatic restart,locked current protection(PWM) |
| series | 60*60*38mm seriesC |
| Shipping Weight | 0.25 kg |
| Product PDF | MGT6012UB-W38-Protechnic.pdf |
