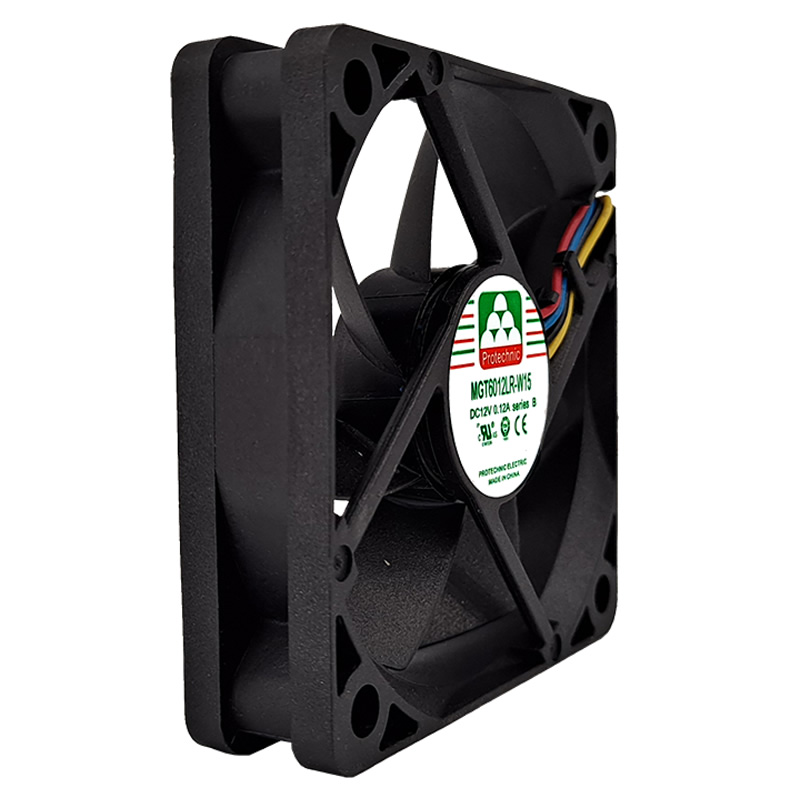

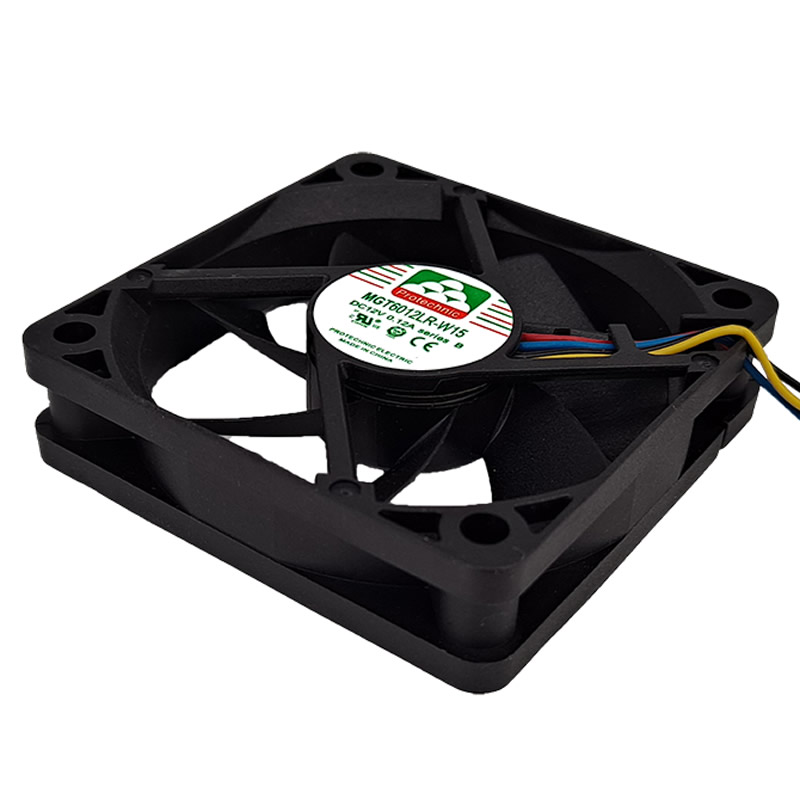

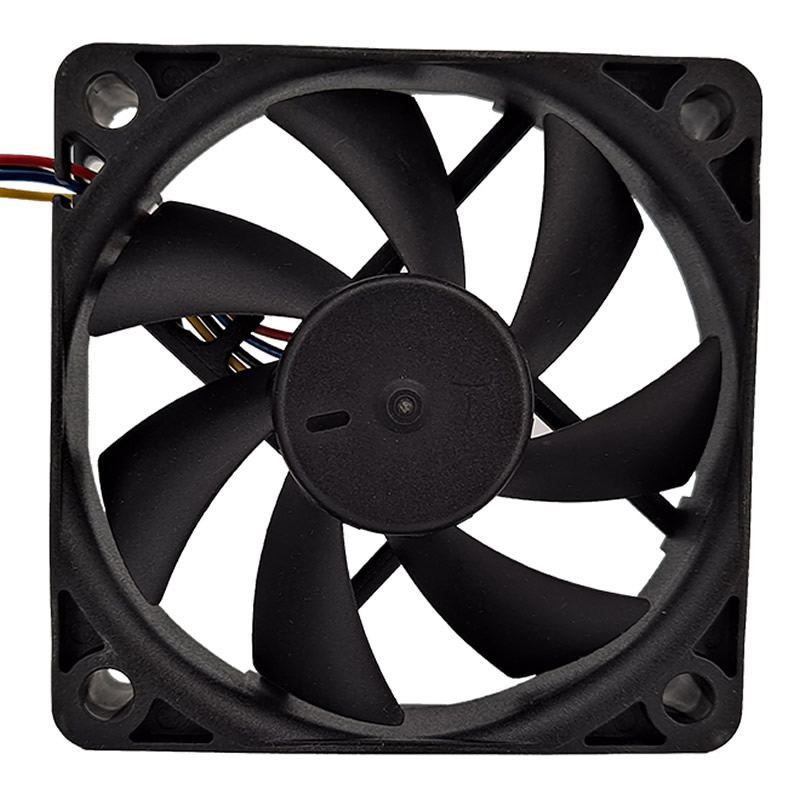

MGT6012LR-W15 Protechnic

Description

MGT6012LR-W15 Protechnic 12VDC 0.436m³/min 15.4CFM 14.72Pa 0.059inH2O 3000RPM 0.12A 1.44W 19.1dB(A) 60x60x15mm Rifle Bearing 3 Wire Leads DC Axial Fan

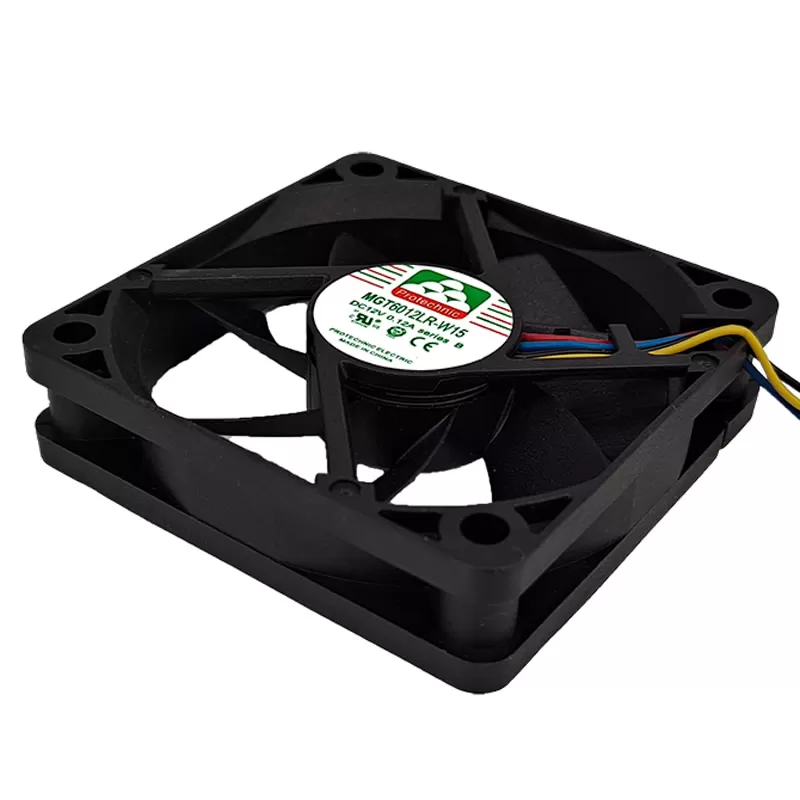

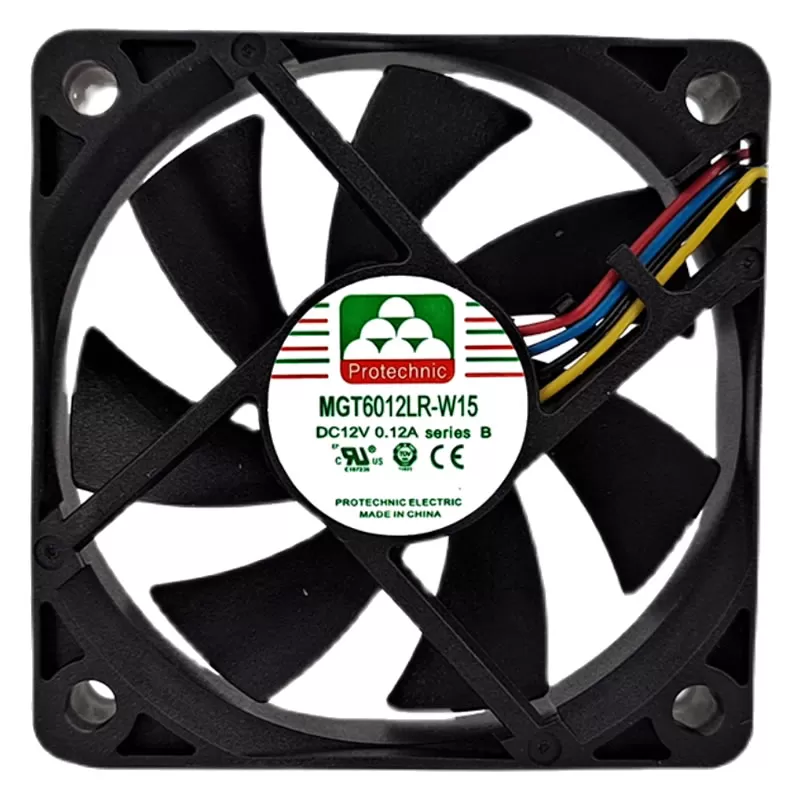

The MGT6012LR-W15 by Protechnic Electric is a compact DC axial fan designed for efficient cooling in space-constrained applications. Operating at a rated voltage of 12 VDC, it draws 0.12 A of current, consuming just 1.44 W of power while delivering a consistent 3000 RPM speed. The fan generates 0.436 m³/min (15.4 CFM) of air flow and 14.72 Pa (1.5 mmAq / 0.059 in H2O) of static pressure, making it suitable for low-to-moderate airflow requirements in compact electronic devices.

With dimensions of 60x60x15 mm and a lightweight design of 29 grams, the fan features a plastic blade and frame for durability and noise reduction, achieving a quiet operation at 19.1 dB(A). It utilizes a Rifle Bearing system, offering a service life of 40,000 hours at 60°C, and operates reliably in temperatures ranging from -10°C to 70°C (14°F to 158°F), with storage tolerance from -40°C to 70°C (5%–95% RH).

Equipped with PWM (Pulse Width Modulation) control, the fan supports adjustable speed regulation, alongside safety features like automatic restart and locked current protection, ensuring stable performance even under partial blockages. Certified by CE, TUV, and UL, it meets international safety standards for both industrial and consumer applications. Ideal for use in small electronics, control panels, and compact cooling systems, the MGT6012LR-W15 balances energy efficiency, quiet operation, and robust protection in a lightweight, space-saving design within the 60x60x15mm series.

Specifications
