Description

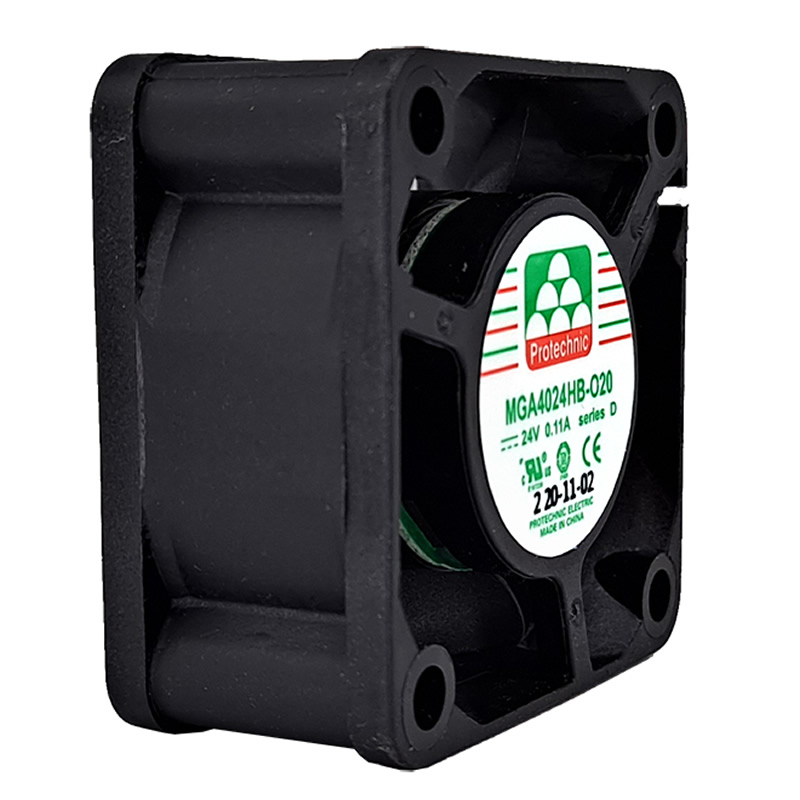

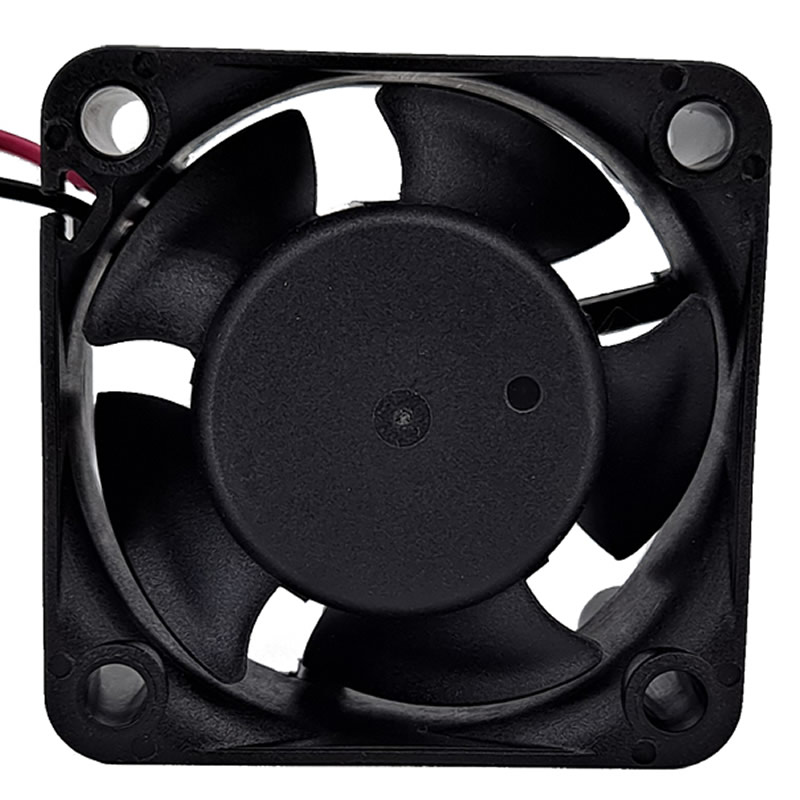

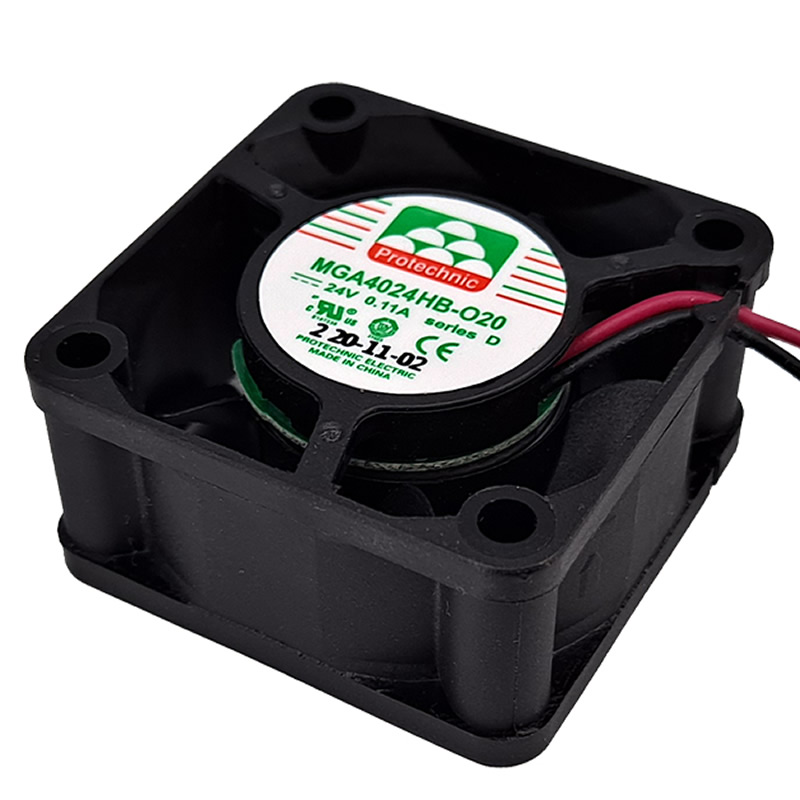

MGA4024HB-O20 Protechnic 24VDC 0.257m³/min 9.06CFM 63.77Pa 0.256inH2O 7200RPM 0.11A 2.64W 31.3dB(A) 40x40x20mm Ball Bearing 2 Wire Leads DC Axial Fan
Specifications
| Model Number | MGA4024HB-O20 |
|---|---|
| Manufacturer | Protechnic Electric |
| Fan Type | DC |
| Voltage Rating | 24 VDC |
| Air Flow CMM | 0.257 m³/min |
| Air Flow | 9.06 CFM |
| Static Pressure Pa | 63.77 Pa |
| Static Pressure mmAq | 6.5 mmAq |
| Static Pressure | 0.256 in H2O |
| Fan Speed | 7200 RPM |
| Current Rating | 0.11 A |
| Actual Current | 0.08 A |
| Power Rating | 2.64 W |
| Actual Power | 1.92 W |
| Noise Level | 31.3 dB(A) |
| Weight | 32 g |
| Dimensions | 40x40x20 mm |
| Bearing Type | Ball Bearing |
| Material Blade | Plastic |
| Material Frame | Plastic |
| Lifetime @ Temp | 40000 Hrs @ 60°C |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Storage Temperature | -40℃～70℃(5%～95% RH) |
| Approval Agency | CE, TUV, UL |
| Termination | 2 Wire Leads |
| Category | Axial Fan |
| Features | Automatic restart,locked current protection |
| series | 40*40*20mm seriesD |
| Shipping Weight | 0.125 kg |
| Product PDF | MGA4024HB-O20-Protechnic.pdf |
