Description

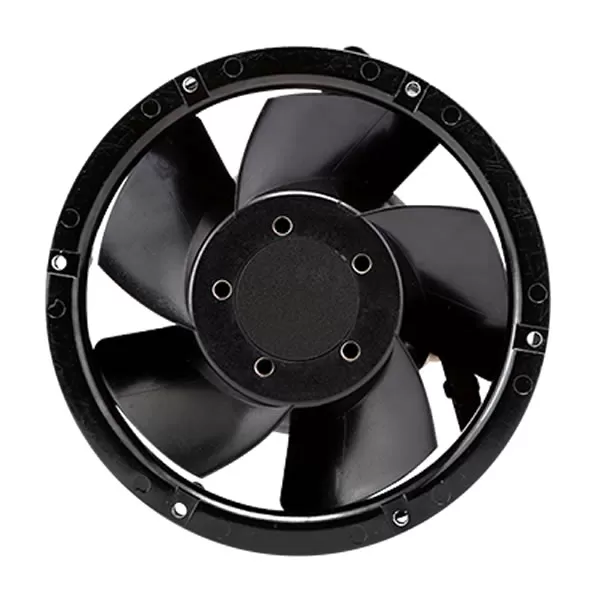

MFSE24Z3 Comair Rotron 19044008A 220.4×69.9mm 24VDC 4.50A 108W 4600RPM 530CFM 900.5m³/h 85dB(A) Ball 2.82inH2O 702Pa 4 Wire Leads Mixflow fan
Specifications
| Model Number | MFSE24Z3 |
|---|---|
| Air Flow | 530 CFM |
| Weight | 1810 g |
| Manufacturer | Comair Rotron |
| Series | Mixtus 7.9 DC |
| Dimensions | 220.4×69.9 mm |
| Voltage Rating | 24 VDC |
| Fan Type | DC |
| Operating Voltage | 16 – 32VDC |
| Current Rating | 4.50 A |
| Power Rating | 108 W |
| Fan Speed | 4600 RPM |
| Air Flow (m3) | 900.5 m³/h |
| Bearing Type | Ball Bearing |
| Part Number | 19044008A |
| Noise Level | 85 dB(A) |
| Static Pressure | 2.82 in H2O |
| Operating Temperature | -40 ~ 158°F (-40 ~ 70°C) |
| Storage Temperature | -40°C to 80°C |
| Approval Agency | CE, cUL, UL |
| Lifetime @ Temp | 70000 Hrs @ 40°C |
| Propeller | Plastic, Black, UL 94V-0 |
| Venturi | Die Cast Aluminum |
| Termination | 4 Wire Leads |
| Category | Mixflow |
| Static Pressure Pa | 702 Pa |
| Product PDF | MFSE24Z3-Comair-Rotron.pdf |
