Description

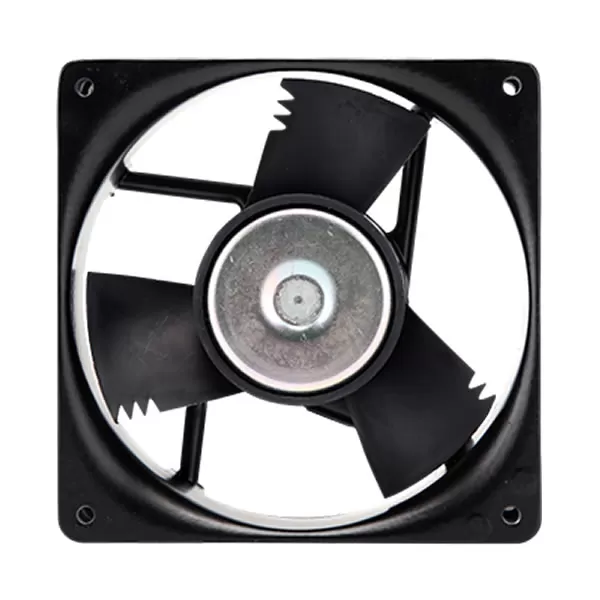

MD28B5 Comair Rotron 19032105A 120x120x39mm 28VDC 0.23A 6.5W 3100RPM 106CFM 180.1m³/h 50dB(A) Ball 0.28inH2O 69Pa 3 Wire Leads Axial DC fan
Specifications
| Model Number | MD28B5 |
|---|---|
| Air Flow | 106 CFM |
| Weight | 420 g |
| Manufacturer | Comair Rotron |
| Series | Muffin XL DC |
| Dimensions | 120x120x39 mm |
| Voltage Rating | 28 VDC |
| Fan Type | DC |
| Operating Voltage | 16-32VDC |
| Current Rating | 0.23 A |
| Power Rating | 6.5 W |
| Fan Speed | 3100 RPM |
| Air Flow (m3) | 180.1 m³/h |
| Bearing Type | Ball Bearing |
| Part Number | 19032105A |
| Noise Level | 50 dB(A) |
| Static Pressure | 0.28 in H2O |
| Operating Temperature | -40 ~ 158°F (-40 ~ 70°C) |
| Storage Temperature | -40°C to 85°C |
| Approval Agency | CE, cUL, UL |
| Lifetime @ Temp | 55000 Hrs @ 70°C |
| Propeller | Plastic, Black, UL 94V-0 |
| Venturi | Die-Cast Aluminum |
| Termination | 3 Wire Leads |
| Category | Axial DC |
| Static Pressure Pa | 69 Pa |
| Product PDF | MD28B5-Comair-Rotron.pdf |
