Description

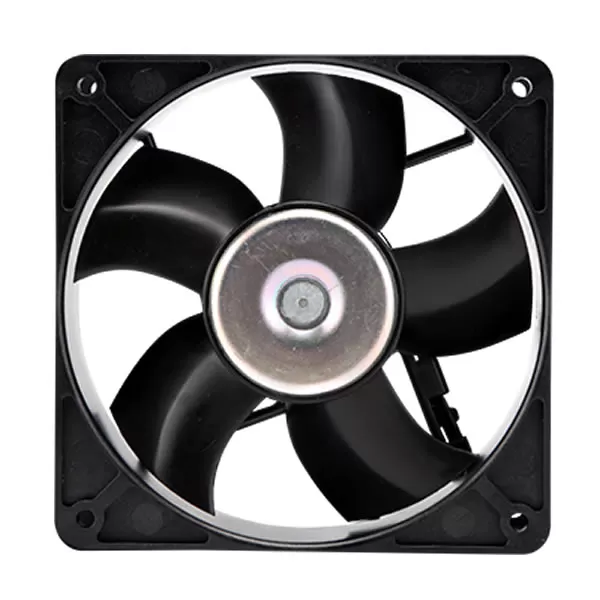

MC12B7 Comair Rotron 19030598A 120x120x32mm 12VDC 0.67A 7.9W 3700RPM 100CFM 170.0m³/h 47.8dB(A) Ball 0.39inH2O 98Pa 3 Wire Leads Axial DC fan
Specifications
| Model Number | MC12B7 |
|---|---|
| Air Flow | 100 CFM |
| Weight | 240 g |
| Manufacturer | Comair Rotron |
| Series | Muffin DC |
| Dimensions | 120x120x32 mm |
| Voltage Rating | 12 VDC |
| Fan Type | DC |
| Operating Voltage | 8 – 16VDC |
| Current Rating | 0.67 A |
| Power Rating | 7.9 W |
| Fan Speed | 3700 RPM |
| Air Flow (m3) | 170.0 m³/h |
| Bearing Type | Ball Bearing |
| Part Number | 19030598A |
| Noise Level | 47.8 dB(A) |
| Static Pressure | 0.39 in H2O |
| Operating Temperature | -40 ~ 158°F (-40 ~ 70°C) |
| Storage Temperature | -40°C to 85°C |
| Approval Agency | CE, cUL, UL |
| Lifetime @ Temp | 45000 Hrs @ 70°C |
| Propeller | Plastic, Black, UL 94V-0 |
| Venturi | Plastic, Black, UL 94V-0 |
| Termination | 3 Wire Leads |
| Category | Axial DC |
| Static Pressure Pa | 98 Pa |
| Product PDF | MC12B7-Comair-Rotron.pdf |
