Description

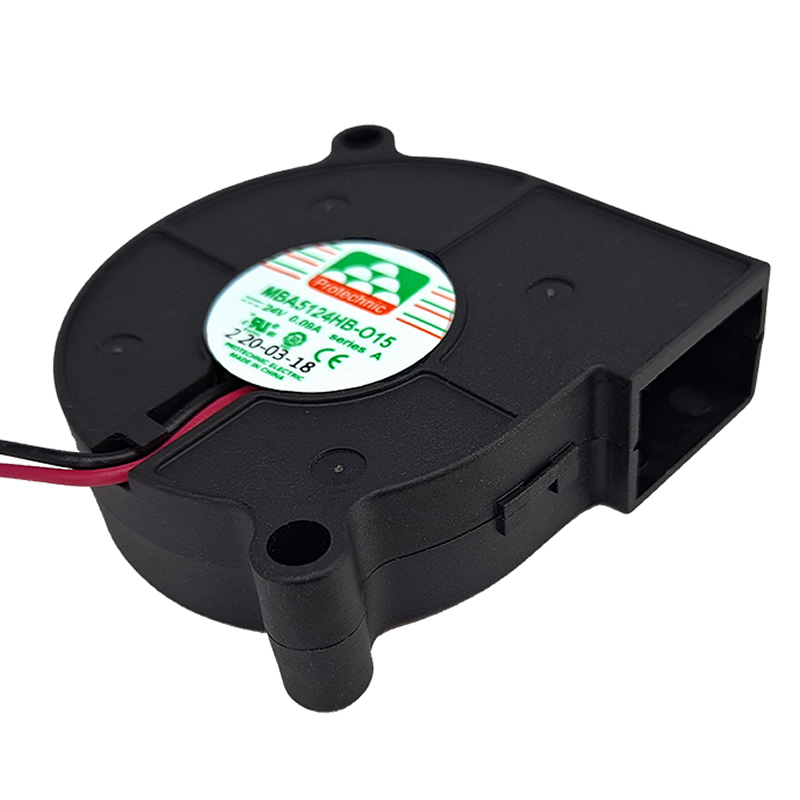

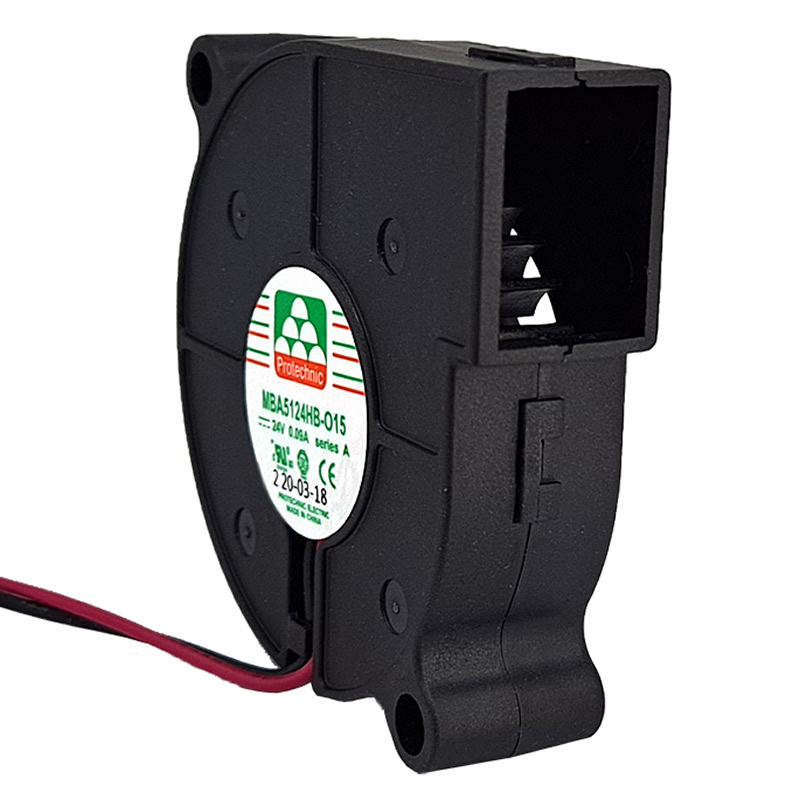

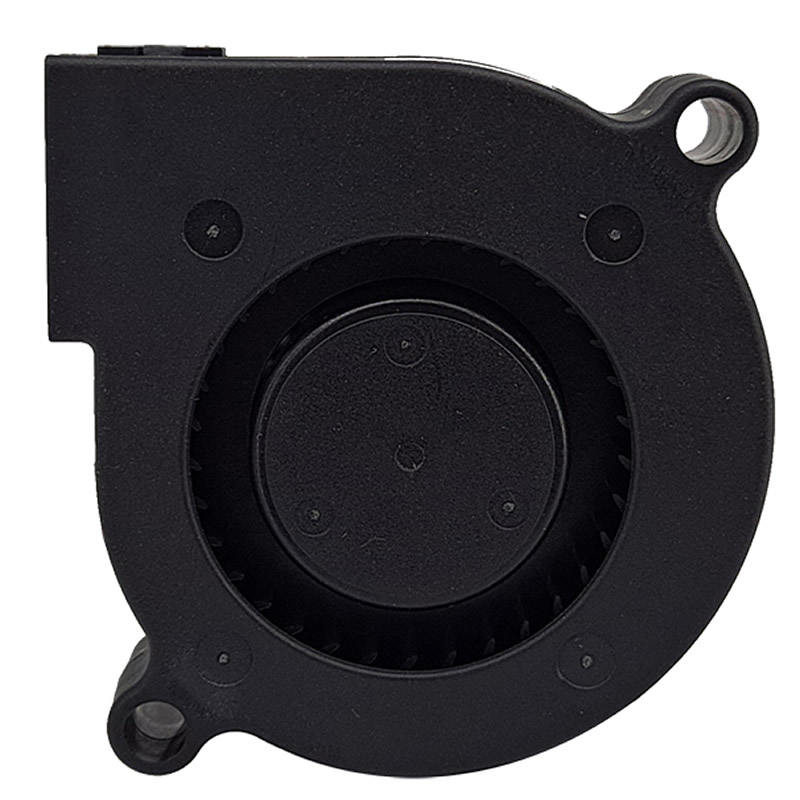

MBA5124HB-O15 Protechnic 24VDC 0.112m³/min 3.95CFM 0.521inH2O 5500RPM 0.09A 2.16W 42.7dB(A) 51x51x46mm Ball Bearing 2 Wire Leads DC Blower
Specifications
| Model Number | MBA5124HB-O15 |
|---|---|
| Manufacturer | Protechnic Electric |
| Fan Type | DC |
| Voltage Rating | 24 VDC |
| Air Flow CMM | 0.112 m³/min |
| Air Flow | 3.95 CFM |
| Static Pressure mmAq | 13.24 mmAq |
| Static Pressure | 0.521 in H2O |
| Fan Speed | 5500 RPM |
| Current Rating | 0.09 A |
| Actual Current | 0.07 A |
| Power Rating | 2.16 W |
| Actual Power | 1.68 W |
| Noise Level | 42.7 dB(A) |
| Weight | 27 g |
| Dimensions | 51x51x46 mm |
| Bearing Type | Ball Bearing |
| Material Blade | Plastic |
| Material Frame | Plastic |
| Lifetime @ Temp | 40000 Hrs @ 60°C |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Storage Temperature | -40℃～70℃(5%～95% RH) |
| Approval Agency | CE, TUV, UL |
| Termination | 2 Wire Leads |
| Category | Blower |
| Features | Automatic restart,locked current protection |
| series | 51x51x15mm series B |
| Shipping Weight | 0.125 kg |
| Product PDF | MBA5124HB-O15-Protechnic.pdf |
