Description

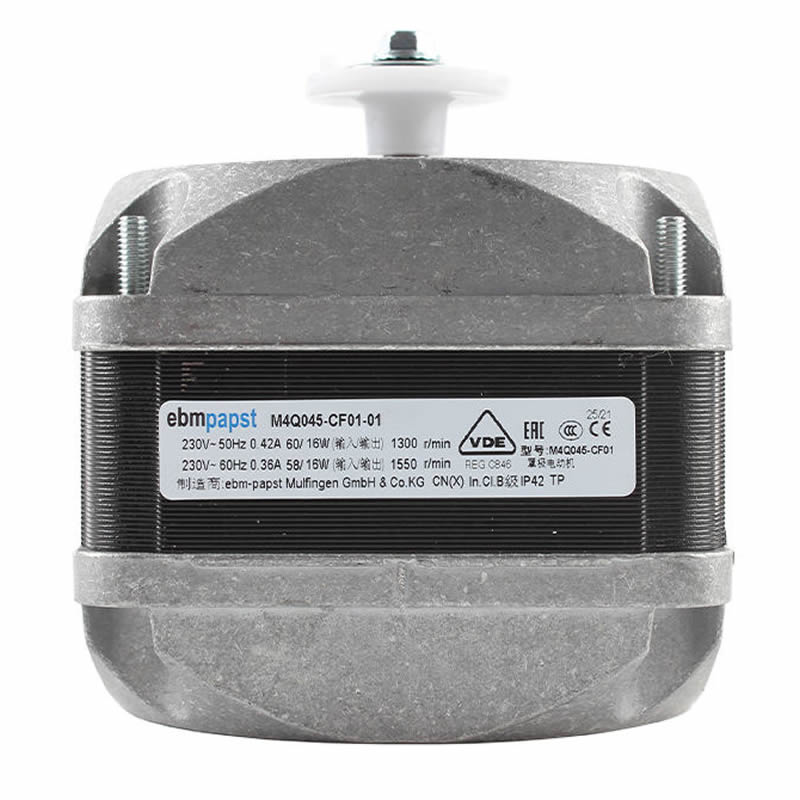

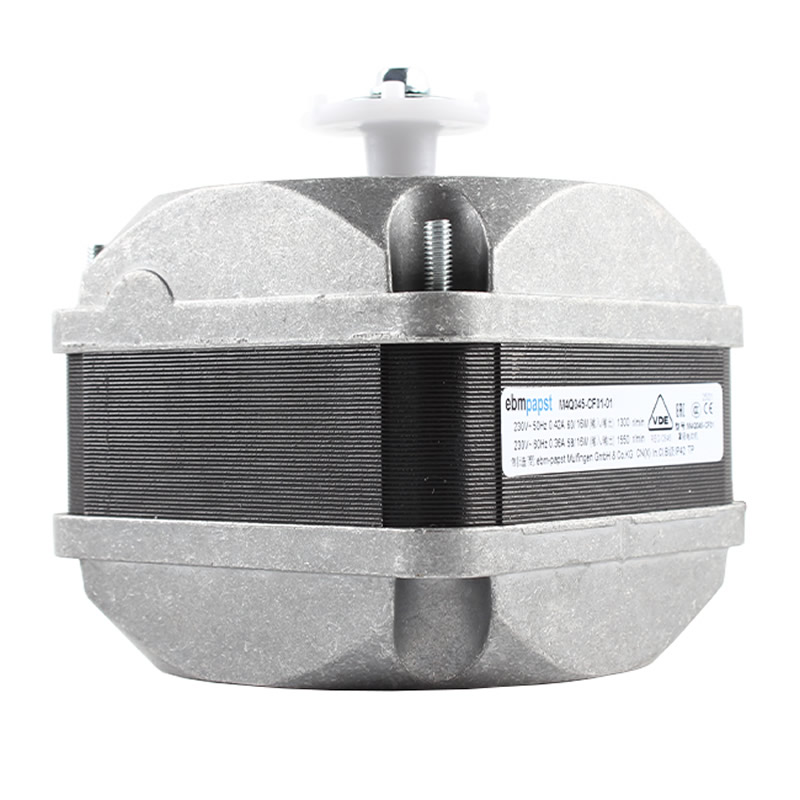

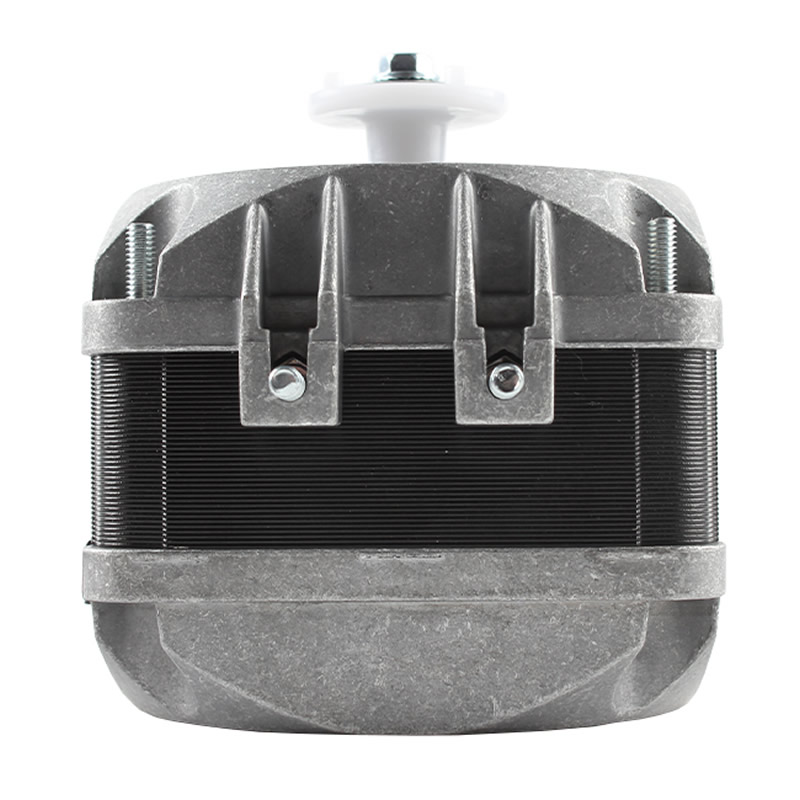

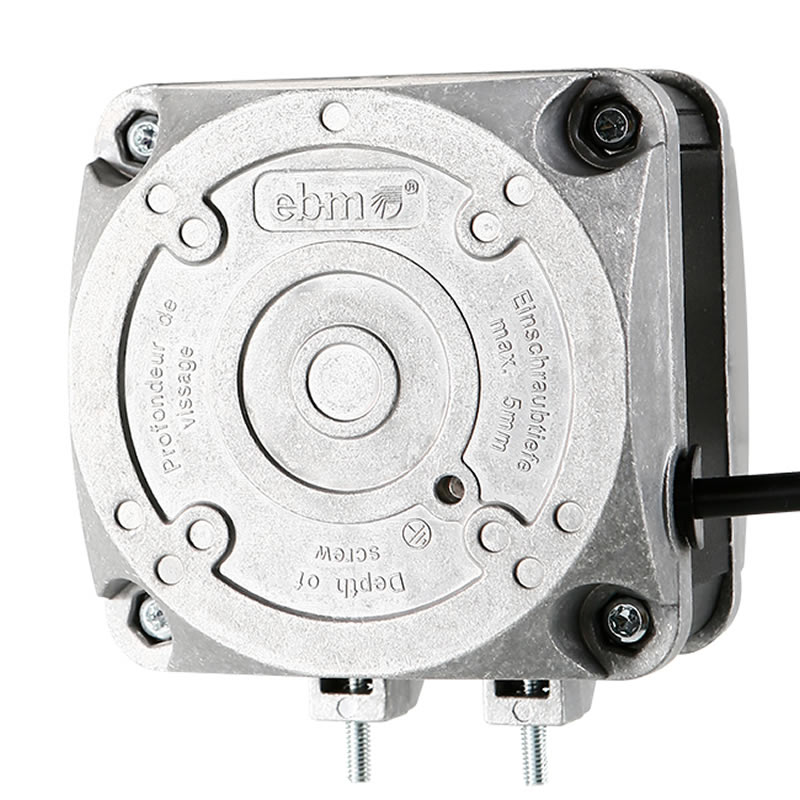

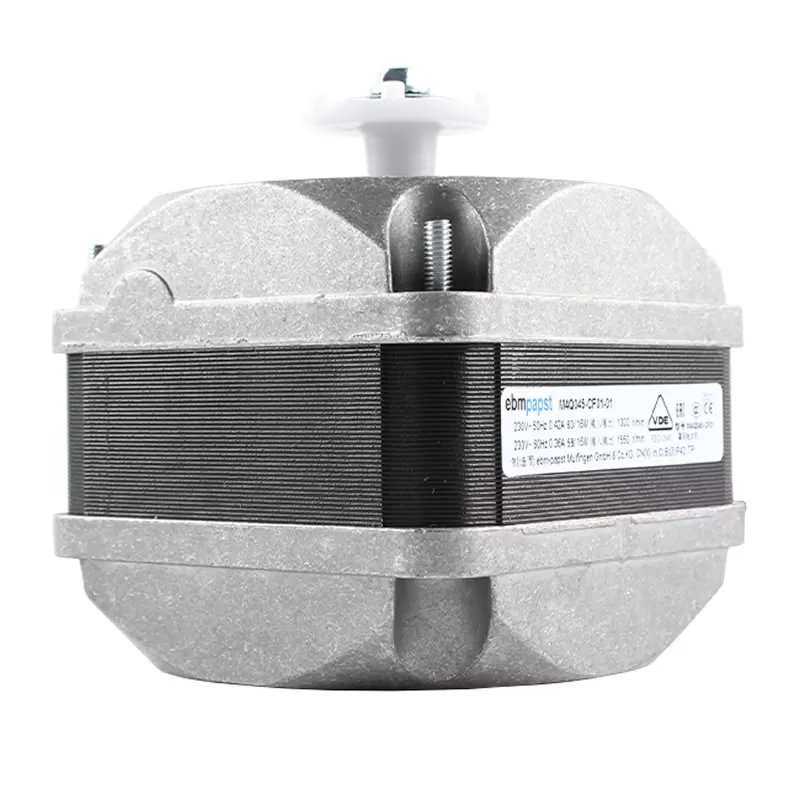

The ebmpapst M4Q045-CF01-01 is a compact AC motor designed for reliable operation in fan and ventilation equipment. As part of the ebmpapst Q-Motors series, this motor provides stable performance, robust mechanical construction and dependable operation for OEM applications requiring a proven AC motor solution.
The M4Q045-CF01-01 operates with a 230 VAC single-phase power supply and supports both 50Hz and 60Hz frequency operation. With a rated output power of 16 W, this AC motor delivers consistent speed performance of 1300 min⁻¹ at 50Hz and 1550 min⁻¹ at 60Hz, making it suitable for integration into compatible fan assemblies and air movement systems.
Designed for long-term operation, the ebmpapst M4Q045-CF01-01 features a compact motor construction, die-cast aluminum bearing shield and calotte bearing system. The integrated thermal overload protector provides additional motor protection, supporting reliable operation in ventilation and cooling applications.
Key Features
- Original ebmpapst M4Q045-CF01-01 AC motor
- Part of the ebmpapst Q-Motors series
- Single-phase 230 VAC motor design
- 50Hz / 60Hz frequency operation
- 16 W rated output power
- 1300 min⁻¹ speed at 50Hz
- 1550 min⁻¹ speed at 60Hz
- Compact construction for fan integration
- Calotte bearing system
- Thermal overload protector internally connected
- Suitable for fan, ventilation and air circulation equipment
Technical Specifications
| Brand | ebmpapst |
| Model | M4Q045-CF01-01 |
| Motor | M4Q045-CF |
| Product Type | AC Motor |
| Phase | 1~ |
| Nominal Voltage | 230 VAC |
| Frequency | 50Hz / 60Hz |
| Speed | 1300 / 1550 min⁻¹ |
| Power Consumption | 60 W / 58 W |
| Power Output | 16 W |
| Current Draw | 0.42 A / 0.36 A |
| Starting Current | 0.58 A / 0.50 A |
| Weight | 1.3 kg |
| Motor Size | 45 |
| Bearing | Calotte Bearing |
| Bearing Shield Material | Die-cast Aluminum |
| Direction of Rotation | Counterclockwise, viewed toward rotor |
| Degree of Protection | IP42; installation- and position-dependent |
| Insulation Class | B |
| Operating Mode | S1 |
| Motor Protection | Thermal overload protector (TOP) internally connected |
| Ambient Temperature | -30°C to +40°C |
Applications
The ebmpapst M4Q045-CF01-01 AC motor is designed for use in a wide range of ventilation and air movement applications, including:
- Fan assemblies
- Ventilation equipment
- Air circulation systems
- Cooling equipment
- OEM industrial equipment
- Replacement applications for compatible AC motor systems
Replacement Information
The ebmpapst M4Q045-CF01-01 is an original AC motor intended for integration into compatible fan and ventilation systems. When selecting a replacement motor, confirm key specifications including voltage, frequency, speed, mounting configuration, rotation direction and electrical characteristics to ensure compatibility.
Specifications
| Model Number | M4Q045-CF01-01 |
|---|---|
| Manufacturer | ebmpapst |
| Fan Type | AC |
| Bearing Type | Sleeve Bearing |
| Dimensions | 45 mm |
| Voltage Rating | 230 VAC |
| Power Rating | 58 W |
| Current Rating | 0.42 A |
| Fan Speed | 1550 RPM |
| Termination | Leads |
| Category | Axial |
| IP Rating | IP42 |
| Series | M4Q045 |
| RoHS Status | ROHS3 Compliant |
| Air Flow CMH | 829 m³/h |
| Operating Temperature | -22 ~ 104°F (-30 ~ 40°C) |
| Subcategory | AC motor |
| Shipping Weight | 2 kg |
| Technical Specifications | M4Q045-CF01-01-ebmpapst.pdf |
