M4Q045-BD01-01 ebmpapst

Description

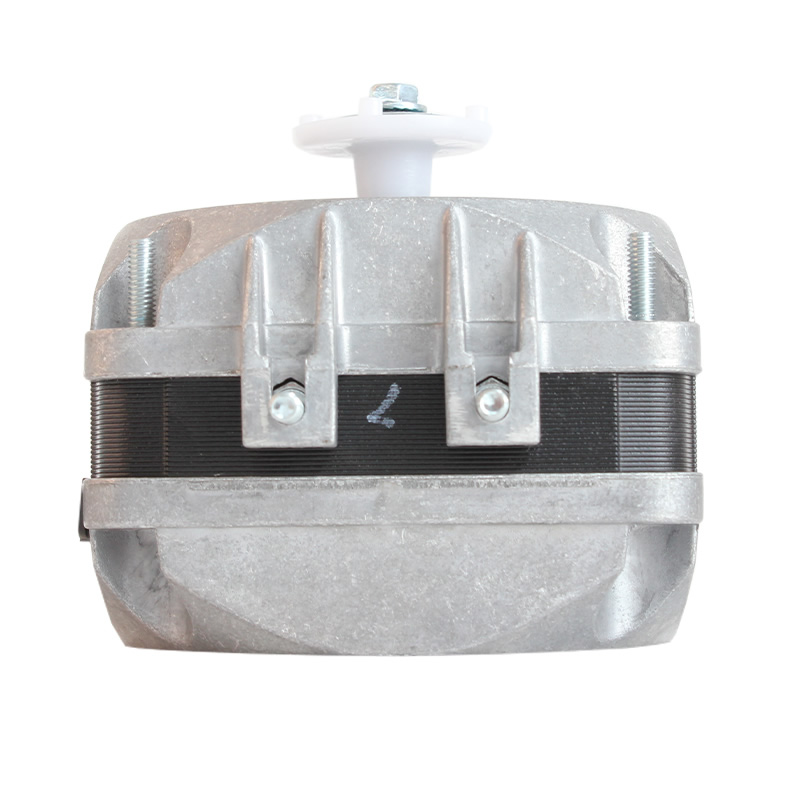

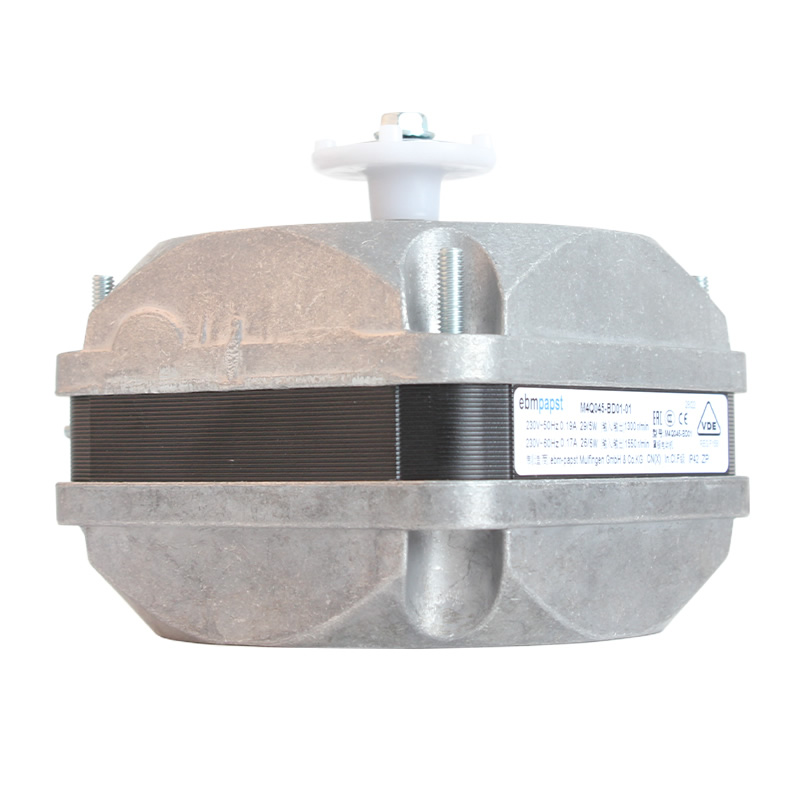

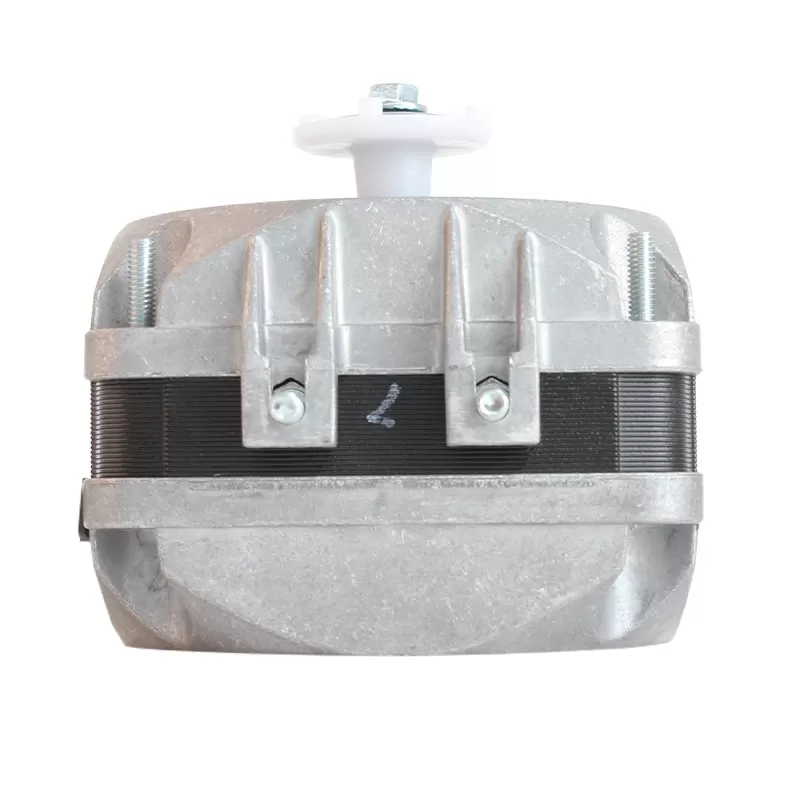

M4Q045-BD01-01 ebmpapst 230VAC 0.19A motor

The M4Q045-BD01-01 from ebm-papst is a robust and versatile single-phase AC shaded-pole motor, often referred to as a Q-motor or fan motor. Designed for a variety of applications, it is commonly utilized in refrigeration, ventilation systems, and condenser units.

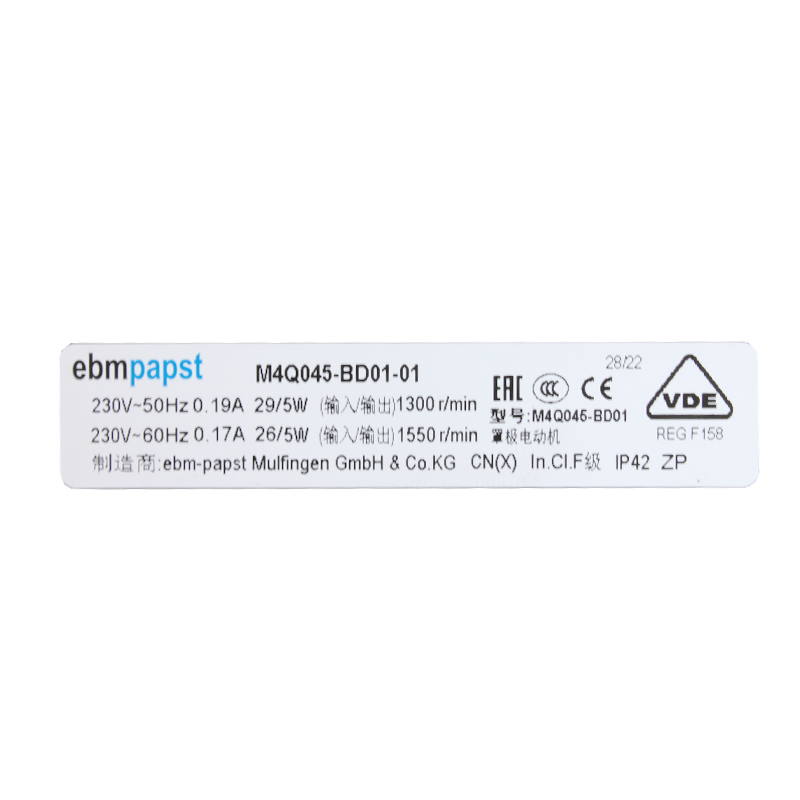

This motor operates at a nominal voltage of 230VAC and is compatible with both 50Hz and 60Hz frequencies. At 50Hz, it typically delivers a speed of 1300 RPM with a current draw of approximately 0.19A and an input power of 29W, resulting in a 5W output power. When operating at 60Hz, the speed increases to around 1550 RPM, with a slightly lower current draw of 0.17A and an input power of 26W, while maintaining a 5W output.

Key features of the M4Q045-BD01-01 include its counter-clockwise direction of rotation (viewed from the rotor end) and an IP42 rating, offering protection against solid objects larger than 1mm and dripping water. The motor is designed to operate reliably within an ambient temperature range of -30°C to 40°C. It typically features a calotte bearing or sleeve bearing system and has an insulation class of “B”. The motor incorporates impedance protection and has a net weight of approximately 0.85 kg. With its die-cast aluminum bearing shield, the M4Q045-BD01-01 is built for durability and consistent performance in demanding environments.

Specifications
