Description

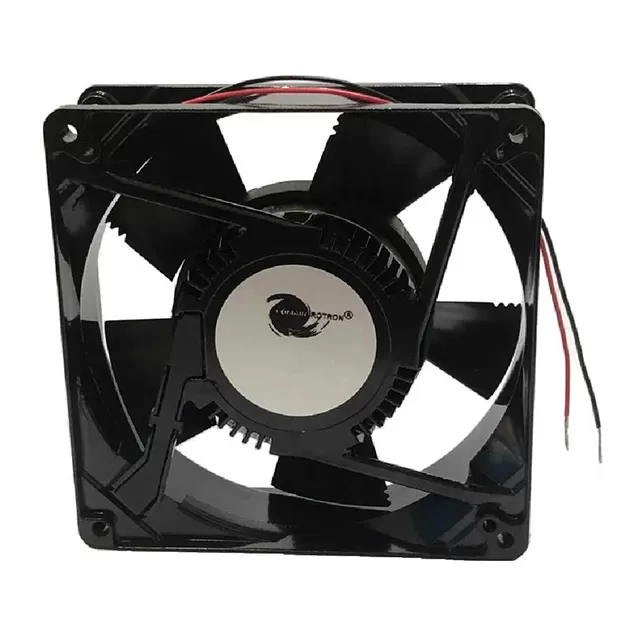

GL24K3 Comair Rotron 19039151A 127x127x38mm 24VDC 0.95A 22.8W 3900RPM 175CFM 297.3m³/h 57.9dB(A) Ball 0.68inH2O 169Pa 2 Wire Leads Axial DC fan
Specifications
| Model Number | GL24K3 |
|---|---|
| Air Flow | 175 CFM |
| Weight | 620 g |
| Manufacturer | Comair Rotron |
| Series | Galaxy DC |
| Dimensions | 127x127x38 mm |
| Voltage Rating | 24 VDC |
| Fan Type | DC |
| Operating Voltage | 12 – 28VDC |
| Current Rating | 0.95 A |
| Power Rating | 22.8 W |
| Fan Speed | 3900 RPM |
| Air Flow (m3) | 297.3 m³/h |
| Bearing Type | Ball Bearing |
| Part Number | 19039151A |
| Noise Level | 57.9 dB(A) |
| Static Pressure | 0.68 in H2O |
| Operating Temperature | -40 ~ 158°F (-40 ~ 70°C) |
| Storage Temperature | -40°C to 85°C |
| Approval Agency | CE, cUL, UL |
| Lifetime @ Temp | 60000 Hrs @ 70°C |
| Propeller | Plastic, Black, UL 94V-0 |
| Venturi | Die Cast Aluminum |
| Termination | 2 Wire Leads |
| Category | Axial DC |
| Static Pressure Pa | 169 Pa |
| Product PDF | GL24K3-Comair-Rotron.pdf |
