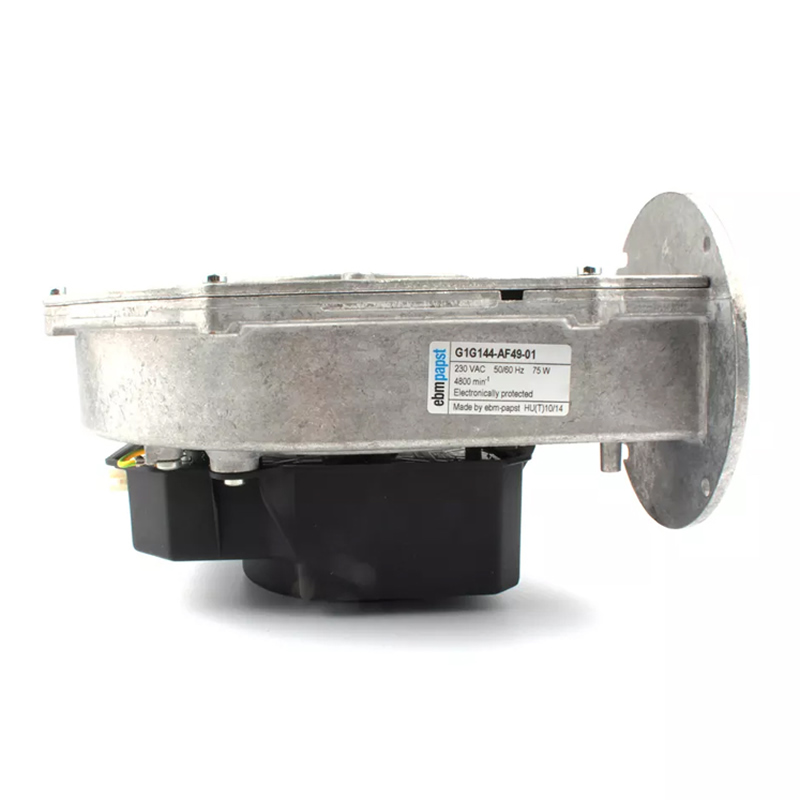

G1G144-AF49-01 ebmpapst 144mm 230VAC 75W 0.5A 4800RPM IP20 EC Centrifugal Blower

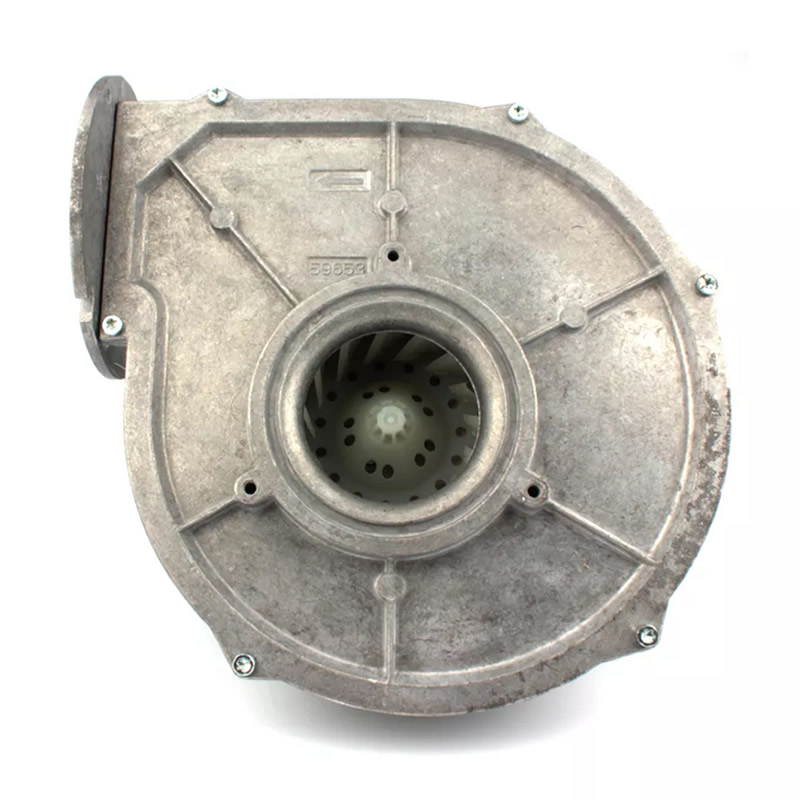

G1G144-AF49-01 is a high-performance 144mm EC centrifugal blower, equipped with an M1G055-BD motor, designed for single-phase 230V AC (50/60Hz) applications. It achieves a high speed of 4800 RPM with a power of 75W and a current of 0.5A, effectively providing required airflow and static pressure in confined spaces. The main structure of the blower utilizes die-cast aluminum with a durable plastic impeller, making the unit compact and weighing approximately 1.9kg. It features IP20 protection and Class “B” insulation, with built-in reverse polarity and locked-rotor protection for reliable operation. This blower can function stably within an ambient temperature range of -25°C to 70°C, and enables precise control and speed monitoring (providing tachometer output) through EC technology.
Specifications
| Model | G1G144-AF49-01 |
|---|---|
| Manufacturer | ebm-papst |
| Motor | M1G055-BD |
| Dimensions | 144 mm |
| Voltage Rating | 230 VAC |
| Frequency | 50/60 Hz |
| Phase | 1~ |
| Power Rating | 75 W |
| Current Rating | 0.5 A |
| Fan Speed | 4800 RPM |
| IP Rating | IP20 |
| Subcategory | EC centrifugal fan |
