Description

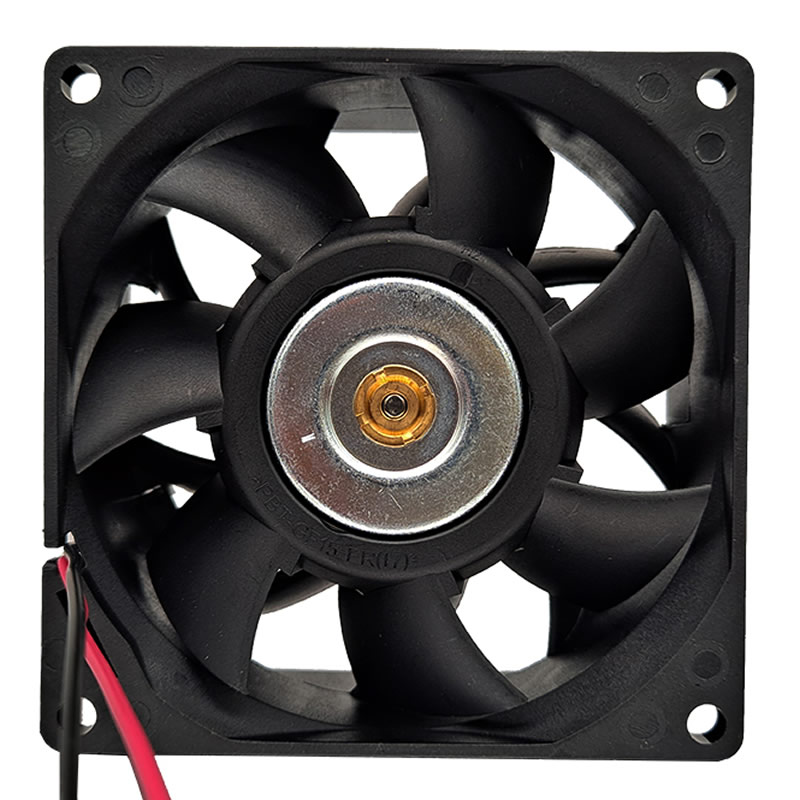

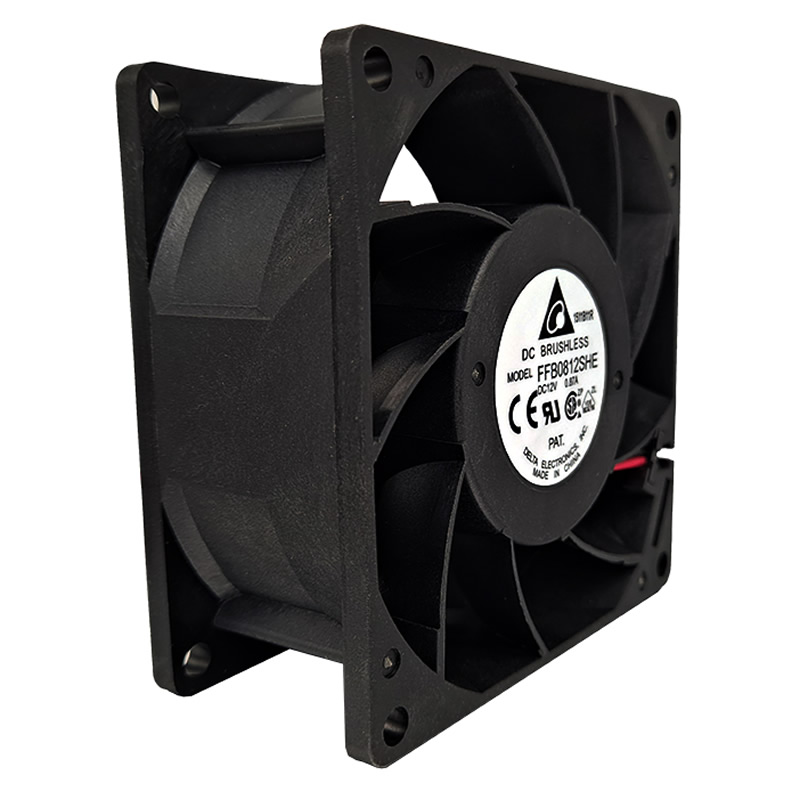

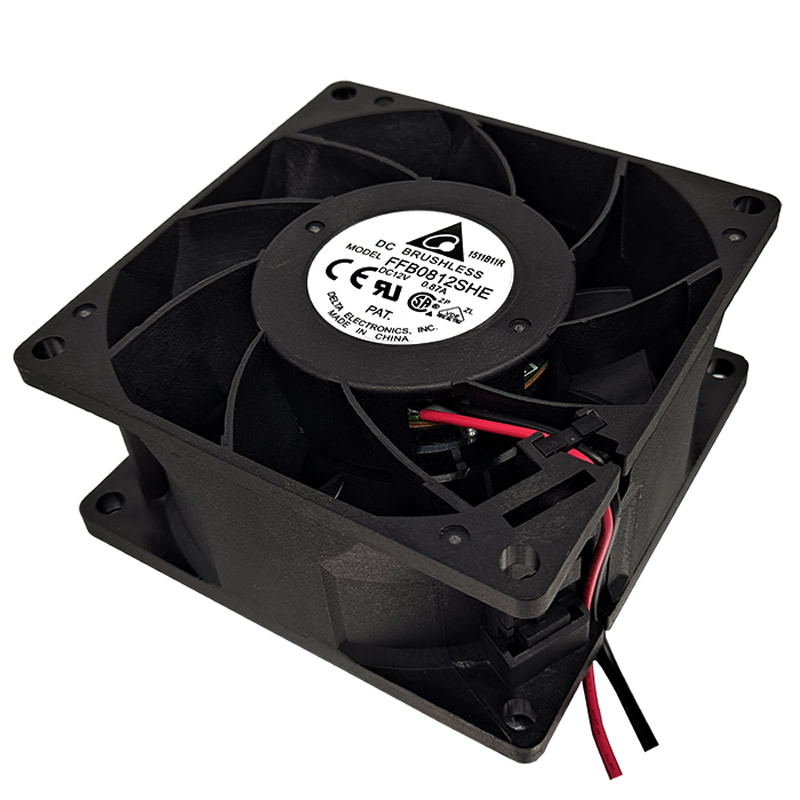

FFB0812SHE Delta 80x80x38mm Ball 12VDC 68.51CFM(1.940m3/min) 0.591inchH2O(15.01mmH2O) 48.5dB(A) 6.96W 4900RPM 2wireleads fan
Specifications
| Part Number | FFB0812SHE |
|---|---|
| Fan Type | DC |
| Approval Agency | CE, CSA, UL, VDE |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Features | Locked Rotor Protection |
| Series | FFB |
| Air Flow (m3) | 1.940 m3/min |
| Dimensions | 80x80x38 mm |
| Termination | 2 wire leads |
| Manufacturer | Delta Electronics |
| Fan Speed | 4900 RPM |
| Power Rating | 6.96 W |
| Noise Level | 48.5 dB(A) |
| Static Pressure | 0.591 inchH2O (15.01 mmH2O) |
| Air Flow | 68.51 CFM |
| Voltage Rating | 12 VDC |
| Bearing Type | Ball Bearing |
| Weight | 0.375 lb (170.1 g) |
| Category | Axial |
| Current Rating | 0.58 A |
| Operating Voltage | 7 ~ 13.8 VDC |
| Material Frame | Plastic |
| Material Blade | Plastic |
| Lifetime @ Temp | 70000 Hrs @ 40⁰C |
| Shipping Weight | 0.25 kg |
| Product PDF | FFB0812SHE-Delta.pdf |
