Description

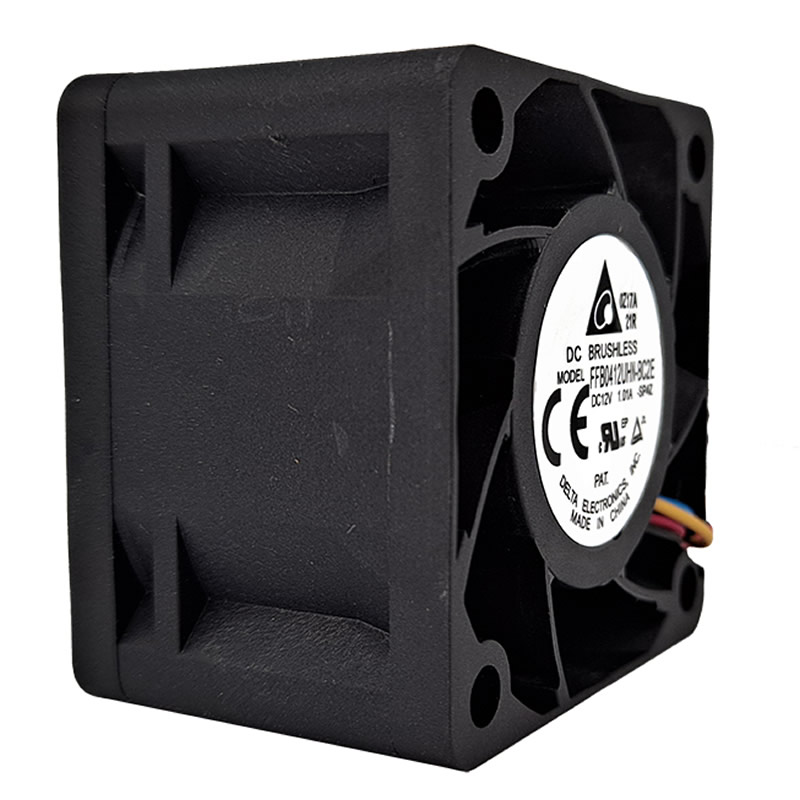

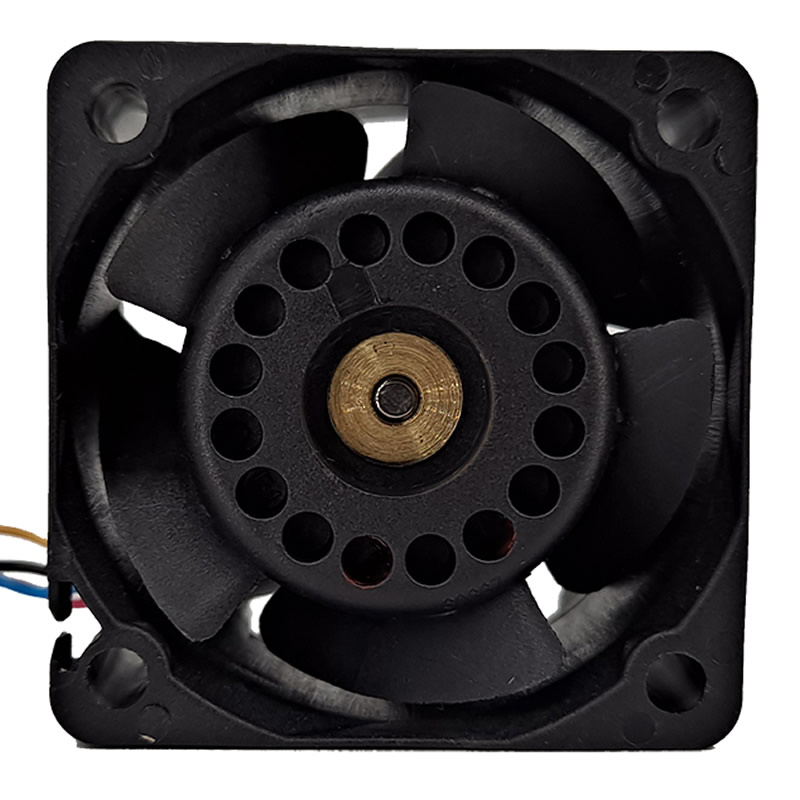

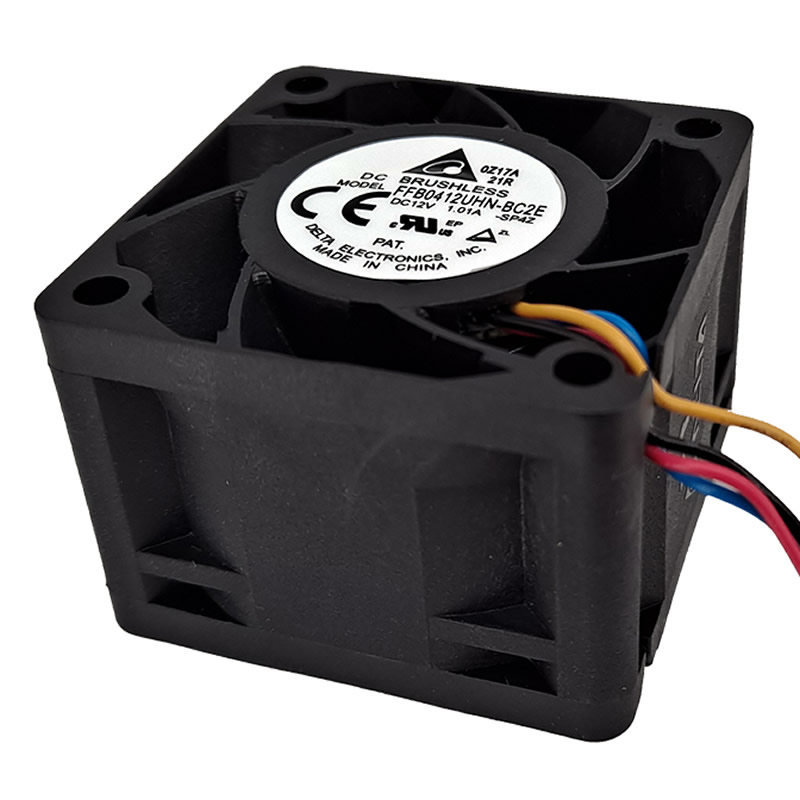

FFB0412UHN-SP4Z Delta 40x40x28mm Ball 12VDC 26.55CFM(0.751m3/min) 3.15inchH2O(80mmH2O) 59.9dB(A) 10.08W 23000RPM 4wireleads fan
FFB0412UHN-BC2E-SP4Z
FFB0412UHN-BC2E
Specifications
| Model | FFB0412UHN-SP4Z |
|---|---|
| Manufacturer | Delta Electronics |
| Dimensions | 40x40x28 mm |
| Power Rating | 10.08 W |
| Approval Agency | CE, CSA, UL, VDE |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Features | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) |
| Series | FFB |
| Air Flow (m3) | 0.751 m3/min |
| Termination | 4 wire leads |
| Fan Speed | 23000 RPM |
| Fan Type | DC |
| Static Pressure | 3.15 inchH2O (80 mmH2O) |
| Noise Level | 59.9 dB(A) |
| Air Flow | 26.55 CFM |
| Voltage Rating | 12 VDC |
| Bearing Type | Ball Bearing |
| Weight | 0.115 lb (52.16 g) |
| Category | Axial |
| Current Rating | 1.01 A |
| Operating Voltage | 7 ~ 13.2 VDC |
| Material Frame | Plastic |
| Material Blade | Plastic |
| Lifetime @ Temp | 70000 Hrs @ 40⁰C |
| Number of blades | 5 |
| Subcategory | DC axial fan |
| Shipping Weight | 0.25 kg |
| Product PDF | FFB0412UHN-SP4Z-Delta.pdf |
