Description

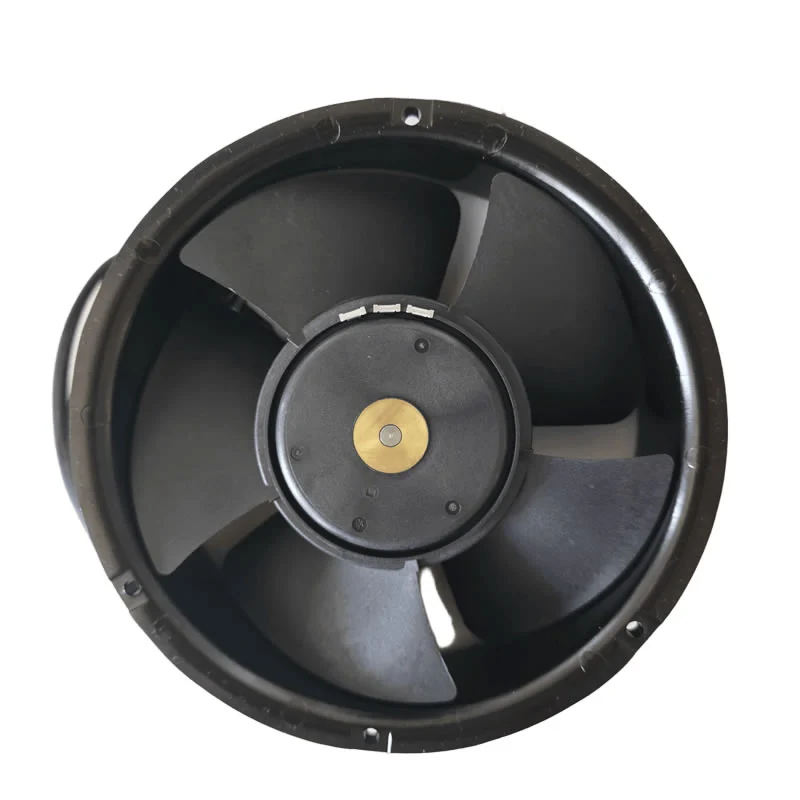

The Ericsson BKV301216/130 Fan Unit is a 48V DC axial cooling fan assembly designed for Ericsson telecom equipment, including outdoor base station cabinets and communication infrastructure systems. As an original Ericsson part number, BKV301216/130 is widely used as an external fan unit for Ericsson RBS equipment requiring reliable continuous cooling performance.
The BKV301216/130 Fan Unit features a high-performance 48V DC axial fan design with a Ø172 x 51 mm fan dimension, 4-wire electrical interface, PWM speed control, tachometer feedback, alarm monitoring, and waterproof connector. It is designed for demanding telecom environments where stable airflow, long service life, and intelligent fan monitoring are required.
Multiple professional thermal management manufacturers produce compatible fan solutions for the Ericsson BKV301216/130 specification, including ebmpapst 6318/19HPU, Delta EHB1748EHG, and Nidec Y17L48BS2AA5-09E02. These models use different manufacturer part numbers while serving the same Ericsson telecom cooling application.
Key Features
- Original Ericsson part number: BKV301216/130
- Fan Unit for Ericsson telecom equipment
- 48V DC axial cooling fan
- Ø172 x 51 mm fan dimension
- 4-wire control interface
- PWM speed control
- Tachometer feedback signal
- Fan alarm monitoring
- Waterproof connector
- Brushless DC motor
- Long-life bearing system
- Designed for continuous telecom operation
Technical Specifications
| Manufacturer | Ericsson |
| Part Number | BKV301216/130 |
| Product Name | Fan Unit |
| Product Type | DC Axial Fan |
| Application | Ericsson Telecom Equipment Cooling |
| Voltage | 48 VDC |
| Dimension | Ø172 x 51 mm |
| Wire Configuration | 4 Wire |
| Control | PWM Speed Control |
| Feedback | Tachometer / FG Signal |
| Connector | Waterproof Connector |
| Motor | Brushless DC Motor |
| Bearing | Ball Bearing |
Compatible Fan Models
The Ericsson BKV301216/130 Fan Unit is commonly associated with the following compatible manufacturer models:
| Manufacturer | Model |
| ebmpapst | 6318/19HPU |
| Delta Electronics | EHB1748EHG |
| Nidec | Y17L48BS2AA5-09E02 |
Applications
- Ericsson RBS outdoor cabinets
- Telecom base stations
- Wireless communication systems
- Network equipment cooling
- Industrial communication infrastructure
Replacement Information
When replacing an Ericsson BKV301216/130 Fan Unit, confirm the complete specifications including voltage, fan size, connector type, wire configuration, PWM control compatibility, airflow performance, and alarm feedback interface.
Specifications
| Fan Size | Ø 172 x 51 mm |
|---|---|
| Voltage Rated | 48 VDC |
| Cooling Type | Axial Fan |
| Shipping Weight | 1 kg |
