Description

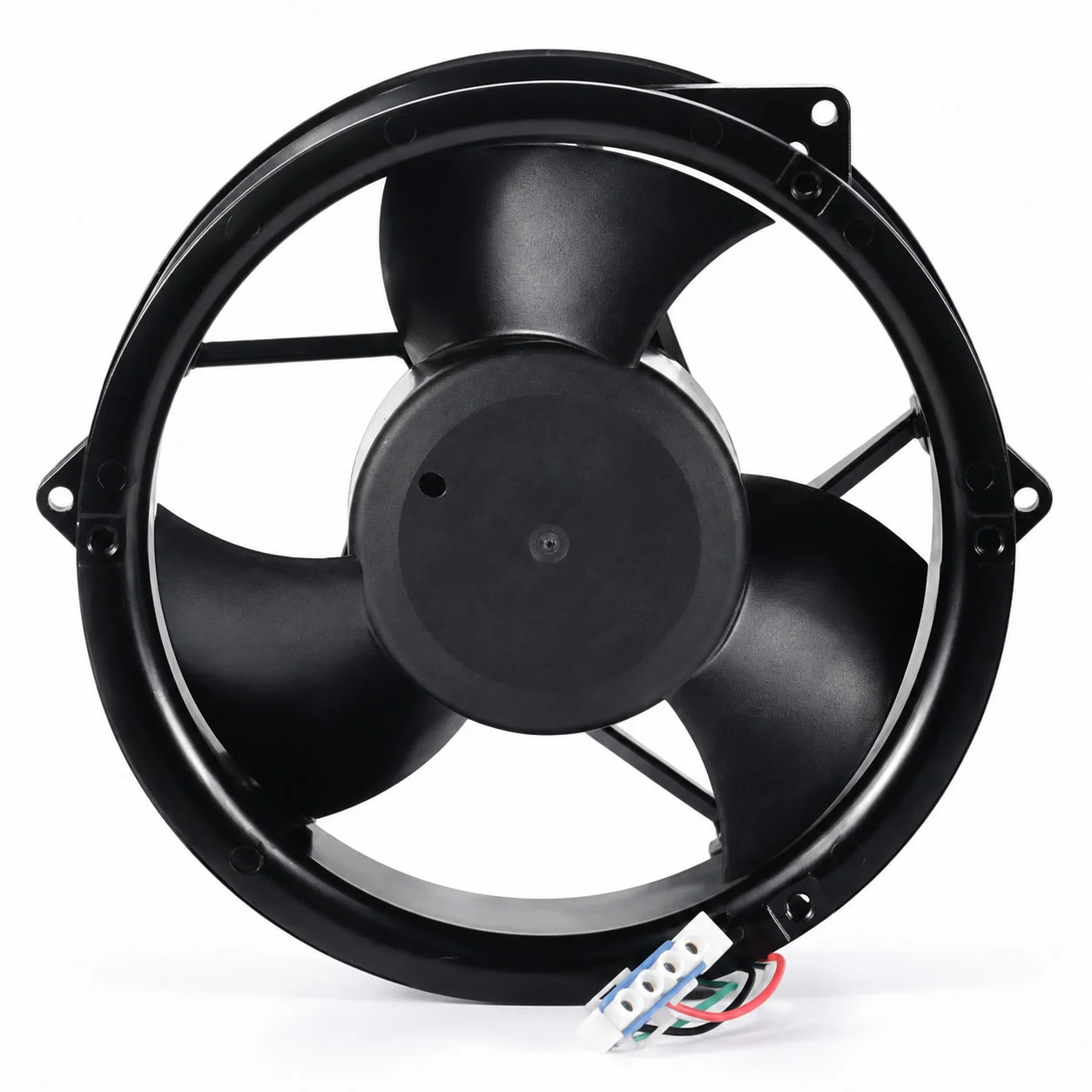

The Delta EHB1748EHG-BA99 is a high-performance 48V DC brushless axial fan manufactured by Delta Electronics. Designed for demanding thermal management applications, this industrial cooling fan provides reliable airflow, PWM speed control, and alarm monitoring capability for telecom equipment, networking systems, and electronic cooling applications.
The EHB1748EHG-BA99 features a compact Ø172 x 51 mm axial fan design with a high-efficiency brushless DC motor. The fan operates at 48VDC with a rated current of 1.44A, delivering reliable cooling performance for continuous-duty industrial environments.
This Delta fan model is also identified on some equipment assemblies as part of the Ericsson BKV301216/130 Fan Unit. The Ericsson reference represents an OEM equipment application, while EHB1748EHG-BA99 is the Delta manufacturer model number for the fan itself.
Key Features
- Original Delta EHB1748EHG-BA99 DC axial fan
- 48V DC brushless motor design
- Ø172 x 51 mm compact fan size
- 4-wire electrical connection
- PWM speed control input
- Alarm output signal
- High reliability telecom cooling solution
- Designed for continuous operation applications
Technical Specifications
| Brand | Delta Electronics |
| Model | EHB1748EHG-BA99 |
| Product Type | DC Axial Fan |
| Rated Voltage | 48 VDC |
| Rated Current | 1.44 A |
| Power Consumption | 69.1 W |
| Dimension | Ø172 x 51 mm |
| Motor Type | Brushless DC Motor |
| Control | PWM Speed Control |
| Alarm Function | Alarm Output |
| Wire Configuration | 4 Wire |
Electrical Connection
| Red Wire | +48V DC Power |
| Blue Wire | DC Ground |
| Green Wire | PWM Control |
| White Wire | Alarm Signal |
Applications
- Telecommunication equipment cooling
- Ericsson BKV301216/130 fan unit replacement
- Network communication systems
- Industrial control equipment
- Electronic cabinet cooling
- Power equipment thermal management
Replacement Information
The Delta EHB1748EHG-BA99 is a manufacturer-specific 48V DC axial cooling fan model. This fan is associated with the Ericsson BKV301216/130 Fan Unit application. When replacing this model, verify voltage, dimensions, connector type, wiring configuration, PWM control compatibility, and alarm feedback requirements.
Specifications
| Manufacturer | Delta Electronics |
|---|---|
| Fan Size | Ø 172 x 51 mm |
| Voltage Rated | 48 VDC |
| Cooling Type | Axial Fan |
| Shipping Weight | 1 kg |
