Description

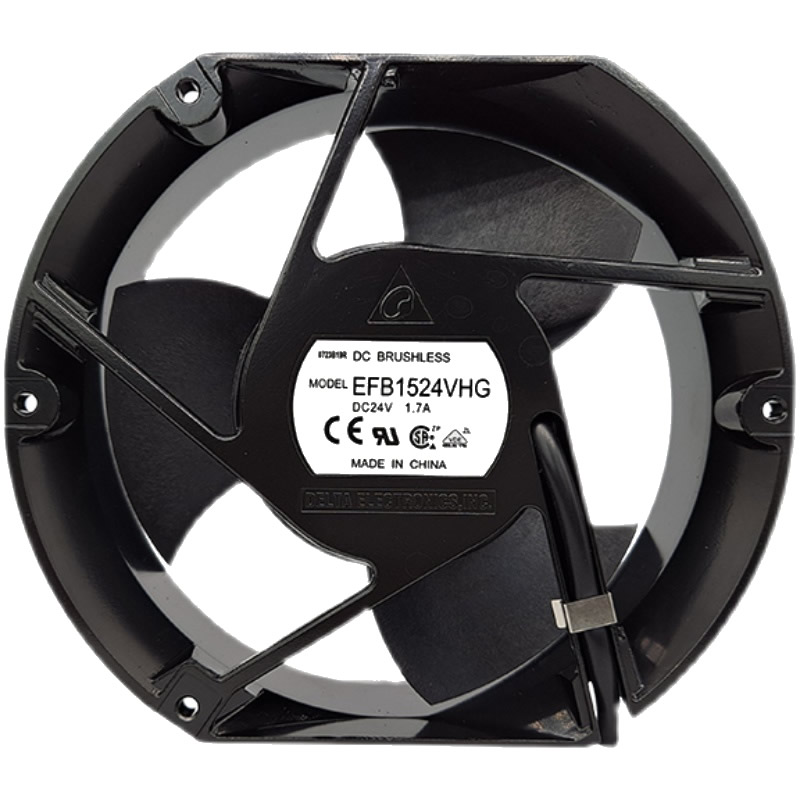

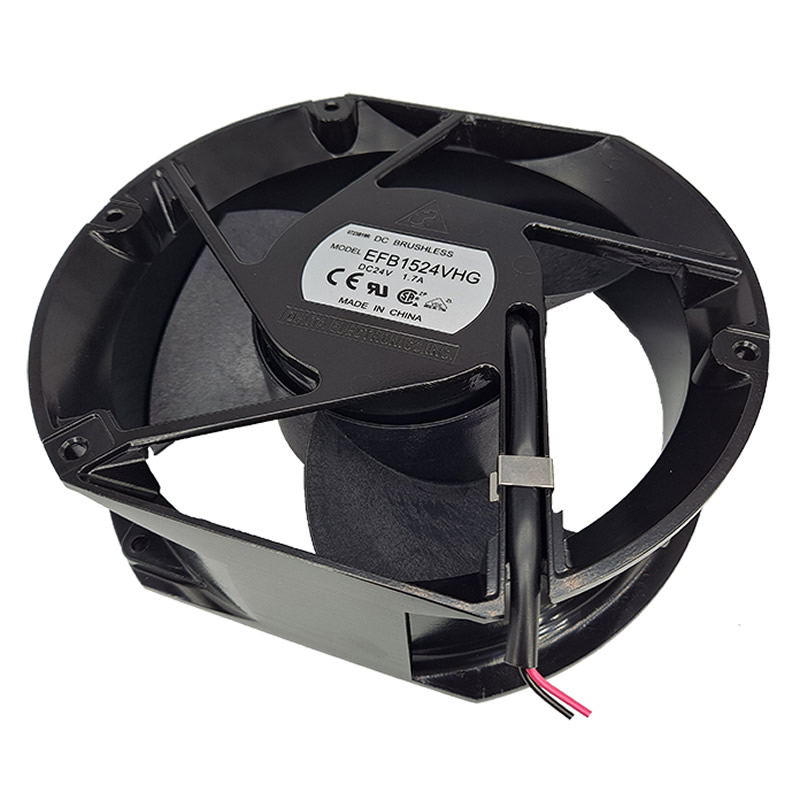

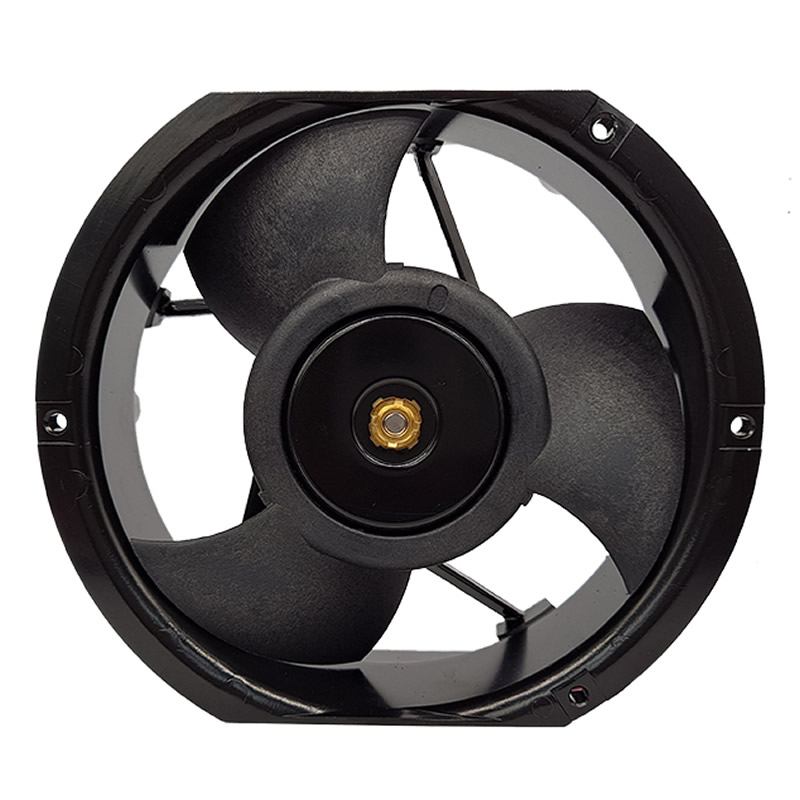

EFB1524VHG Delta 172x150x50.80mm Ball 24VDC 302.29CFM(8.560m3/min) 0.937inchH2O(23.80mmH2O) 60.0dB(A) 23.28W 4000RPM 2wireleads fan
Specifications
| Part Number | EFB1524VHG |
|---|---|
| Manufacturer | Delta Electronics |
| Power Rating | 23.28 W |
| Approval Agency | CE, CSA, UL, VDE |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Features | Locked Rotor Protection |
| Series | EFB |
| Air Flow (m3) | 8.560 m3/min |
| Dimensions | 172x150x50.80 mm |
| Termination | 2 wire leads |
| Fan Speed | 4000 RPM |
| Fan Type | DC |
| Static Pressure | 0.937 inchH2O (23.80 mmH2O) |
| Noise Level | 60.0 dB(A) |
| Air Flow | 302.29 CFM |
| Voltage Rating | 24 VDC |
| Bearing Type | Ball Bearing |
| Weight | 1.9 lbs (861.8 g) |
| Category | Axial |
| Current Rating | 0.97 A |
| Operating Voltage | 12 ~ 28 VDC |
| Material Frame | Die-Cast Aluminum |
| Material Blade | Plastic |
| Lifetime @ Temp | 80000 Hrs @ 40⁰C |
| Subcategory | DC axial fan |
| Shipping Weight | 1 kg |
| Product PDF | EFB1524VHG-Delta.pdf |
