Description

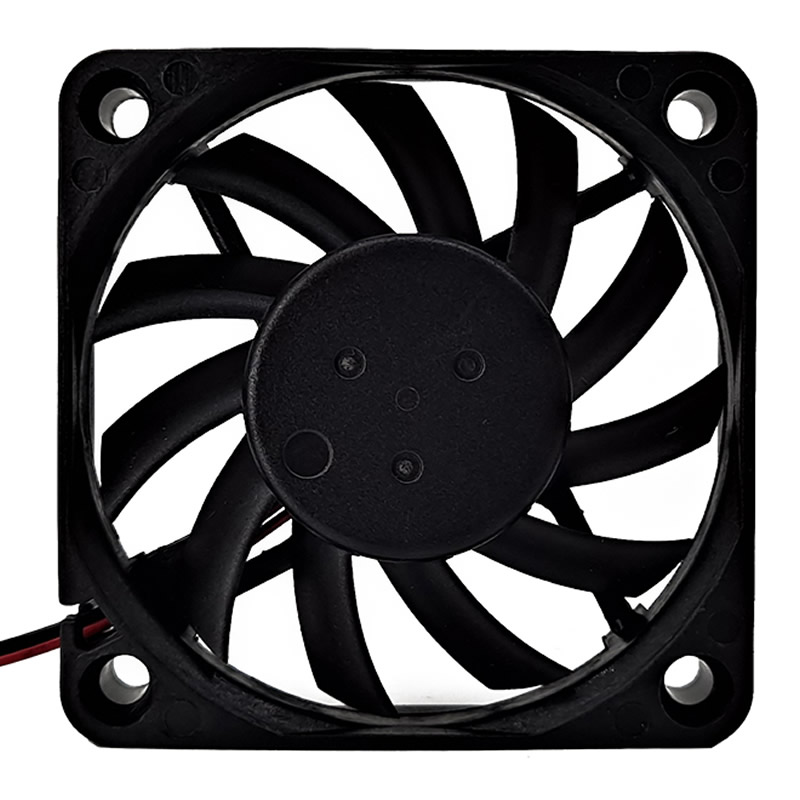

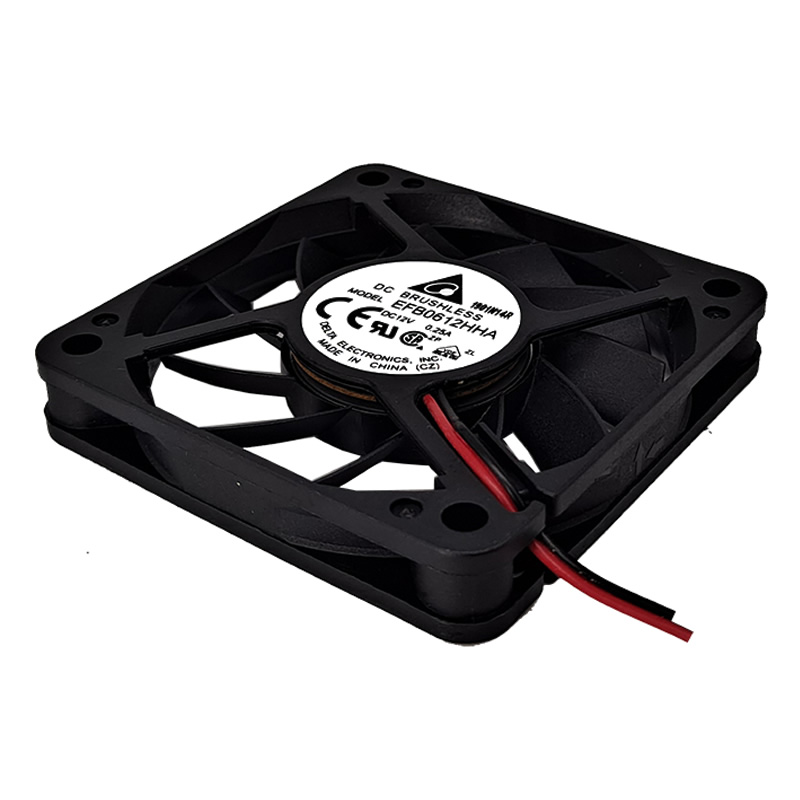

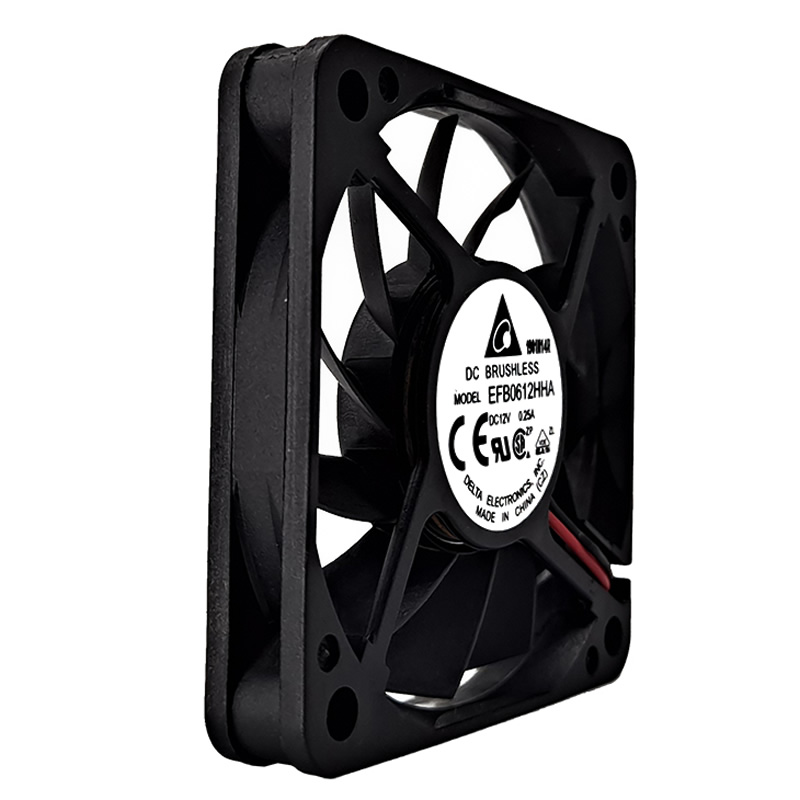

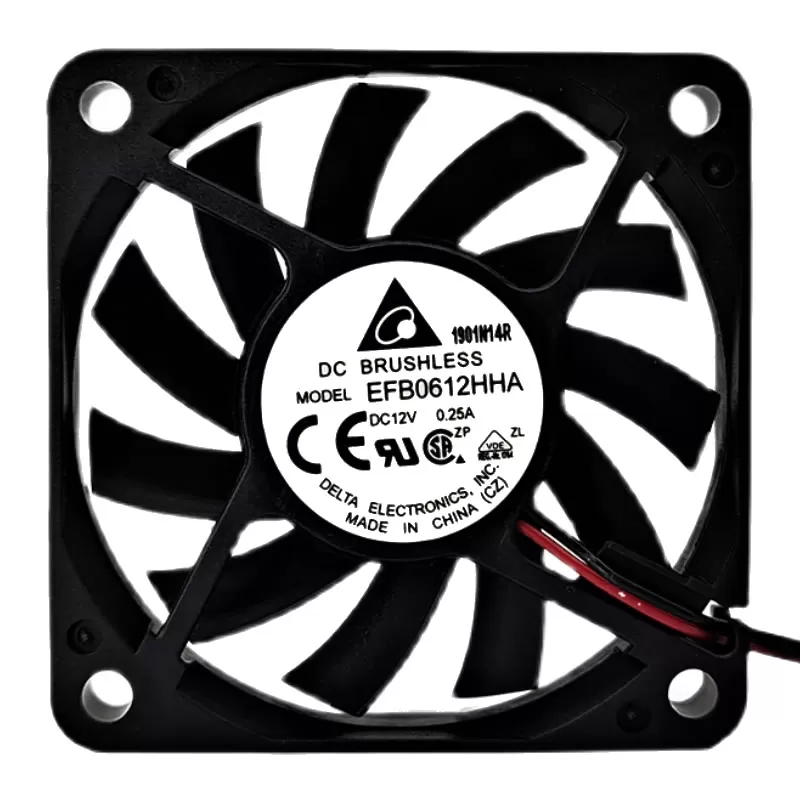

EFB0612HHA Delta 60x60x10mm Ball 12VDC 21.19CFM(0.600m3/min) 0.169inchH2O(4.30mmH2O) 36.5dB(A) 2.16W 4800RPM 2wireleads fan
Specifications
| Model | EFB0612HHA |
|---|---|
| Manufacturer | Delta Electronics |
| Dimensions | 60x60x10 mm |
| Power Rating | 2.16 W |
| Approval Agency | CE, CSA, UL, VDE |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Features | Locked Rotor Protection |
| Series | EFB |
| Air Flow (m3) | 0.600 m3/min |
| Termination | 2 wire leads |
| Fan Speed | 4800 RPM |
| Fan Type | DC |
| Static Pressure | 0.169 inchH2O (4.30 mmH2O) |
| Noise Level | 36.5 dB(A) |
| Air Flow | 21.19 CFM |
| Voltage Rating | 12 VDC |
| Bearing Type | Ball Bearing |
| Weight | 0.062 lb (28.12 g) |
| Category | Axial |
| Current Rating | 0.18 A |
| Operating Voltage | 7 ~ 13.8 VDC |
| Material Frame | Plastic |
| Material Blade | Plastic |
| Lifetime @ Temp | 70000 Hrs @ 40⁰C |
| Shipping Weight | 0.25 kg |
| Product PDF | EFB0612HHA-Delta.pdf |
