Description

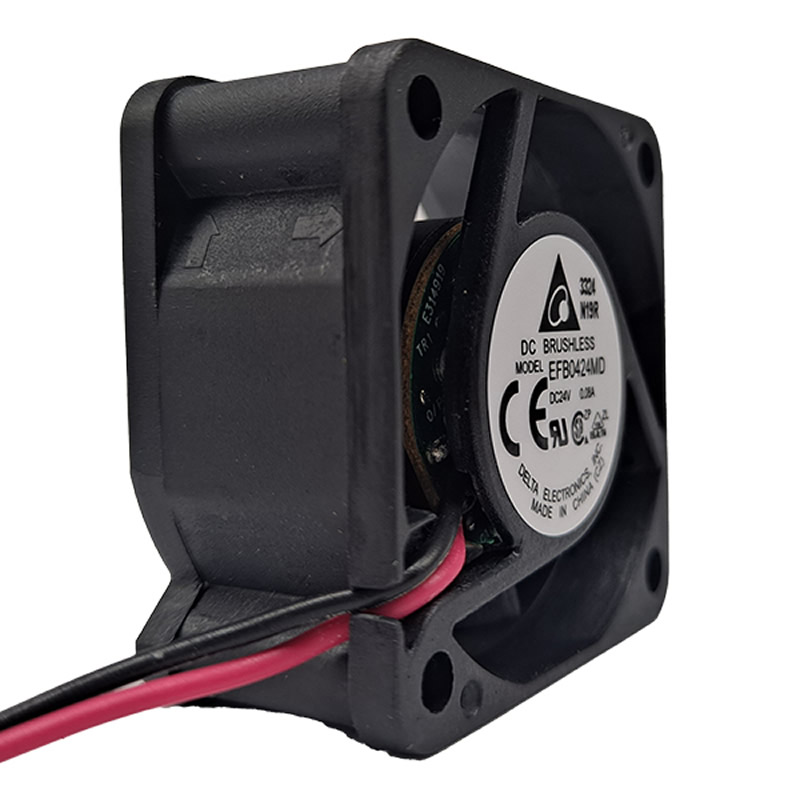

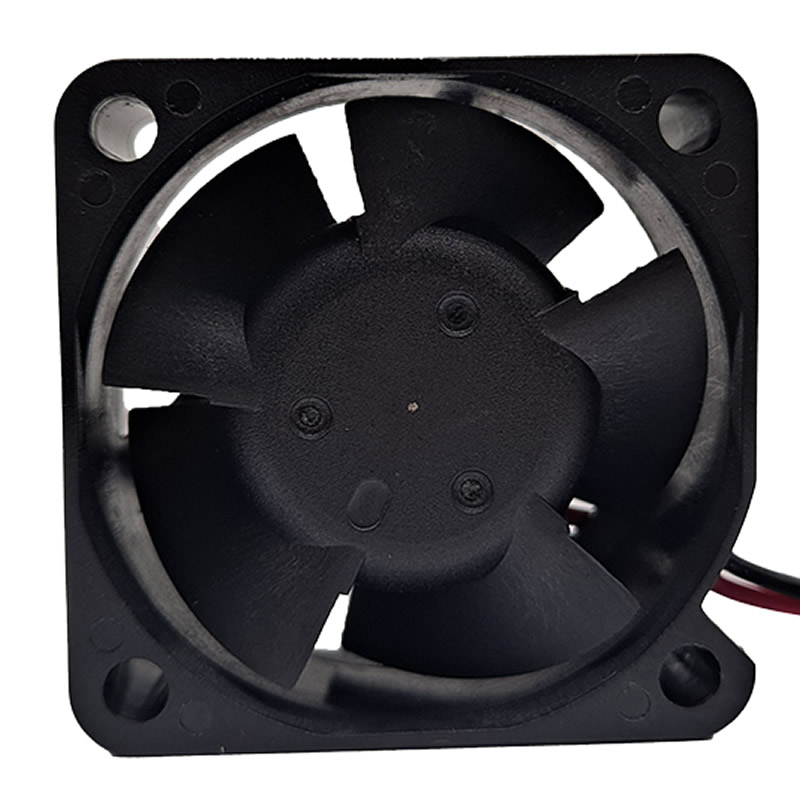

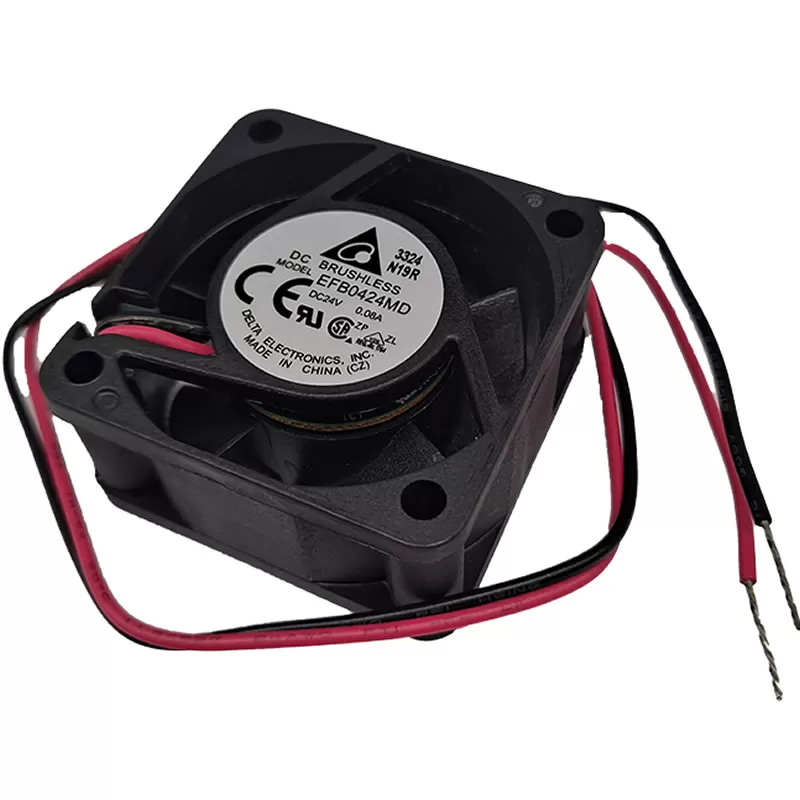

EFB0424MD Delta 40x40x20mm Ball 24VDC 7.17CFM(0.203m3/min) 0.218inchH2O(5.54mmH2O) 24.0dB(A) 1.20W 6300RPM 2wire leads fan
Delta EFB0424MD is a DC brushless axial flow fan with a nominal voltage of 24VDC (operating voltage 14.0-27.6VDC), maximum input current of 0.08A, power of 1.92W, and rotational speed of 6300RPM. It delivers a maximum air flow of 0.203m³/min (minimum 0.176m³/min) and maximum static pressure of 5.54mmH₂O (minimum 4.18mmH₂O), with an average acoustic noise of 24.0dB(A) (maximum 27.0dB(A)). Measuring 40.0×20.0×10.0mm and weighing 33g, the frame and impeller are made of UL 94V-0 flame-retardant plastic, equipped with double ball bearings and rotating clockwise when viewed from the nameplate side. It uses UL 1007-F AWG#24 leads (red for positive, black for negative), operates at -10°C to 70°C, stores at -40°C to 75°C, and has a working humidity of 5%-90%RH. With locked rotor protection (preventing fire within 96 hours of lock-up) and reverse polarity protection, it has a lifespan of 70,000 hours at 40°C and 15%-65%RH, suitable for low-power cooling in small electronic devices.
Specifications
| Part Number | EFB0424MD |
|---|---|
| Fan Type | DC |
| Approval Agency | CE, CSA, UL, VDE |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Features | Locked Rotor Protection |
| Series | EFB |
| Air Flow (m3) | 0.203 m3/min |
| Dimensions | 40x40x20 mm |
| Termination | 2 wire leads |
| Manufacturer | Delta Electronics |
| Fan Speed | 6300 RPM |
| Power Rating | 1.20 W |
| Noise Level | 24.0 dB(A) |
| Static Pressure | 0.218 inchH2O (5.54 mmH2O) |
| Air Flow | 7.17 CFM |
| Voltage Rating | 24 VDC |
| Bearing Type | Ball Bearing |
| Weight | 0.073 lb (33.11 g) |
| Category | Axial |
| Current Rating | 0.05 A |
| Operating Voltage | 14 ~ 27.6 VDC |
| Material Frame | Plastic |
| Lifetime @ Temp | 70000 Hrs @ 40⁰C |
| Shipping Weight | 0.25 kg |
| Product PDF | EFB0424MD-Delta.pdf |
