A6E630-AN01-01 ebmpapst

Description

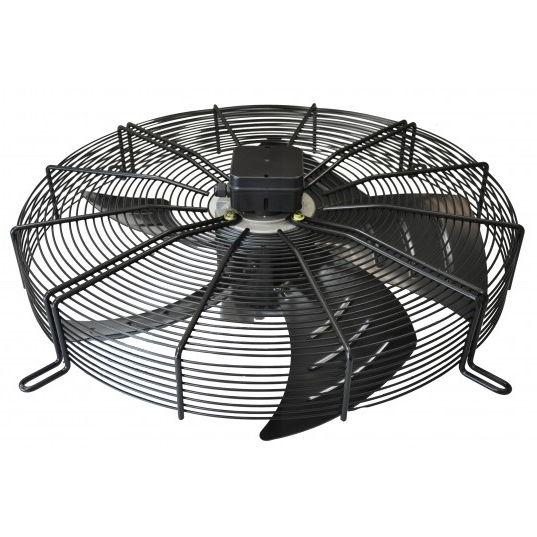

A6E630-AN01-01 ebmpapst 630x210mm 230VAC 600W 2.62A 6725m³/h 865RPM 70dB(A) IP54 Terminal Box AC axial fan

The A6E630-AN01-01 AC axial fan by ebm-papst is a specialized ventilation product with distinct features. It belongs to the HyBlade® sickled blades S series and has specific electrical specifications. Operating on 230 VAC, 50 Hz single – phase power, it has a 600 W power input and 2.62 A current draw. The motor, M6E110 – GF, is equipped with a 14 µF capacitor and a thermal overload protector for safety. Structurally, it weighs 10 kg, has a 630 – mm size, 5 PP – plastic – sprayed sheet – steel blades, and a black – coated rotor. It has an IP 54 protection rating, an “F” insulation class, and can operate in a wide temperature range from – 40 °C to 55 °C ambient temperature.

In terms of performance, this fan offers excellent air – handling capabilities. With a maximum back pressure of 100 Pa, at its optimum efficiency point, it can achieve an air flow of 6725 m³/h with a pressure increase of 98 Pa at 865 min⁻¹. Its air performance is measured according to ISO 5801 in installation category A. Noise levels are also well – controlled, with different sound pressure and power levels measured at the inlet and outlet sides under specific conditions.

Furthermore, the A6E630-AN01-01 is highly compliant with international standards. It conforms to EN 61800 – 5 – 1 and has CE approval, along with additional certifications like GOST, VDE, and CCC. These approvals ensure its safety, quality, and suitability for use in diverse markets and applications, making it a reliable choice for various ventilation needs.
