Description

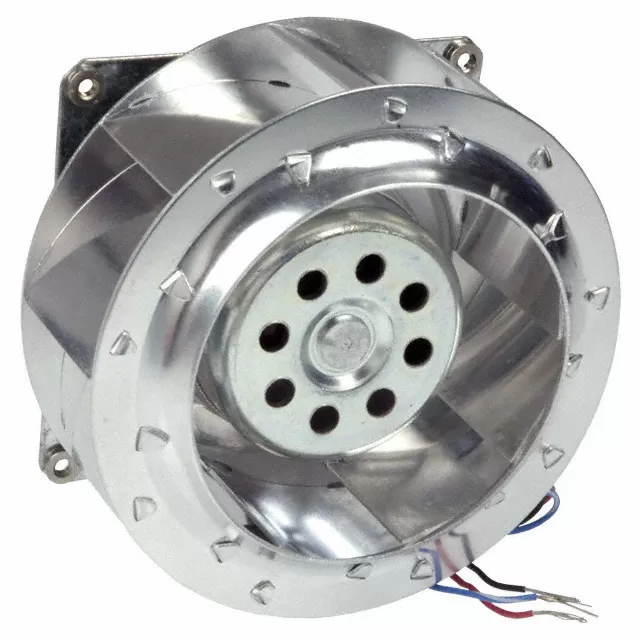

DD402124B1R Comair Rotron 19039821A 118x118x55mm 24VDC 0.92A 22.1W 5000RPM 100CFM 169.9m³/h 59dB(A) Ball 1.52inH2O 379Pa 3 Wire Leads Impeller fan
Specifications
| Model Number | DD402124B1R |
|---|---|
| Air Flow | 100 CFM |
| Weight | 355 g |
| Manufacturer | Comair Rotron |
| Series | DD4021 |
| Dimensions | 118x118x55 mm |
| Voltage Rating | 24 VDC |
| Fan Type | DC |
| Operating Voltage | 12 – 32VDC |
| Current Rating | 0.92 A |
| Power Rating | 22.1 W |
| Fan Speed | 5000 RPM |
| Air Flow (m3) | 169.9 m³/h |
| Bearing Type | Ball Bearing |
| Part Number | 19039821A |
| Noise Level | 59 dB(A) |
| Static Pressure | 1.52 in H2O |
| Operating Temperature | -40 ~ 158°F (-40 ~ 70°C) |
| Storage Temperature | -40°C to 85°C |
| Approval Agency | CE, cUL, UL |
| Lifetime @ Temp | 52000 Hrs @ 40°C |
| Propeller | Plastic, Black, UL 94V-0 |
| Venturi | Die Cast Aluminum |
| Termination | 3 Wire Leads |
| Category | Impeller |
| Static Pressure Pa | 379 Pa |
| Product PDF | DD402124B1R-Comair-Rotron.pdf |
