Description

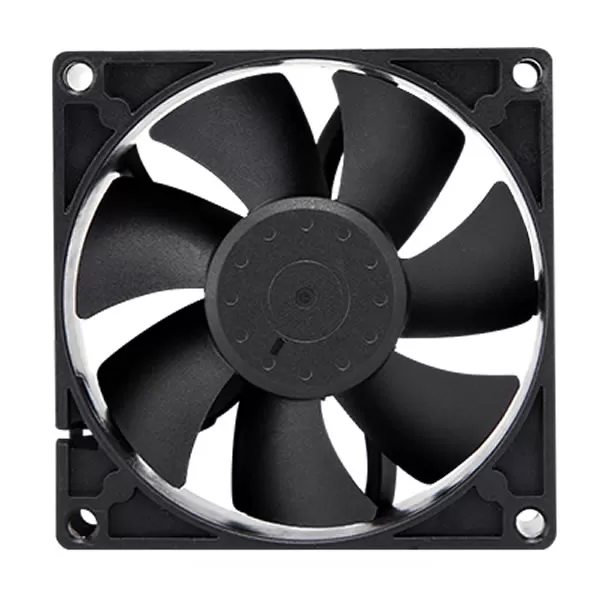

CR8025-XD24BPL Comair Rotron 17002030A 80x80x25mm 24VDC 0.28A 6.72W 6000RPM 65.6CFM 113.5m³/h 56dB(A) Ball 0.50inH2O 124Pa 2 Wire Leads Axial DC fan
Specifications
| Model Number | CR8025-XD24BPL |
|---|---|
| Air Flow | 65.6 CFM |
| Weight | 80 g |
| Manufacturer | Comair Rotron |
| Series | CR8025 DC |
| Dimensions | 80x80x25 mm |
| Voltage Rating | 24 VDC |
| Fan Type | DC |
| Operating Voltage | 21.6-26.4VDC |
| Current Rating | 0.28 A |
| Power Rating | 6.72 W |
| Fan Speed | 6000 RPM |
| Air Flow (m3) | 113.5 m³/h |
| Bearing Type | Ball Bearing |
| Part Number | 17002030A |
| Noise Level | 56 dB(A) |
| Static Pressure | 0.50 in H2O |
| Operating Temperature | -40 ~ 158°F (-40 ~ 70°C) |
| Storage Temperature | -40°C to 85°C |
| Approval Agency | CE, UL |
| Lifetime @ Temp | 50000 Hrs @ 40°C |
| Propeller | Plastic, Black, UL 94V-0 |
| Venturi | Plastic, Black, UL 94V-0 |
| Termination | 2 Wire Leads |
| Category | Axial DC |
| Static Pressure Pa | 124 Pa |
| Product PDF | CR8025-XD24BPL-Comair-Rotron.pdf |
