Description

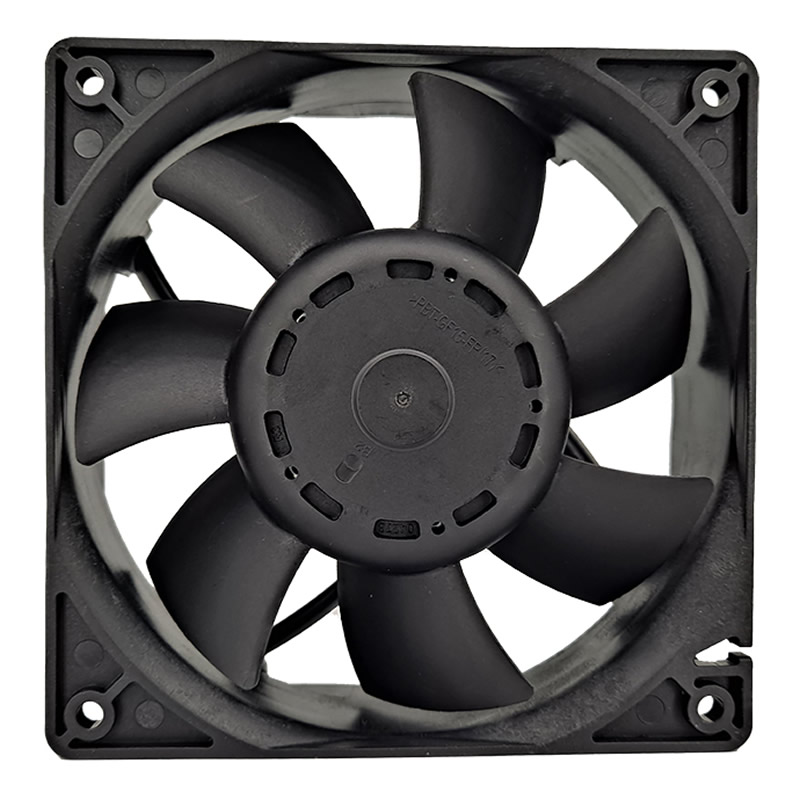

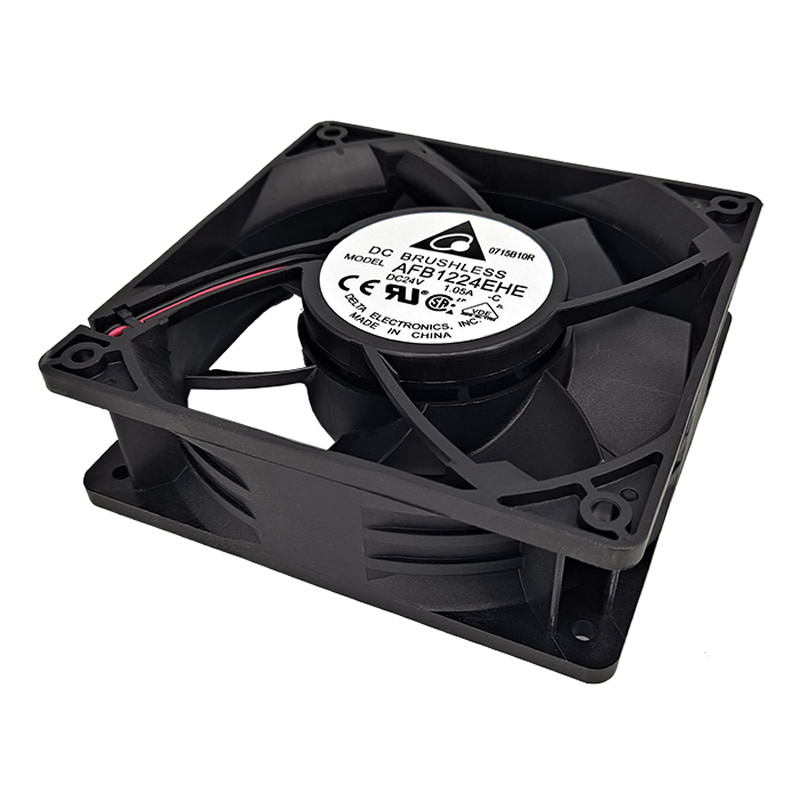

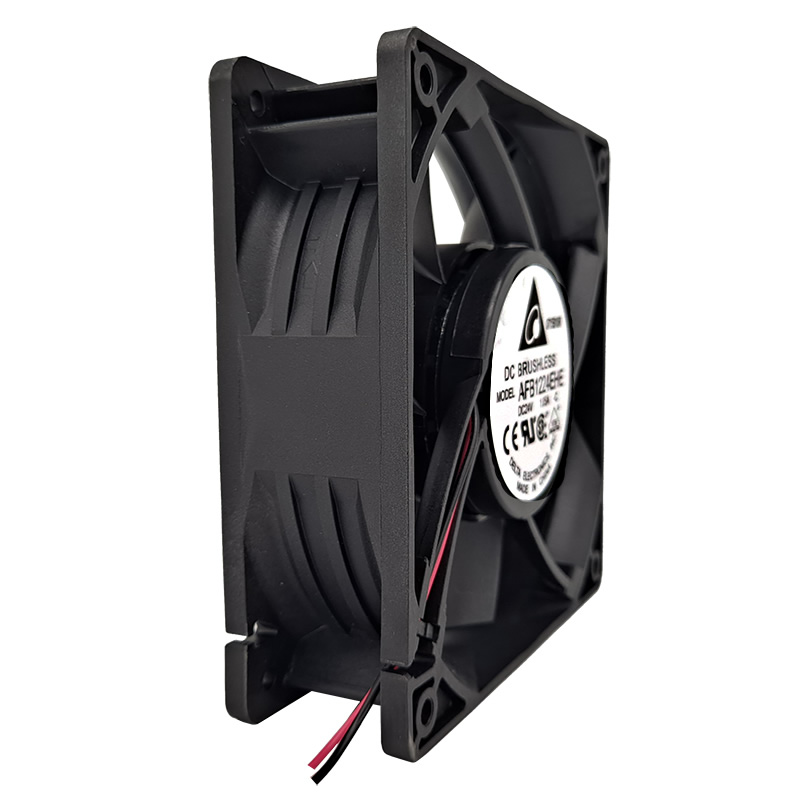

AFB1224EHE-C Delta 24VDC 120x120x38mm 212.6CFM 0.844inH2O(210.2Pa) Ball 58.5dB(A) 20.4W 4600RPM 2 Wire Leads Locked Rotor Protection DC Fan
Specifications
| Model | AFB1224EHE-C |
|---|---|
| Manufacturer | Delta Electronics |
| Dimensions | 120x120x38 mm |
| Bearing Type | Ball Bearing |
| Series | AFB |
| Voltage Rating | 24 VDC |
| Air Flow | 212.6 CFM |
| Air Flow (m3) | 5.95 m³/min |
| Static Pressure | 0.844 in H2O (210.2 Pa) |
| Features | Locked Rotor Protection |
| Fan Type | DC |
| Noise Level | 58.5 dB(A) |
| Power Rating | 20.4 W |
| Fan Speed | 4600 RPM |
| Termination | 2 Wire Leads |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Approval Agency | CE, CSA, UL, VDE |
| Weight | 0.728 lb (330.22 g) |
| Number of blades | 7 |
| Current Rating | 1.05 A |
| Subcategory | DC axial fan |
| Shipping Weight | 0.5 kg |
| Product PDF | AFB1224EHE-C-Delta.pdf |
