Description

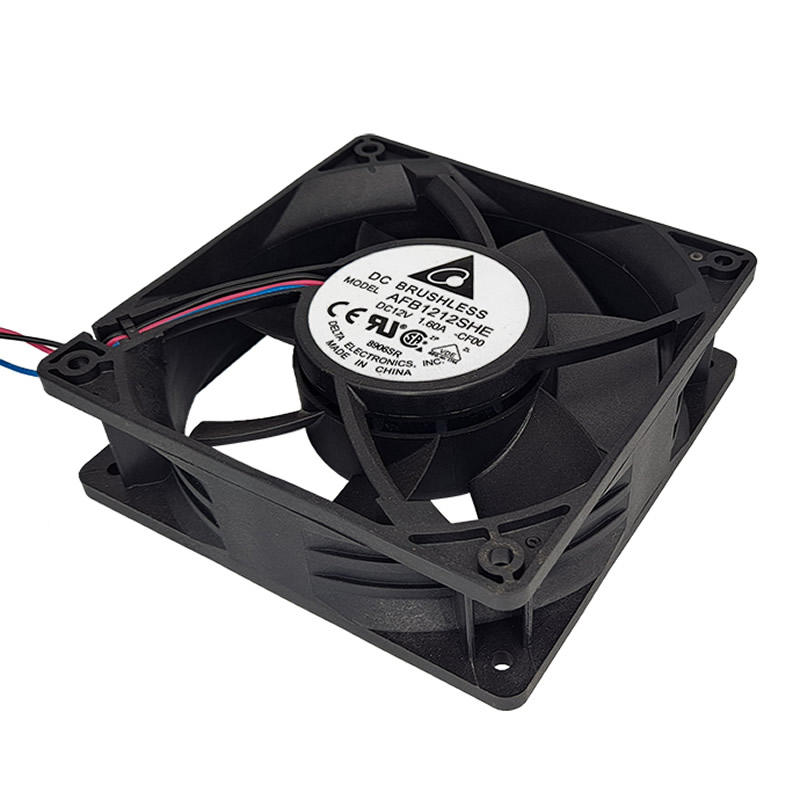

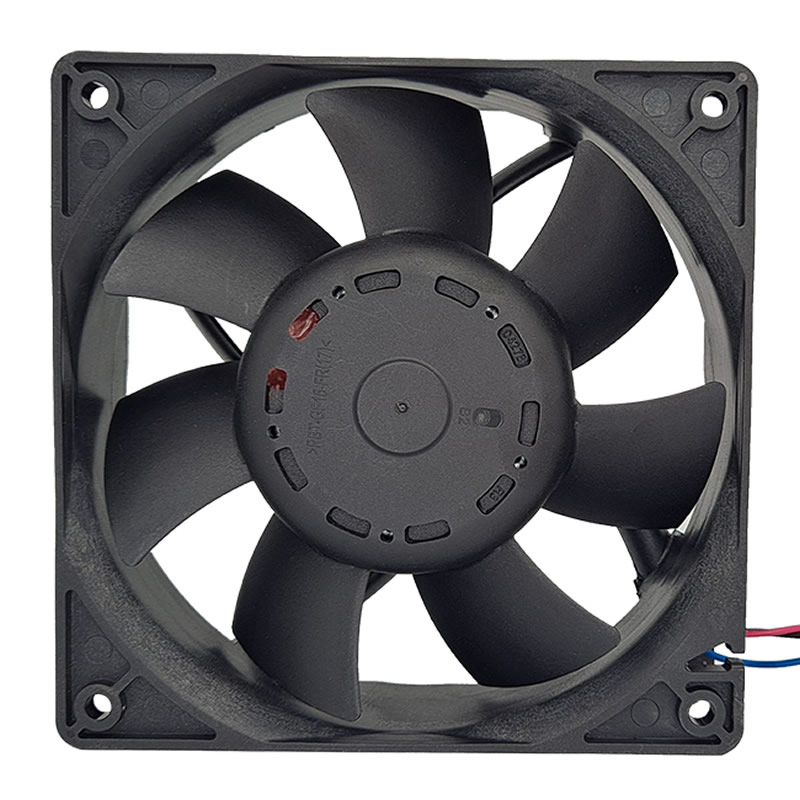

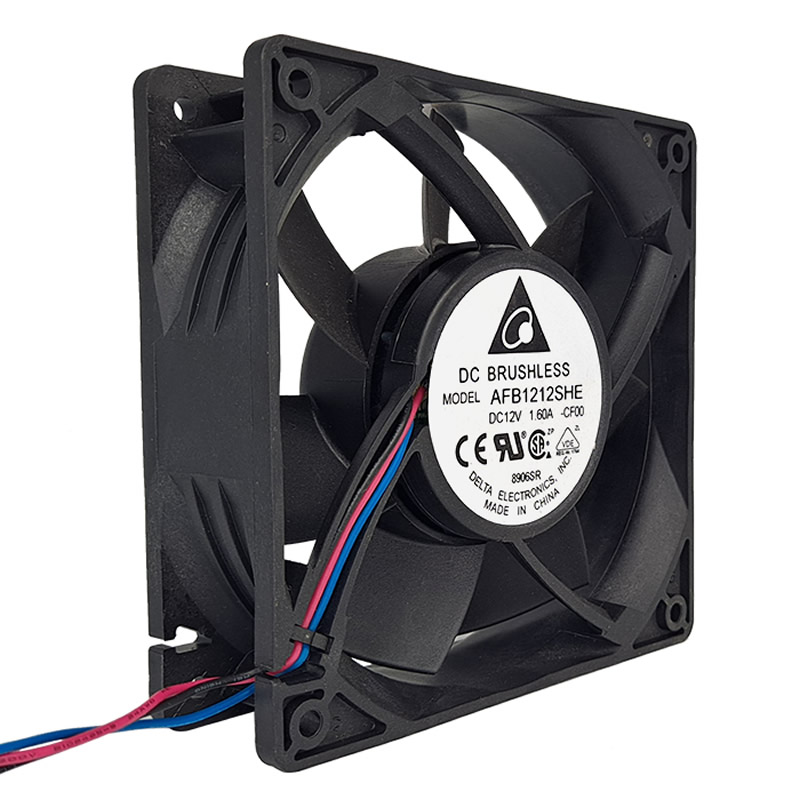

AFB1212SHE-CF00 Delta 12VDC 120x120x38mm 190.5CFM 0.694inH2O(173.0Pa) Ball 55.5dB(A) 15W 4100RPM 3 Wire Leads Locked Rotor Protection, Speed Sensor (Tach) DC Fan
Specifications
| Part Number | AFB1212SHE-CF00 |
|---|---|
| Bearing Type | Ball Bearing |
| Series | AFB |
| Voltage Rating | 12 VDC |
| Dimensions | 120x120x38 mm |
| Air Flow | 190.5 CFM |
| Air Flow (m3) | 5.33 m³/min |
| Static Pressure | 0.694 in H2O (173.0 Pa) |
| Manufacturer | Delta Electronics |
| Features | Locked Rotor Protection, Speed Sensor (Tach) |
| Fan Type | DC |
| Noise Level | 55.5 dB(A) |
| Power Rating | 15 W |
| Fan Speed | 4100 RPM |
| Termination | 3 Wire Leads |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Approval Agency | CE, CSA, UL, VDE |
| Weight | 0.728 lb (330.22 g) |
| Shipping Weight | 0.5 kg |
| Product PDF | AFB1212SHE-CF00-Delta.pdf |
