Description

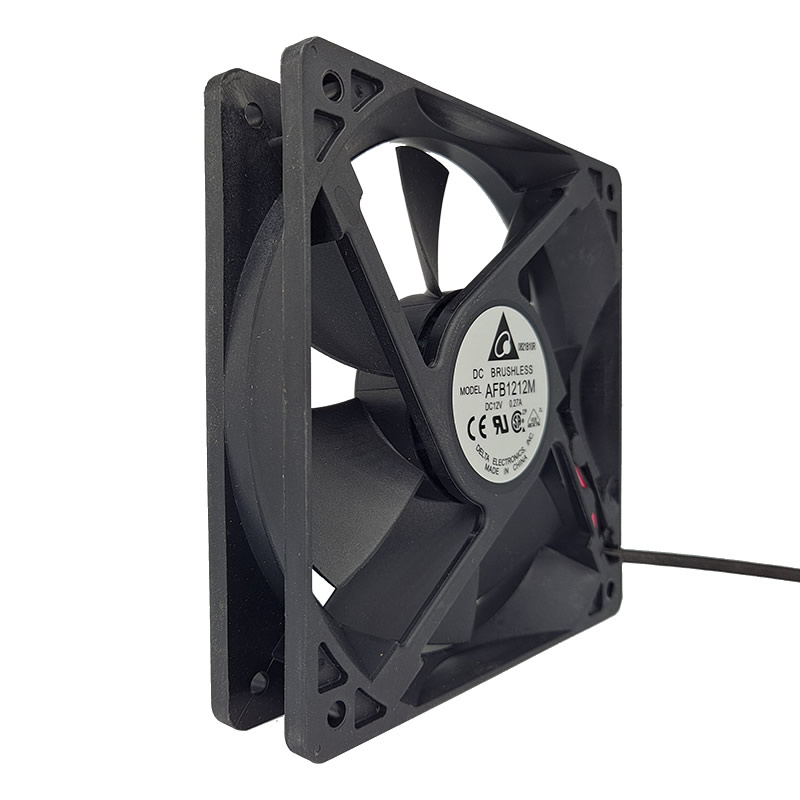

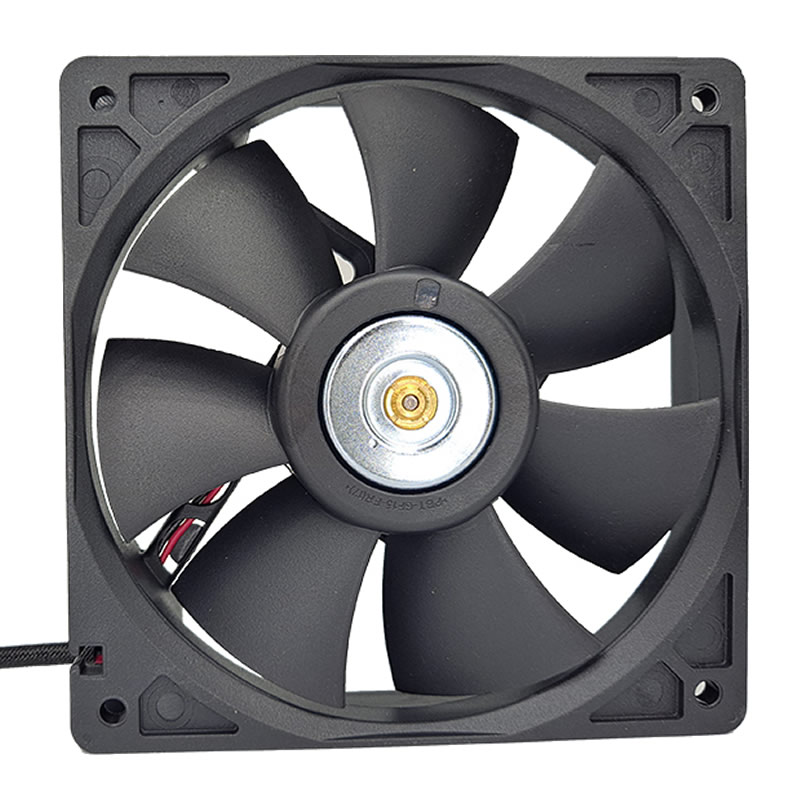

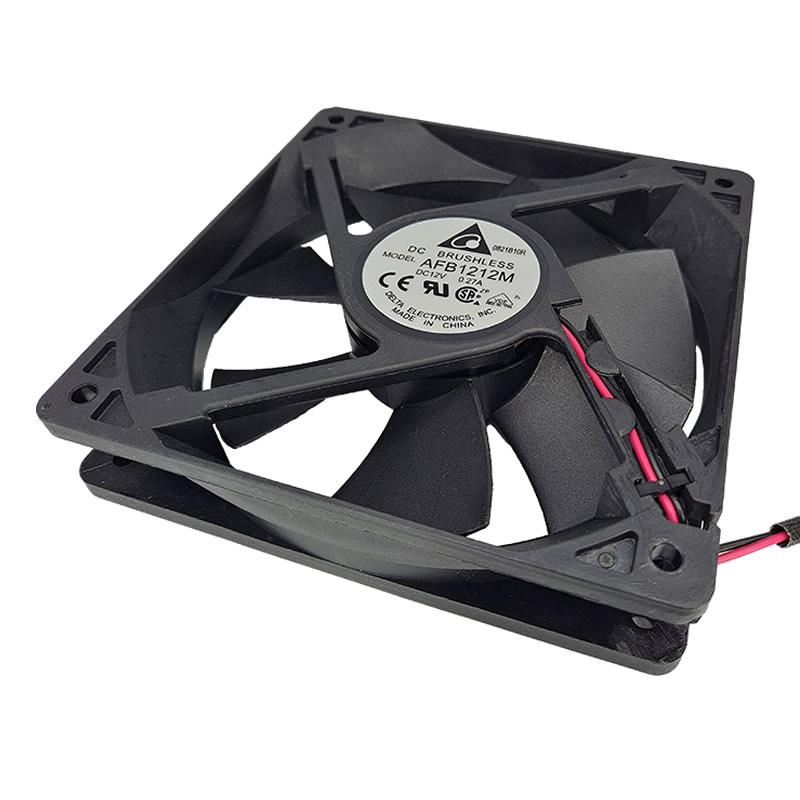

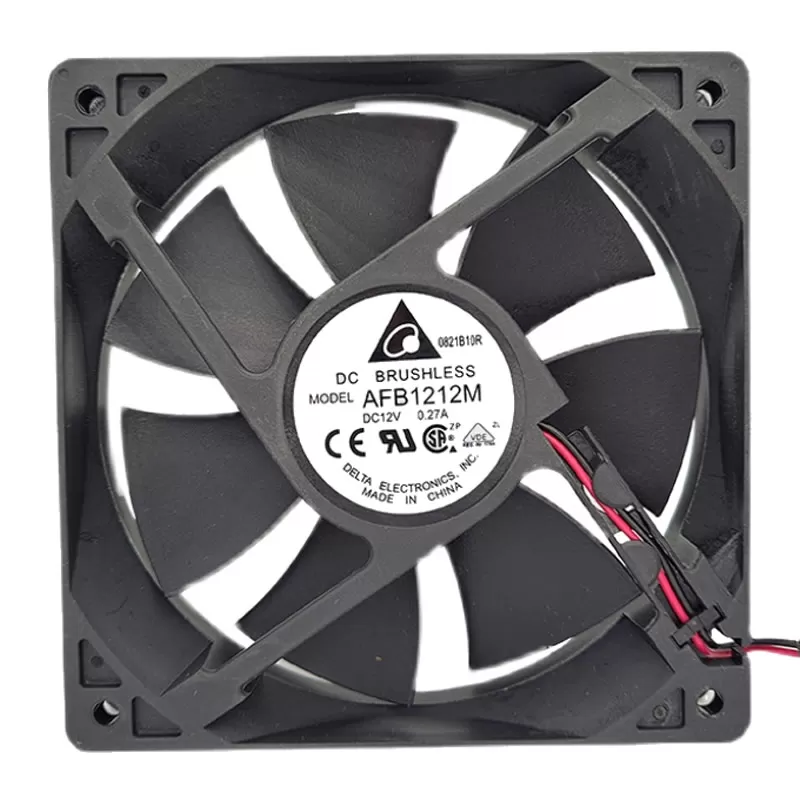

AFB1212M Delta 120x120x25.40mm Ball 12VDC 73.84CFM(2.091m3/min) 0.203inchH2O 35.5dB(A) 2.16W 0.27A 2200RPM 2wireleads fan
Specifications
| Model | AFB1212M |
|---|---|
| Manufacturer | Delta Electronics |
| Fan Speed | 2200 RPM |
| Dimensions | 120x120x25.40 mm |
| Operating Temperature | 14 ~ 140°F (-10 ~ 60°C) |
| Features | Locked Rotor Protection |
| Series | AFB |
| Air Flow (m3) | 2.091 m3/min |
| Termination | 2 wire leads |
| Fan Type | DC |
| Noise Level | 35.5 dB(A) |
| Power Rating | 2.16 W |
| Static Pressure | 0.203 inchH2O (5.15 mmH2O) |
| Air Flow | 73.84 CFM |
| Voltage Rating | 12 VDC |
| Bearing Type | Ball Bearing |
| Weight | 0.437 lb (198.00 g) |
| Category | Axial |
| Current Rating | 0.27 A |
| Material Frame | Plastic |
| Lifetime @ Temp | 70000 Hrs @ 40⁰C |
| Approval Agency | CE, CSA, UL, VDE |
| Subcategory | DC axial fan |
| Shipping Weight | 0.5 kg |
| Product PDF | AFB1212M-Delta.pdf |
