Description

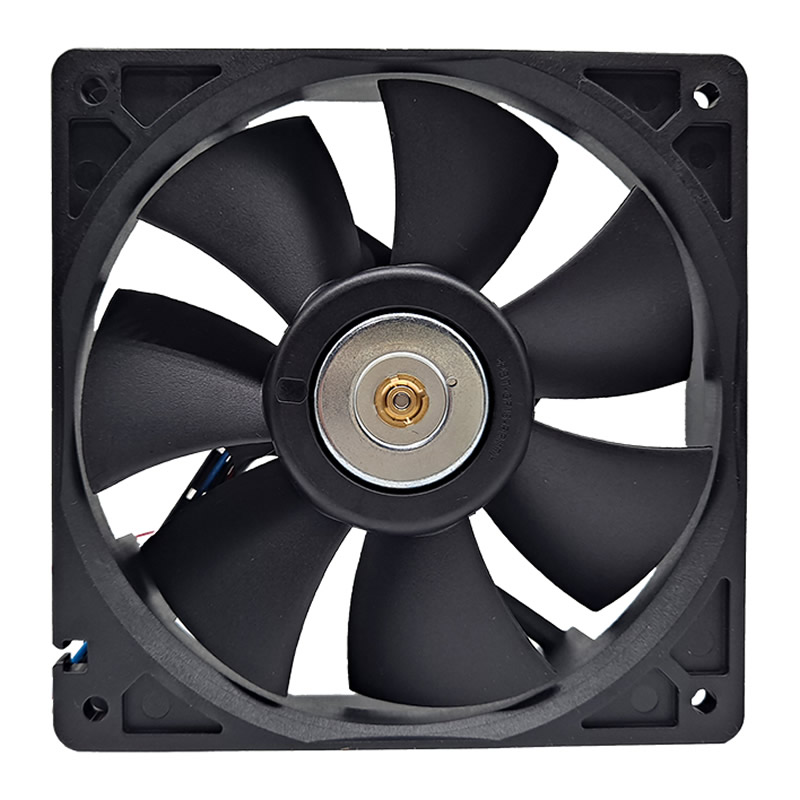

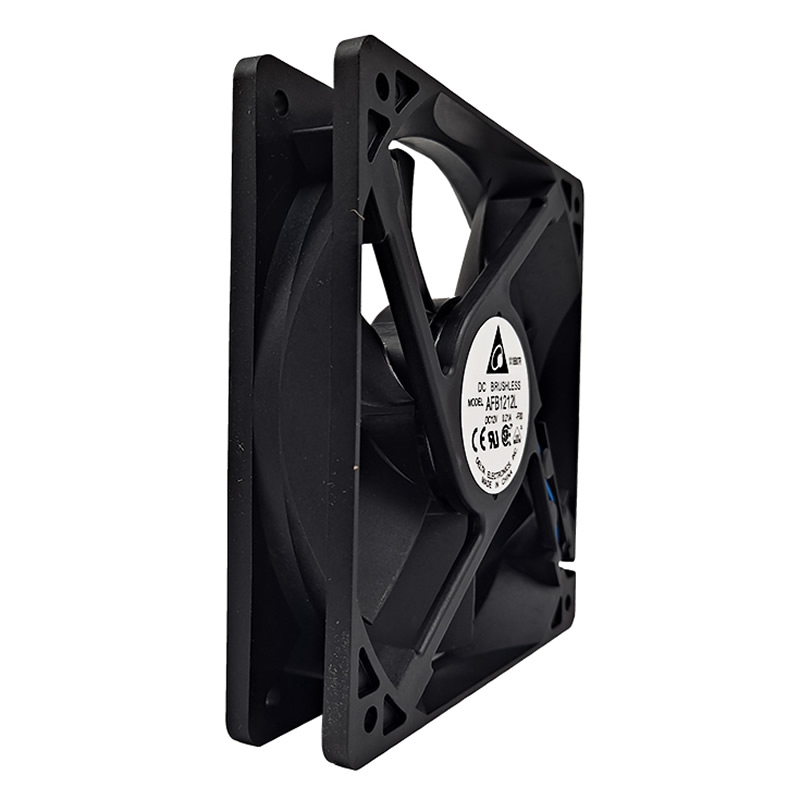

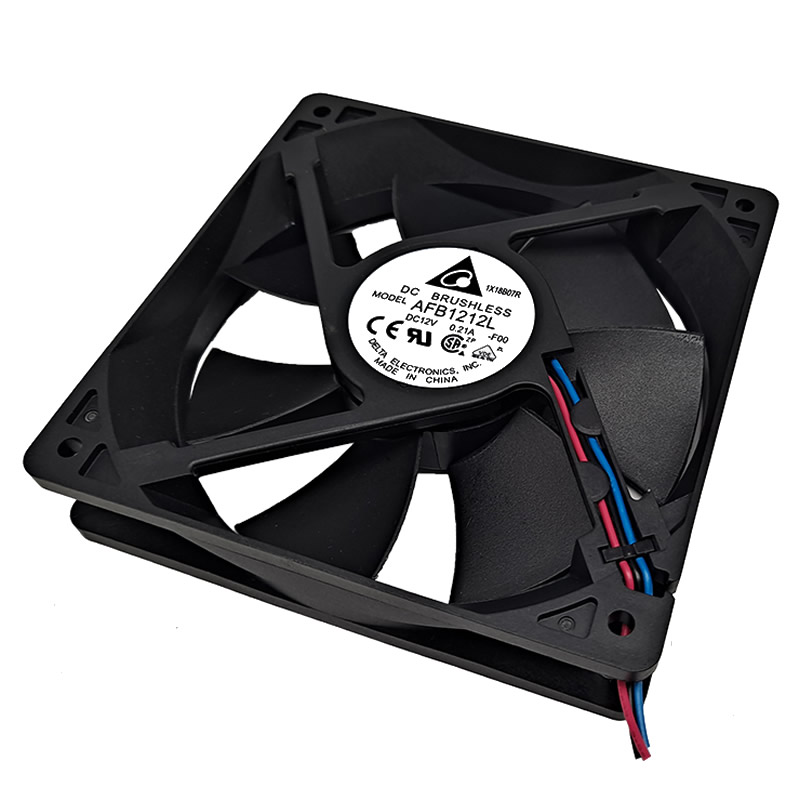

AFB1212L-F00 Delta 120x120x25.40mm Ball 12VDC 0.21A 62.93CFM(1.782m3/min) 0.154inchH2O 32.5dB(A) 1.68W 1900RPM 3wireleads axial fan
Specifications
| Model | AFB1212L-F00 |
|---|---|
| Manufacturer | Delta Electronics |
| Dimensions | 120x120x25.40 mm |
| Fan Speed | 1900 RPM |
| Approval Agency | CE, CSA, UL, VDE |
| Operating Temperature | 14 ~ 140°F (-10 ~ 60°C) |
| Features | Locked Rotor Protection, Speed Sensor (Tach) |
| Series | AFB |
| Air Flow (m3) | 1.782 m3/min |
| Termination | 3 wire leads |
| Fan Type | DC |
| Noise Level | 32.5 dB(A) |
| Power Rating | 1.68 W |
| Static Pressure | 0.154 inchH2O (3.93 mmH2O) |
| Air Flow | 62.93 CFM |
| Voltage Rating | 12 VDC |
| Bearing Type | Ball Bearing |
| Weight | 0.437 lb (198.00 g) |
| Category | Axial |
| Current Rating | 0.21 A |
| Material Frame | Plastic |
| Lifetime @ Temp | 70000 Hrs @ 40⁰C |
| Material Blade | Plastic |
| Number of blades | 7 |
| Condition | New |
| Subcategory | DC axial fan |
| Shipping Weight | 0.5 kg |
| Product PDF | AFB1212L-F00-Delta.pdf |
