Description

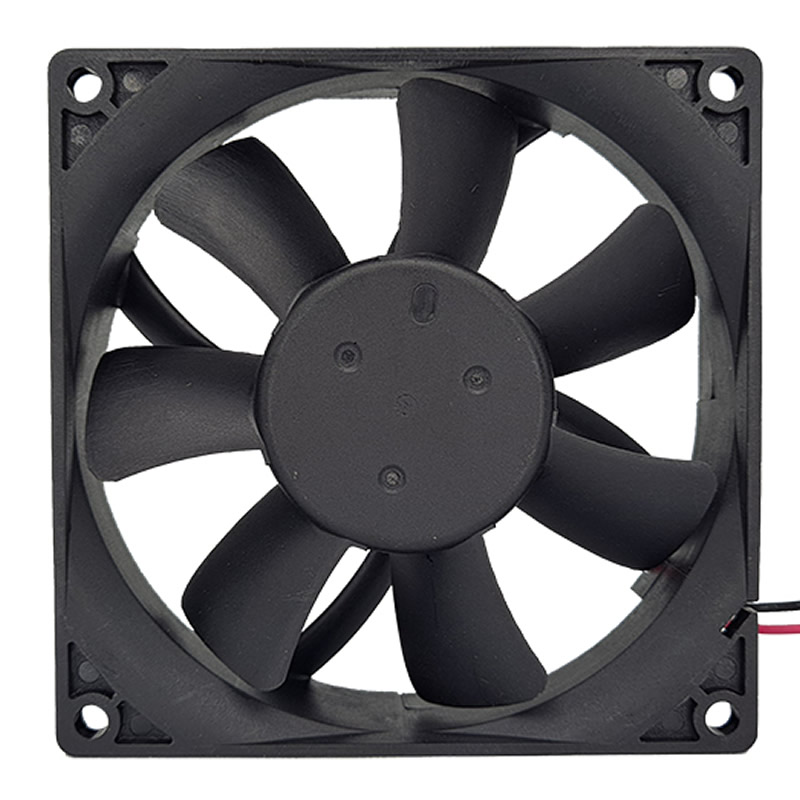

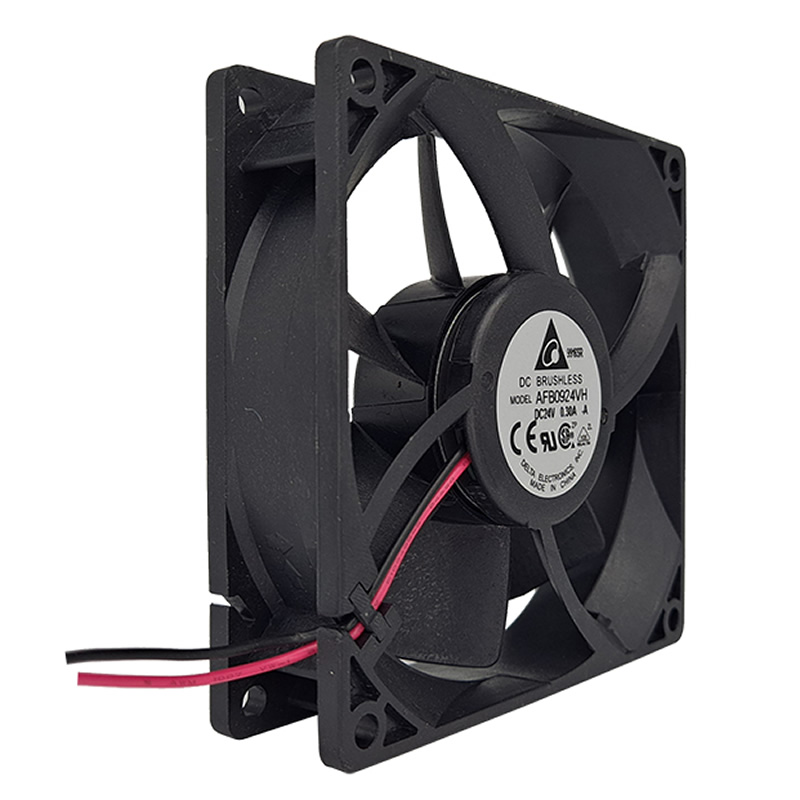

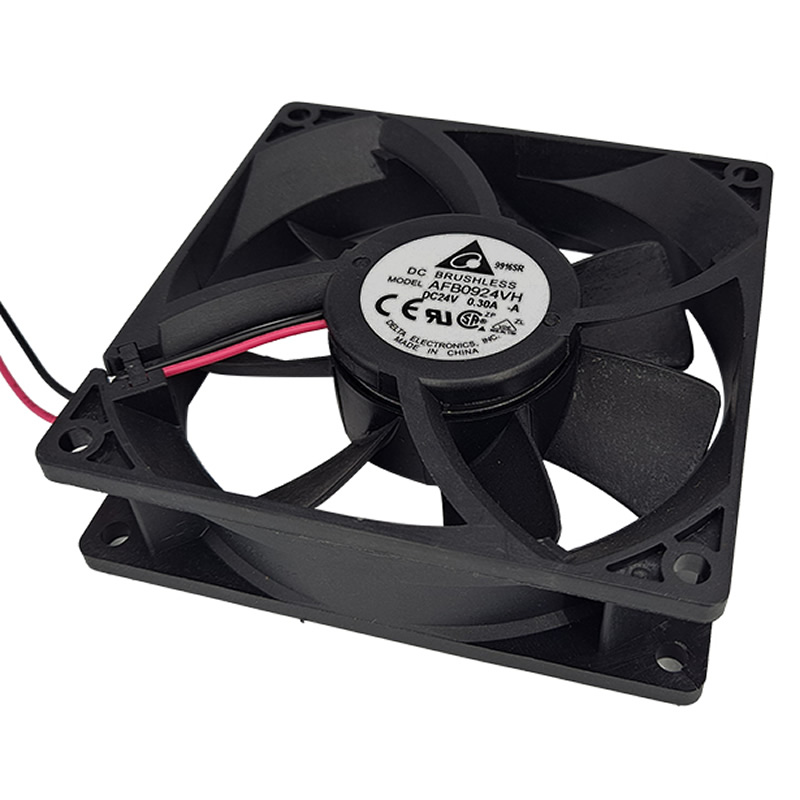

AFB0924VH-A Delta 92x92x25.40mm Ball 24VDC 81.47CFM(2.307m3/min) 0.345inchH2O(8.76mmH2O) 46.0dB(A) 6.00W 3800RPM 2wireleads fan
Specifications
| Part Number | AFB0924VH-A |
|---|---|
| Fan Speed | 3800 RPM |
| Approval Agency | CE, CSA, UL, VDE |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Features | Locked Rotor Protection |
| Series | AFB |
| Air Flow (m3) | 2.307 m3/min |
| Dimensions | 92x92x25.40 mm |
| Termination | 2 wire leads |
| Manufacturer | Delta Electronics |
| Fan Type | DC |
| Noise Level | 46.0 dB(A) |
| Power Rating | 6.00 W |
| Static Pressure | 0.345 inchH2O (8.76mmH2O) |
| Air Flow | 81.47 CFM |
| Voltage Rating | 24 VDC |
| Bearing Type | Ball Bearing |
| Weight | 0.267 lb (121.11 g) |
| Category | Axial |
| Current Rating | 0.25 A |
| Material Frame | Plastic |
| Lifetime @ Temp | 70000 Hrs @ 40⁰C |
| Shipping Weight | 0.25 kg |
| Product PDF | AFB0924VH-A-Delta.pdf |
