Description

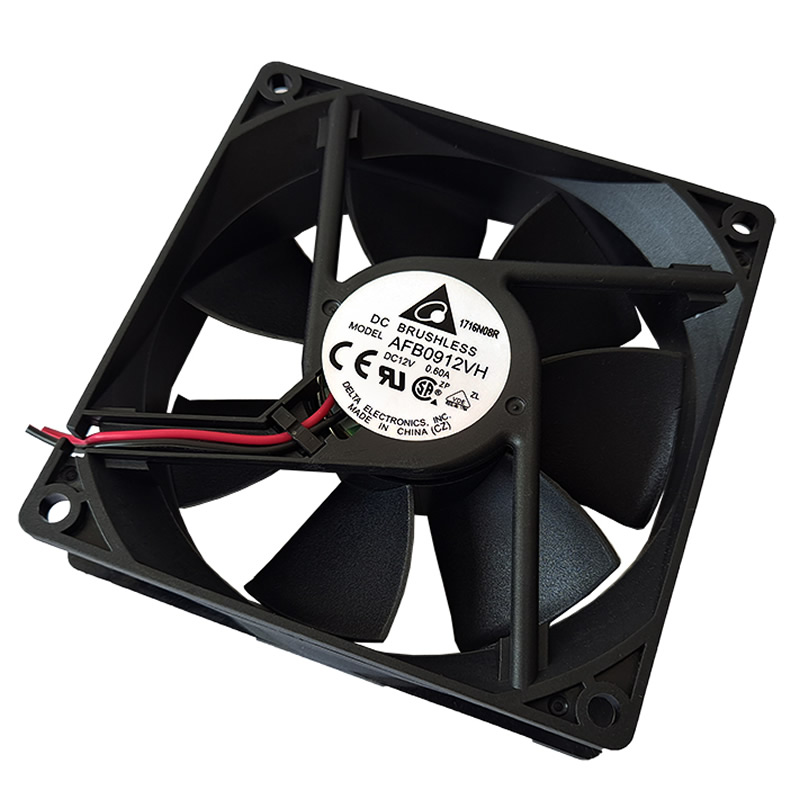

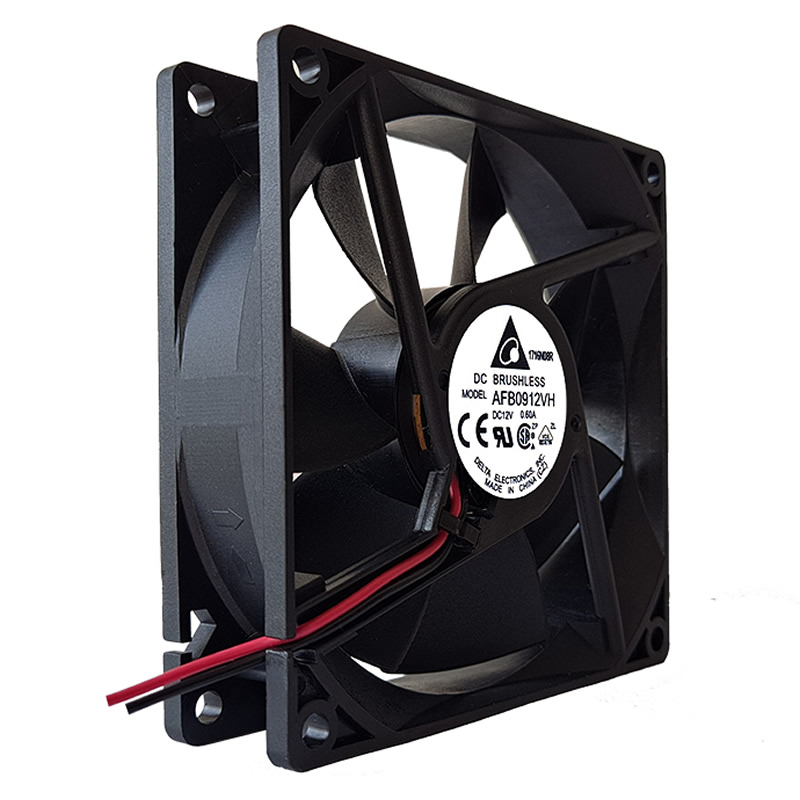

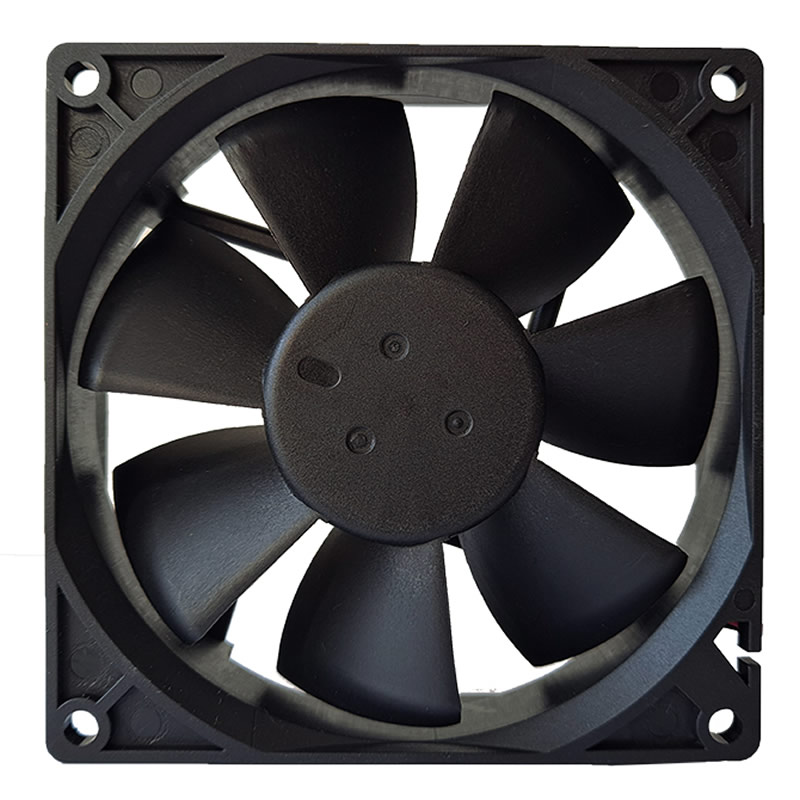

AFB0912VH Delta 92x92x25.40mm Ball 12VDC 67.80CFM(1.920m3/min) 0.302inchH2O(7.67mmH2O) 45.0dB(A) 4.80W 3800RPM 2wireleads fan
Specifications
| Part Number | AFB0912VH |
|---|---|
| Manufacturer | Delta Electronics |
| Power Rating | 4.80 W |
| Approval Agency | CE, CSA, UL, VDE |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Features | Locked Rotor Protection |
| Series | AFB |
| Air Flow (m3) | 1.920 m3/min |
| Dimensions | 92x92x25.40 mm |
| Termination | 2 wire leads |
| Fan Speed | 3800 RPM |
| Fan Type | DC |
| Static Pressure | 0.302 inchH2O (7.67 mmH2O) |
| Noise Level | 45.0 dB(A) |
| Air Flow | 67.80 CFM |
| Voltage Rating | 12 VDC |
| Bearing Type | Ball Bearing |
| Weight | 0.218 lb (98.88 g) |
| Category | Axial |
| Current Rating | 0.40 A |
| Operating Voltage | 7 ~ 13.8 VDC |
| Material Frame | Plastic |
| Material Blade | Plastic |
| Lifetime @ Temp | 70000 Hrs @ 40⁰C |
| Shipping Weight | 0.25 kg |
| Product PDF | AFB0912VH-Delta.pdf |
