Description

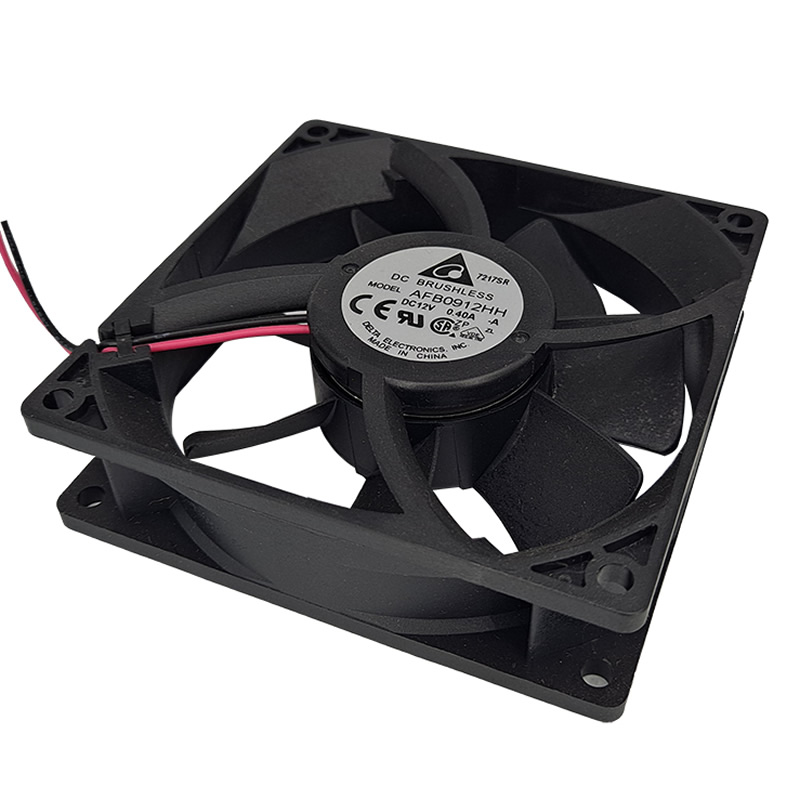

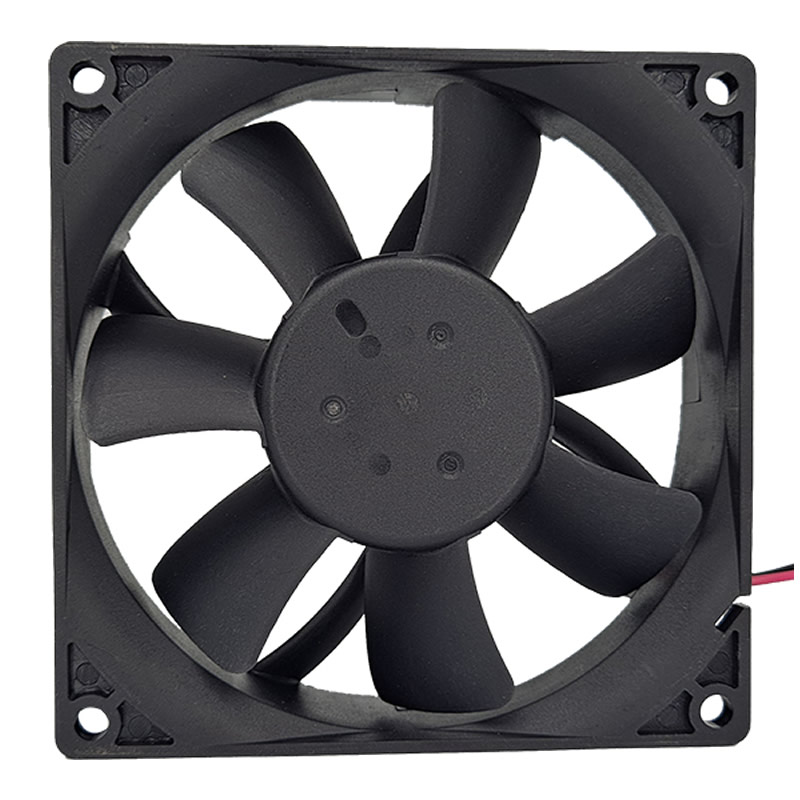

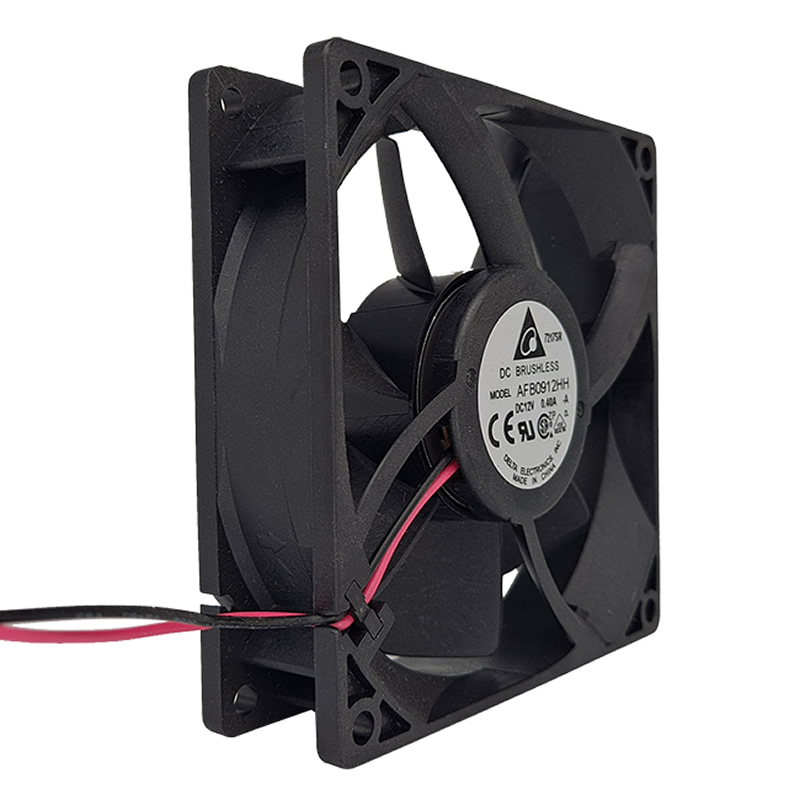

AFB0912HH-A Delta 12VDC 92x92x25.40mm 72.8CFM 0.262inH2O(65.3Pa) Ball 42.5dB(A) 3.84W 3300RPM 2 Wire Leads Locked Rotor Protection DC Fan
Specifications
| Part Number | AFB0912HH-A |
|---|---|
| Manufacturer | Delta Electronics |
| Bearing Type | Ball Bearing |
| Series | AFB |
| Voltage Rating | 12 VDC |
| Dimensions | 92x92x25.40 mm |
| Air Flow | 72.8 CFM |
| Air Flow (m3) | 2.04 m³/min |
| Static Pressure | 0.262 in H2O (65.3 Pa) |
| Features | Locked Rotor Protection |
| Fan Type | DC |
| Noise Level | 42.5 dB(A) |
| Power Rating | 3.84 W |
| Fan Speed | 3300 RPM |
| Termination | 2 Wire Leads |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Approval Agency | CE, CSA, UL, VDE |
| Weight | 0.267 lb (121.11 g) |
| Shipping Weight | 0.25 kg |
| Product PDF | AFB0912HH-A-Delta.pdf |
