Description

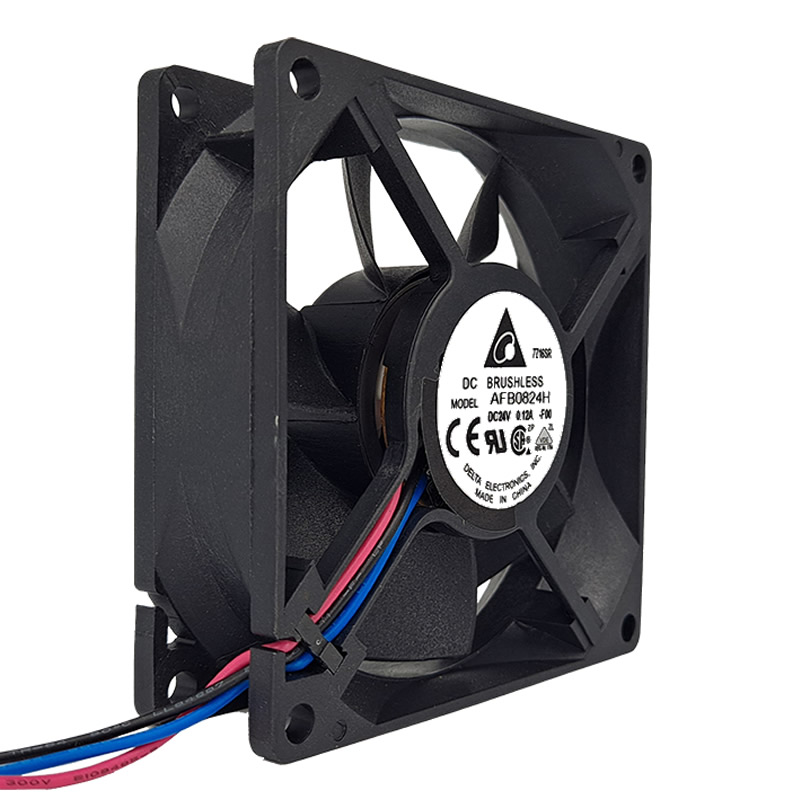

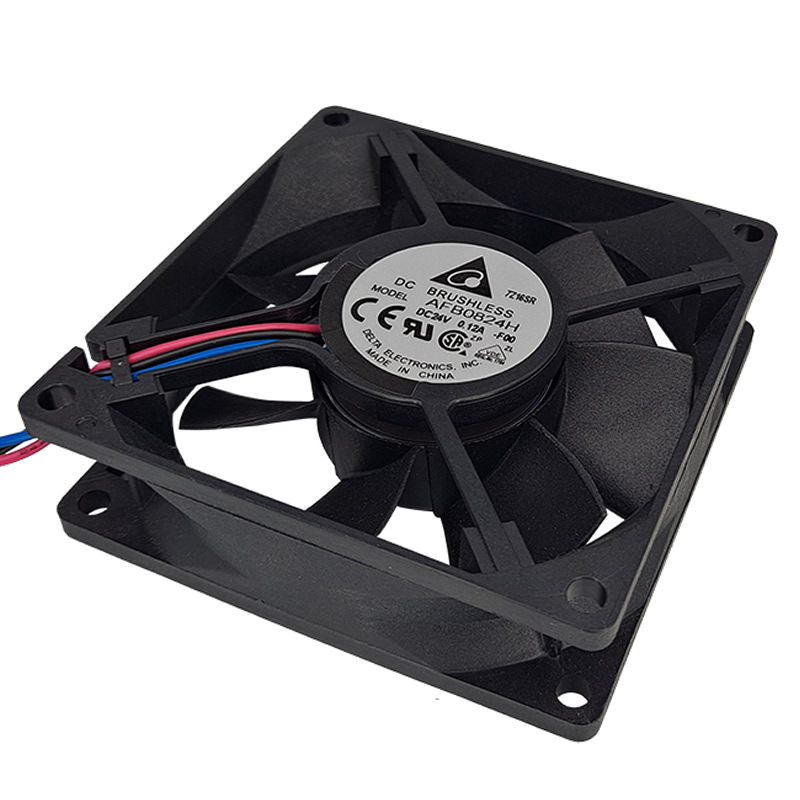

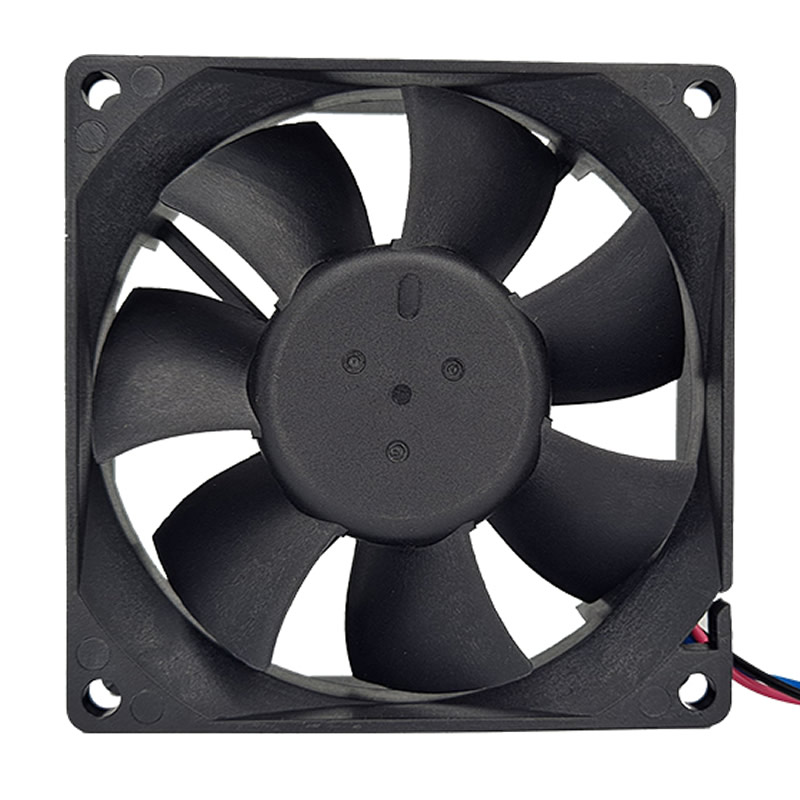

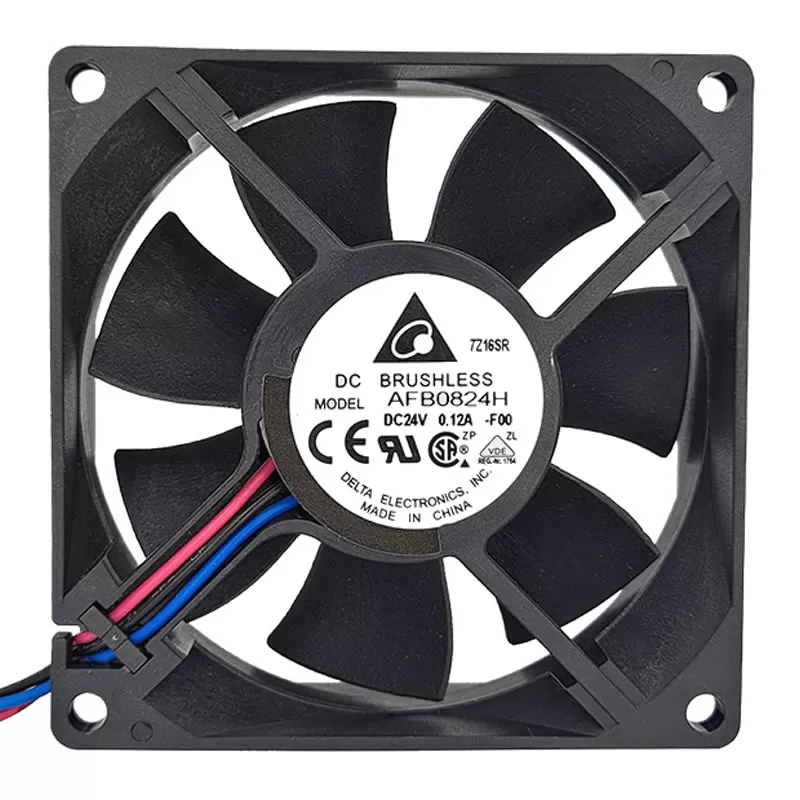

AFB0824H-F00 Delta 24VDC 80x80x25.40mm 35.3CFM 0.159inH2O(39.6Pa) Ball 31dB(A) 1.68W 3000RPM 3 Wire Leads Locked Rotor Protection, Speed Sensor (Tach) DC Fan
Specifications
| Part Number | AFB0824H-F00 |
|---|---|
| Manufacturer | Delta Electronics |
| Bearing Type | Ball Bearing |
| Dimensions | 80x80x25.40 mm |
| Series | AFB |
| Voltage Rating | 24 VDC |
| Air Flow | 35.3 CFM |
| Air Flow (m3) | 0.988 m³/min |
| Static Pressure | 0.159 in H2O (39.6 Pa) |
| Features | Locked Rotor Protection, Speed Sensor (Tach) |
| Fan Type | DC |
| Noise Level | 31 dB(A) |
| Power Rating | 1.68 W |
| Fan Speed | 3000 RPM |
| Termination | 3 Wire Leads |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Approval Agency | CE, CSA, UL, VDE |
| Weight | 0.176 lb (80.00 g) |
| Shipping Weight | 0.25 kg |
| Product PDF | AFB0824H-F00-Delta.pdf |
