Description

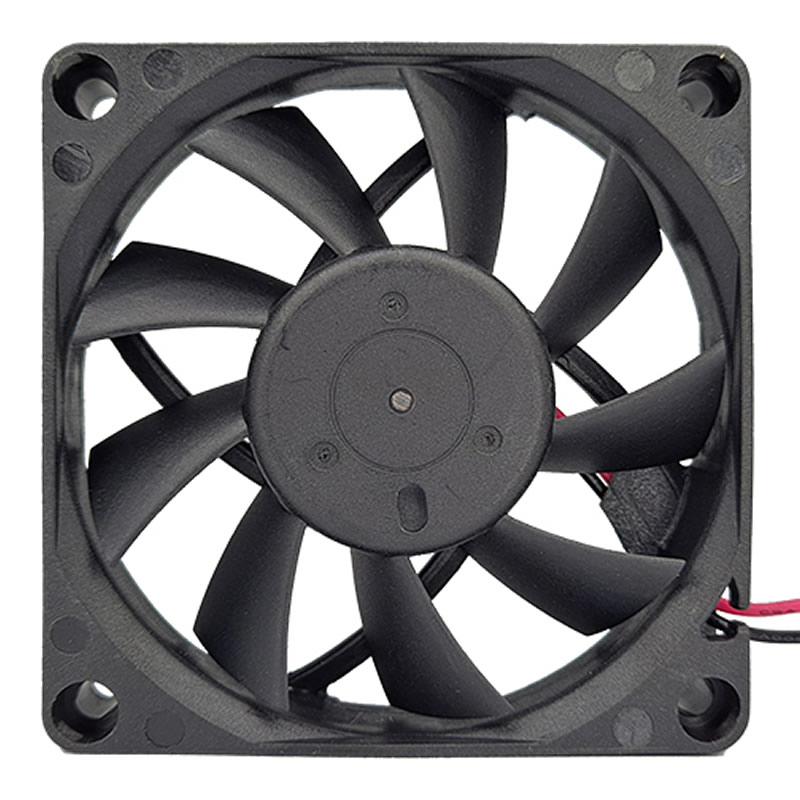

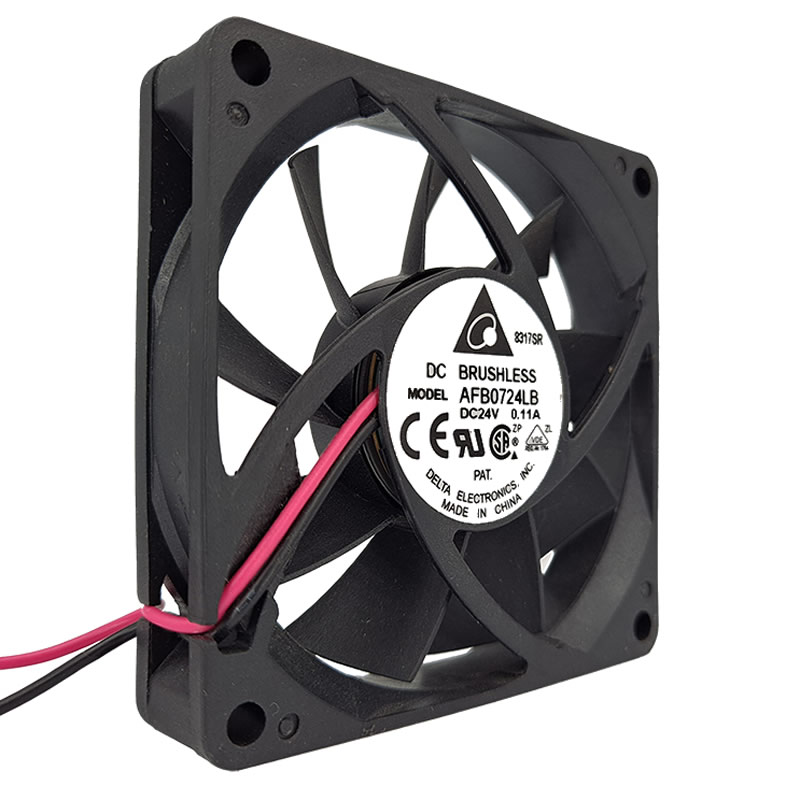

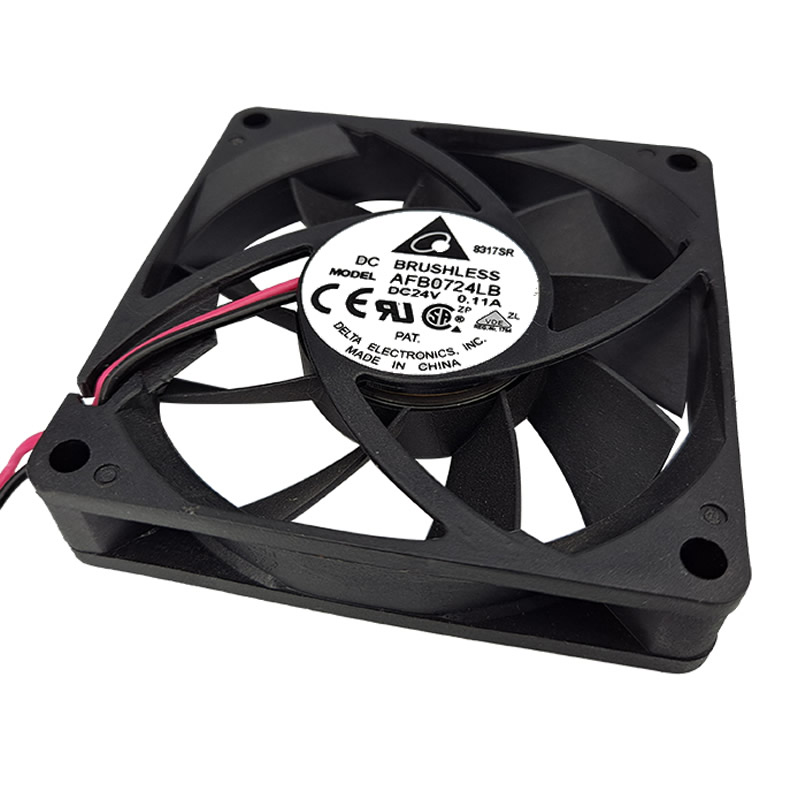

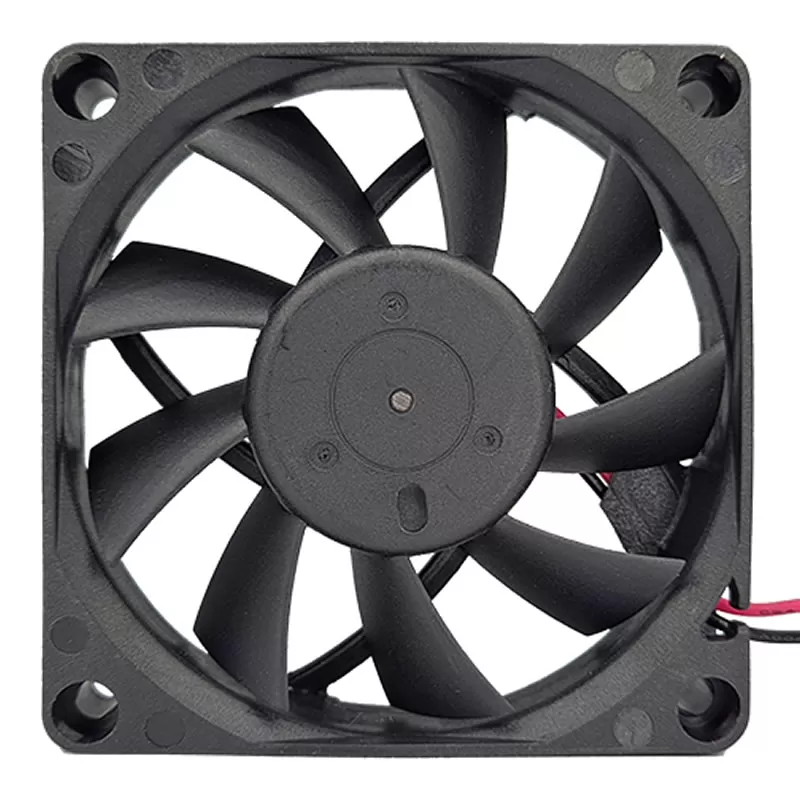

AFB0724LB Delta 70x70x15mm Ball 24VDC 23.38CFM(0.662m3/min) 0.089inchH2O(2.27mmH2O) 26.5dB(A) 1.44W 2800RPM 2wireleads fan
Specifications
| Part Number | AFB0724LB |
|---|---|
| Termination | 2 wire leads |
| Approval Agency | CE, CSA, UL, VDE |
| Features | Locked Rotor Protection |
| Series | AFB |
| Air Flow (m3) | 0.662 m3/min |
| Dimensions | 70x70x15 mm |
| Fan Type | DC |
| Fan Speed | 2800 RPM |
| Manufacturer | Delta Electronics |
| Power Rating | 1.44 W |
| Noise Level | 26.5 dB(A) |
| Static Pressure | 0.089 inchH2O (2.27 mmH2O) |
| Air Flow | 23.38 CFM |
| Voltage Rating | 24 VDC |
| Bearing Type | Ball Bearing |
| Weight | 0.104 lb (47.17 g) |
| Category | Axial |
| Current Rating | 0.06 A |
| Operating Voltage | 14 ~ 27.6 VDC |
| Material Frame | Plastic |
| Shipping Weight | 0.25 kg |
| Product PDF | AFB0724LB-Delta.pdf |
