Description

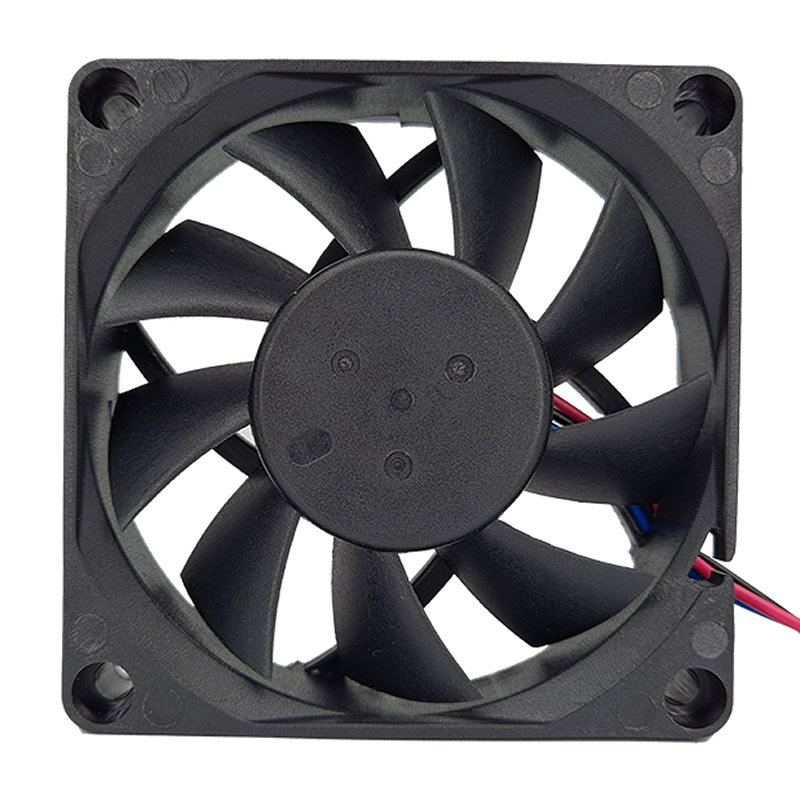

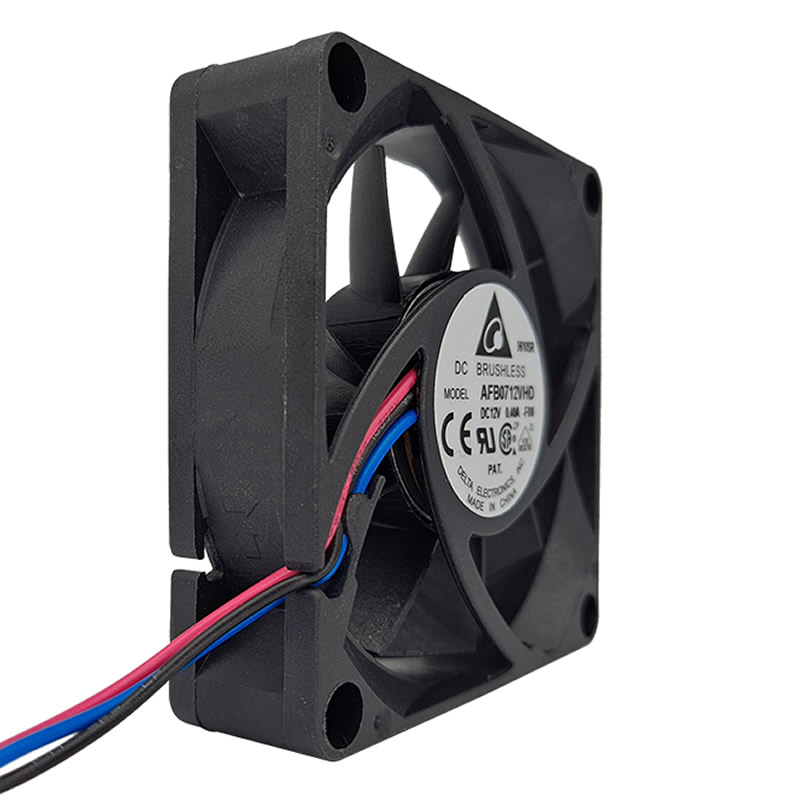

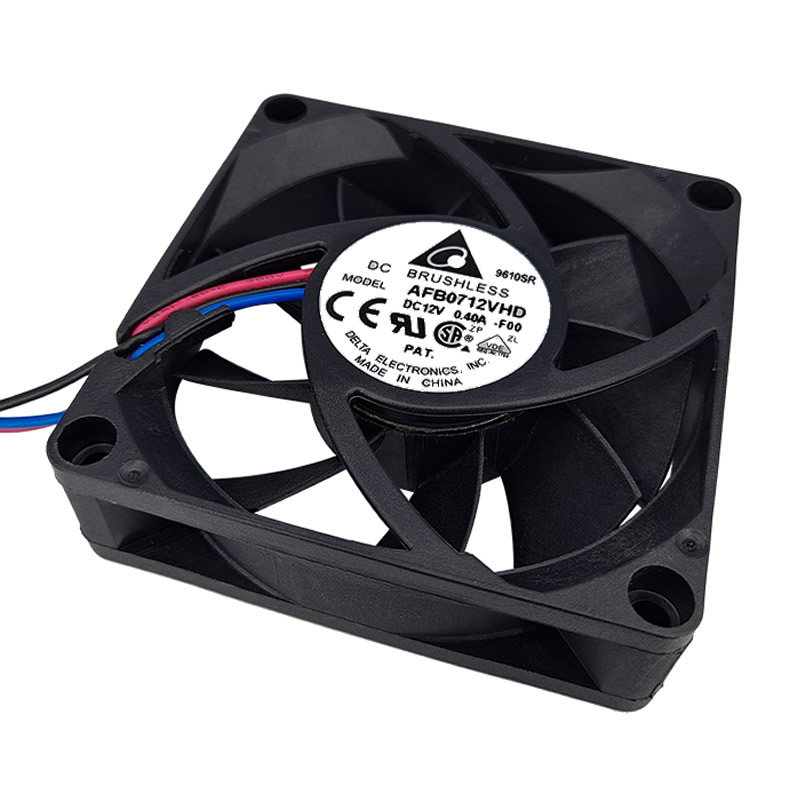

AFB0712VHD-F00 Delta 12VDC 70x70x20mm 46.9CFM 0.285inH2O(71.0Pa) Ball 44.3dB(A) 4.2W 5000RPM 3 Wire Leads Locked Rotor Protection, Speed Sensor (Tach) DC Fan
Specifications
| Model | AFB0712VHD-F00 |
|---|---|
| Manufacturer | Delta Electronics |
| Dimensions | 70x70x20 mm |
| Bearing Type | Ball Bearing |
| Series | AFB |
| Voltage Rating | 12 VDC |
| Air Flow | 46.9 CFM |
| Air Flow (m3) | 1.31 m³/min |
| Static Pressure | 0.285 in H2O (71.0 Pa) |
| Features | Locked Rotor Protection, Speed Sensor (Tach) |
| Fan Type | DC |
| Noise Level | 44.3 dB(A) |
| Power Rating | 4.2 W |
| Fan Speed | 5000 RPM |
| Termination | 3 Wire Leads |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Approval Agency | CE, CSA, UL, VDE |
| Weight | 0.154 lb (69.85 g) |
| Current Rating | 0.40 A |
| Number of blades | 9 |
| Subcategory | DC axial fan |
| Shipping Weight | 0.5 kg |
| Product PDF | AFB0712VHD-F00-Delta.pdf |
