Description

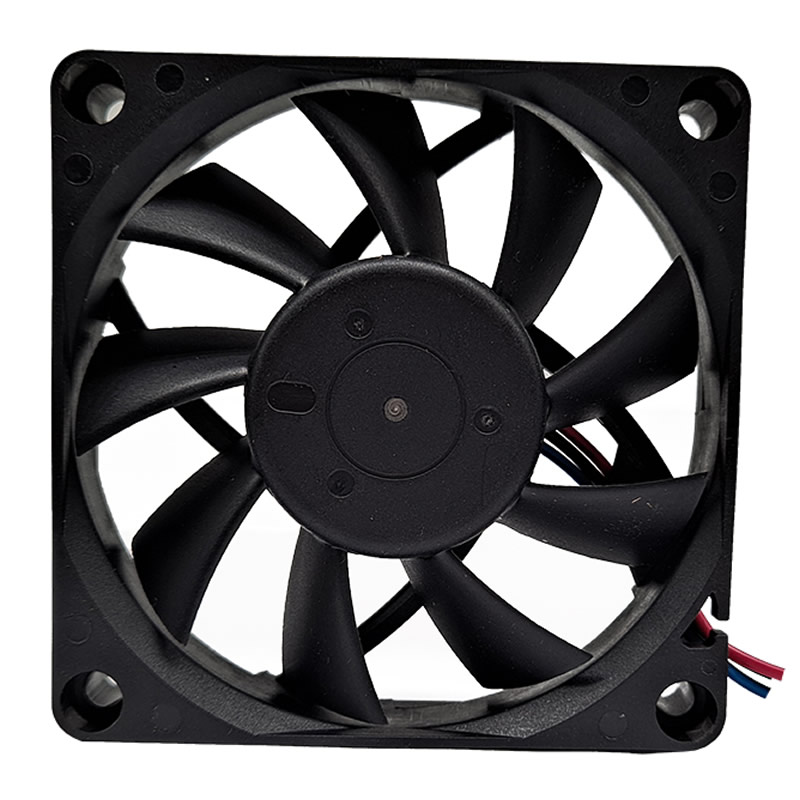

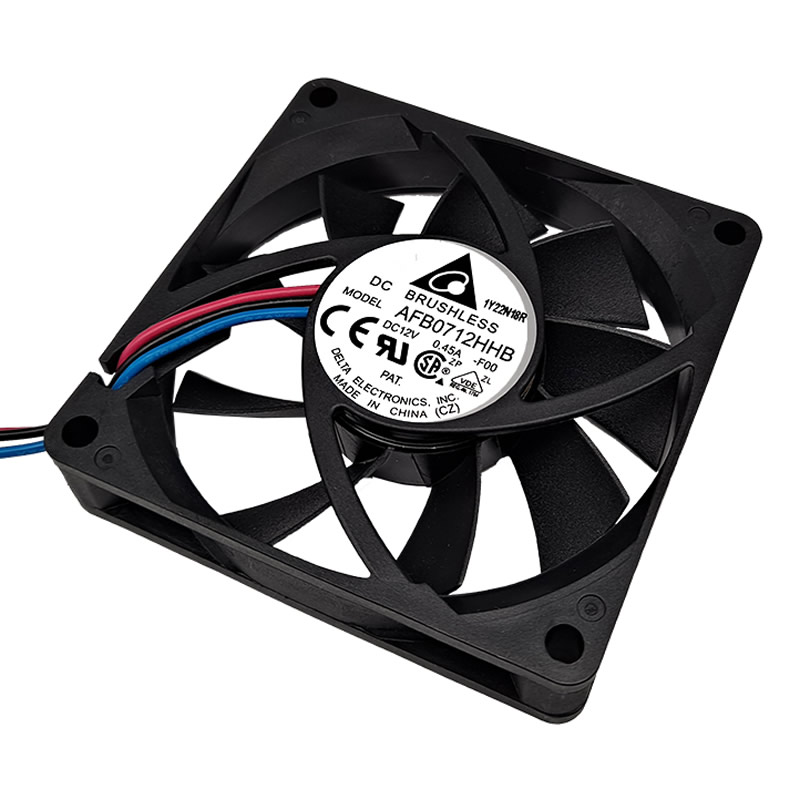

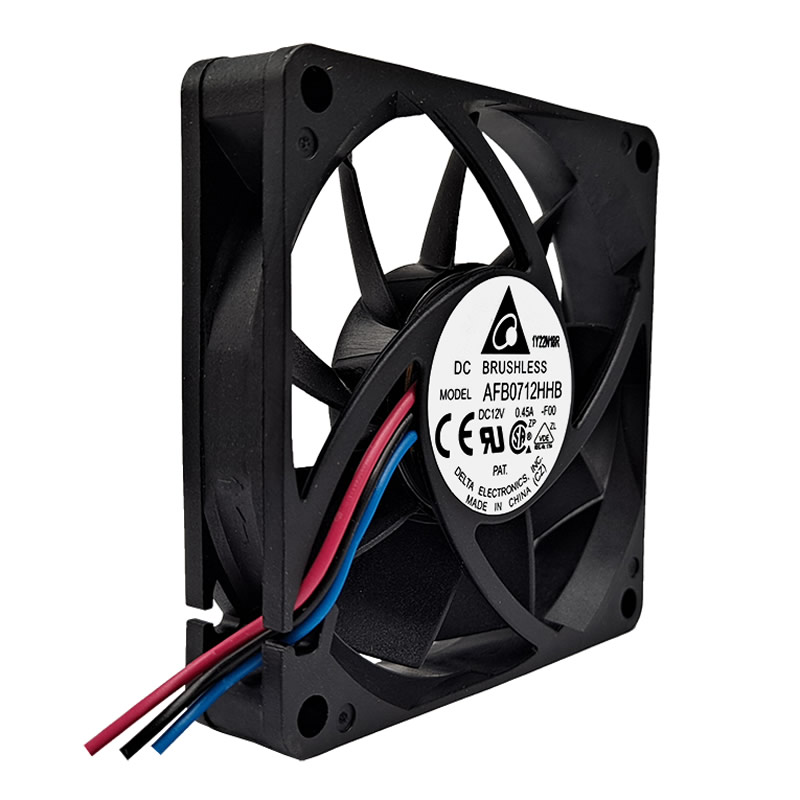

AFB0712HHB-F00 Delta 70x70x15mm Ball 12VDC 37.54CFM(1.063m3/min) 0.210inchH2O(5.33mmH2O) 38.5dB(A) 3.12W 4300RPM 3wireleads fan
Specifications
| Model | AFB0712HHB-F00 |
|---|---|
| Manufacturer | Delta Electronics |
| Dimensions | 70x70x15 mm |
| Category | Axial |
| Material Blade | Plastic |
| Material Frame | Plastic |
| Operating Voltage | 4 ~ 13.8 VDC |
| Current Rating | 0.45 A |
| Lifetime @ Temp | 70000 Hrs @ 40⁰C |
| Fan Speed | 4300 RPM |
| Bearing Type | Ball Bearing |
| Voltage Rating | 12 VDC |
| Air Flow | 37.54 CFM |
| Static Pressure | 0.210 inchH2O (5.33 mmH2O) |
| Noise Level | 38.5 dB(A) |
| Power Rating | 3.12 W |
| Fan Type | DC |
| Termination | 3 wire leads |
| Air Flow (m3) | 1.063 m3/min |
| Series | AFB |
| Features | Locked Rotor Protection, Speed Sensor (Tach) |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Approval Agency | CE, CSA, UL, VDE |
| Weight | 0.104 lb (47.17 g) |
| Shipping Weight | 0.25 kg |
| Product PDF | AFB0712HHB-F00-Delta.pdf |
