Description

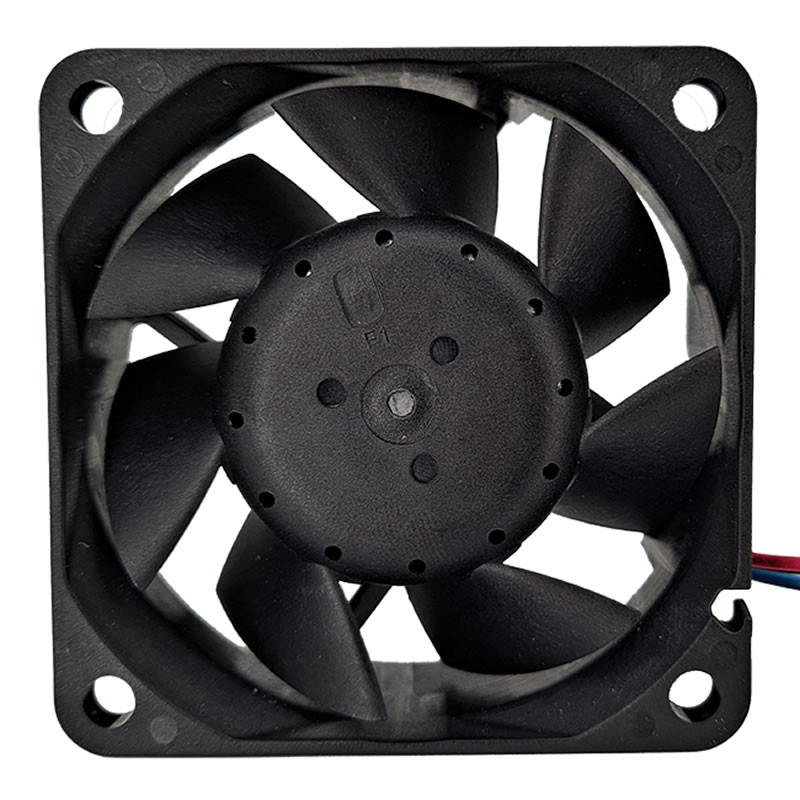

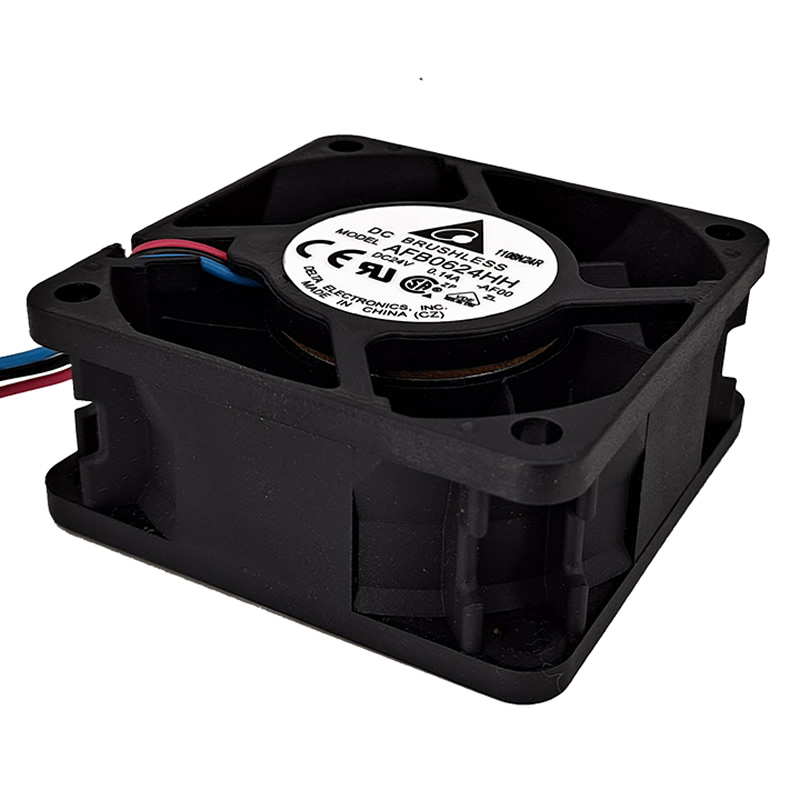

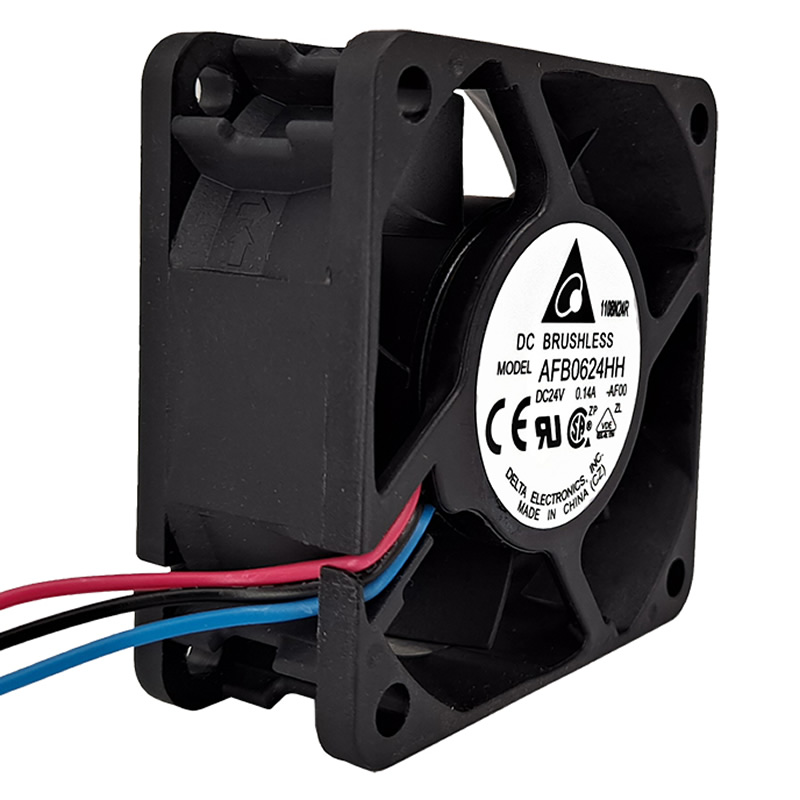

AFB0624HH-AF00 Delta 24VDC 60x60x25.40mm 27.6CFM 0.294inH2O(73.2Pa) Ball 40dB(A) 2.64W 5000RPM 3 Wire Leads Locked Rotor rotection Speed Sensor (Tach) DC Fan
Specifications
| Part Number | AFB0624HH-AF00 |
|---|---|
| Manufacturer | Delta Electronics |
| Dimensions | 60x60x25.40 mm |
| Bearing Type | Ball Bearing |
| Series | AFB |
| Voltage Rating | 24 VDC |
| Air Flow | 27.6 CFM |
| Air Flow (m3) | 0.773 m³/min |
| Static Pressure | 0.294 in H2O (73.2 Pa) |
| Features | Locked Rotor Protection, Speed Sensor (Tach) |
| Fan Type | DC |
| Noise Level | 40 dB(A) |
| Power Rating | 2.64 W |
| Fan Speed | 5000 RPM |
| Termination | 3 Wire Leads |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Approval Agency | CE, CSA, UL, VDE |
| Weight | 0.176 lb (80.00 g) |
| Shipping Weight | 0.25 kg |
| Product PDF | AFB0624HH-AF00-Delta.pdf |
