Description

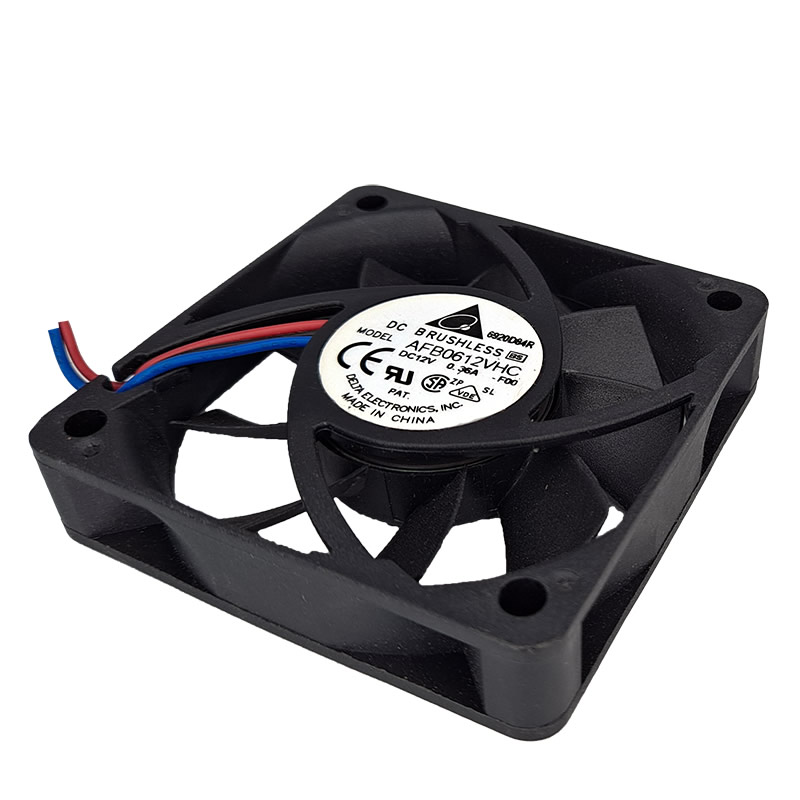

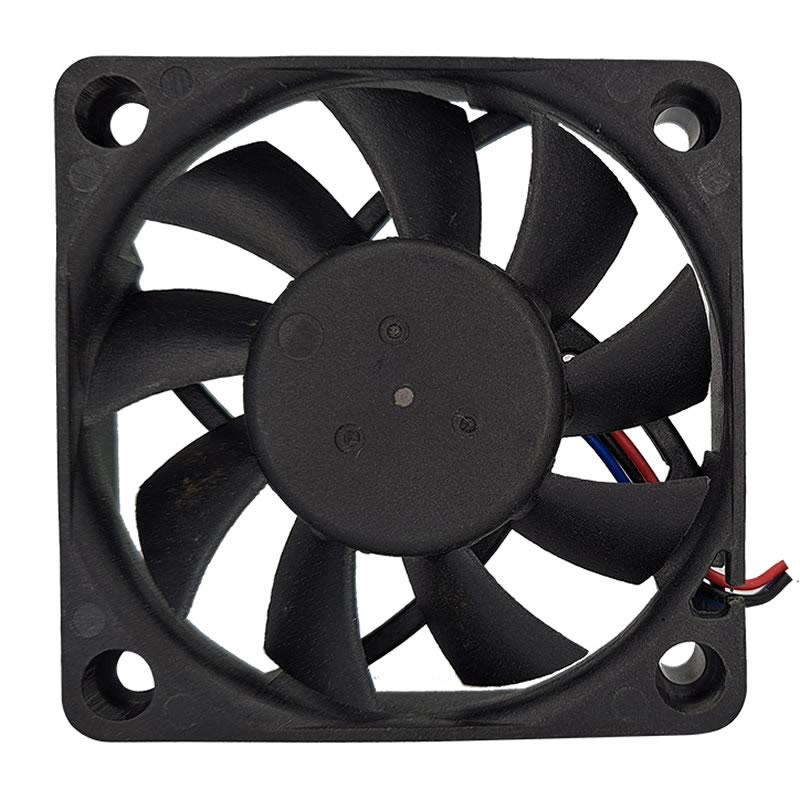

AFB0612VHC-F00 Delta 12VDC 60x60x13mm 27.7CFM 0.252inH2O(62.8Pa) Ball 38dB(A) 2.88W 5400RPM 3 Wire Leads Locked Rotor Protection, Speed Sensor (Tach) DC Fan
Specifications
| Part Number | AFB0612VHC-F00 |
|---|---|
| Manufacturer | Delta Electronics |
| Series | AFB |
| Voltage Rating | 12 VDC |
| Dimensions | 60x60x13 mm |
| Air Flow | 27.7 CFM |
| Air Flow (m3) | 0.776 m³/min |
| Static Pressure | 0.252 in H2O (62.8 Pa) |
| Bearing Type | Ball Bearing |
| Fan Type | DC |
| Features | Locked Rotor Protection, Speed Sensor (Tach) |
| Noise Level | 38 dB(A) |
| Power Rating | 2.88 W |
| Fan Speed | 5400 RPM |
| Termination | 3 Wire Leads |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Approval Agency | CE, CSA, UL, VDE |
| Weight | 0.074 lb (33.56 g) |
| Shipping Weight | 0.25 kg |
| Product PDF | AFB0612VHC-F00-Delta.pdf |
