Description

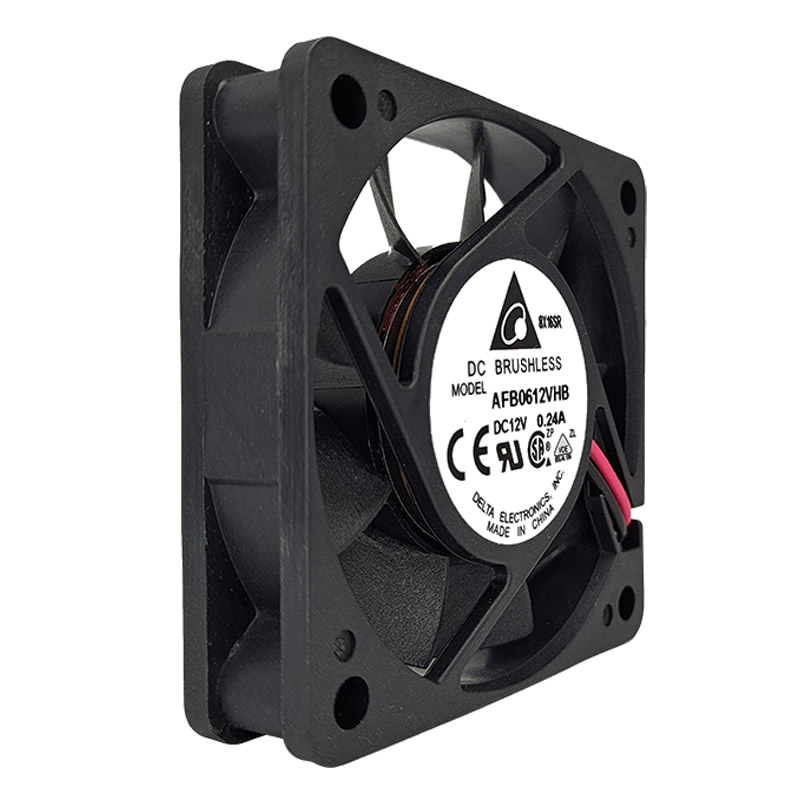

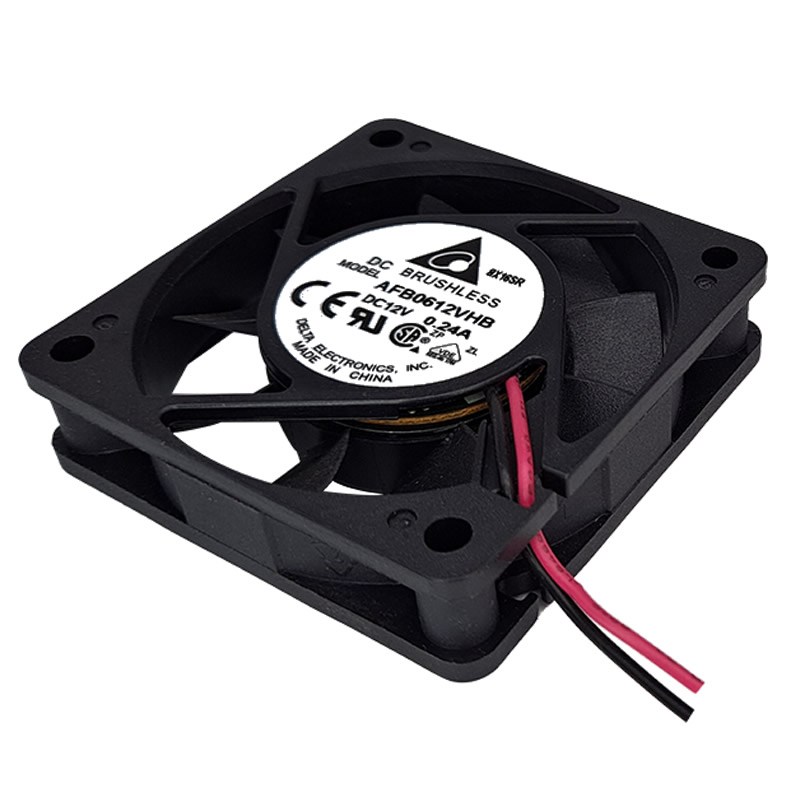

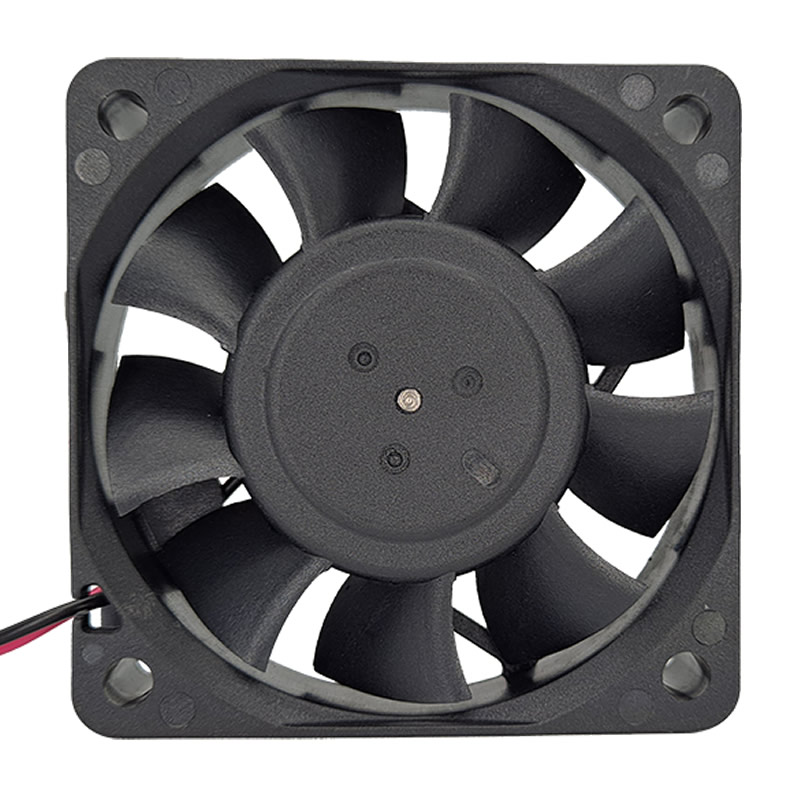

AFB0612VHB Delta 12VDC 60x60x15mm 19.4CFM 0.240inH2O(59.8Pa) Ball 37dB(A) 1.92W 5000RPM 2 Wire Leads Locked Rotor Protection DC Fan
Specifications
| Part Number | AFB0612VHB |
|---|---|
| Manufacturer | Delta Electronics |
| Bearing Type | Ball Bearing |
| Series | AFB |
| Voltage Rating | 12 VDC |
| Dimensions | 60x60x15 mm |
| Air Flow | 19.4 CFM |
| Air Flow (m3) | 0.543 m³/min |
| Static Pressure | 0.240 in H2O (59.8 Pa) |
| Features | Locked Rotor Protection |
| Fan Type | DC |
| Noise Level | 37 dB(A) |
| Power Rating | 1.92 W |
| Fan Speed | 5000 RPM |
| Termination | 2 Wire Leads |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Approval Agency | CE, CSA, UL, VDE |
| Weight | 0.098 lb (44.45 g) |
| Shipping Weight | 0.25 kg |
| Product PDF | AFB0612VHB-Delta.pdf |
