Description

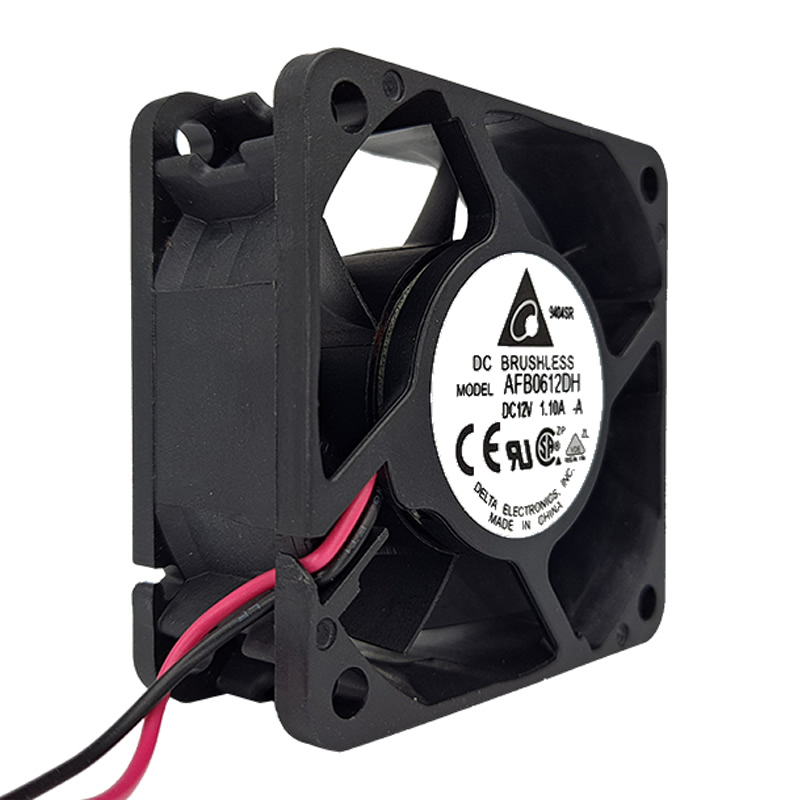

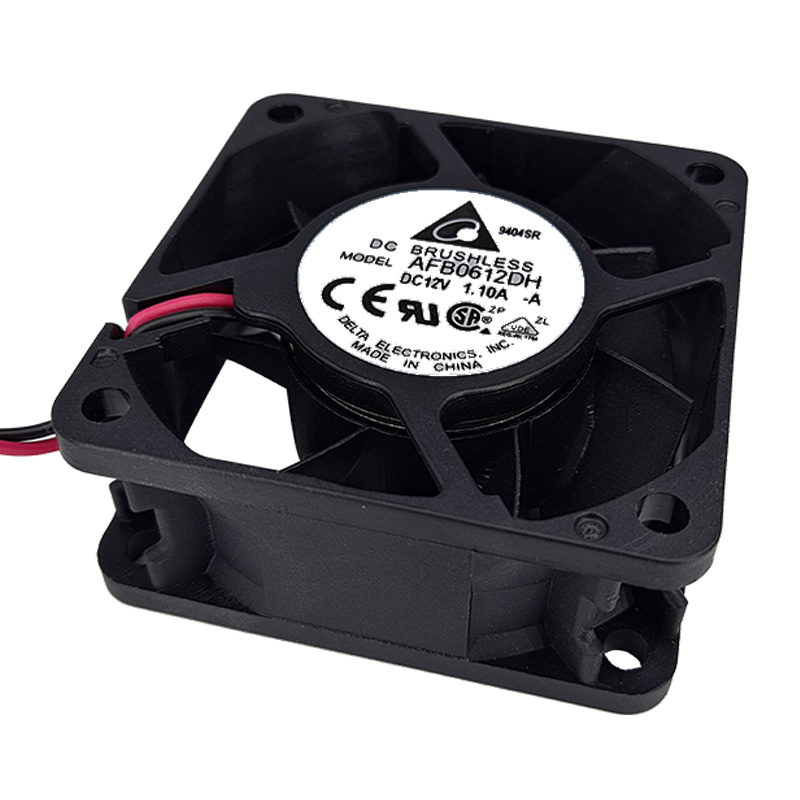

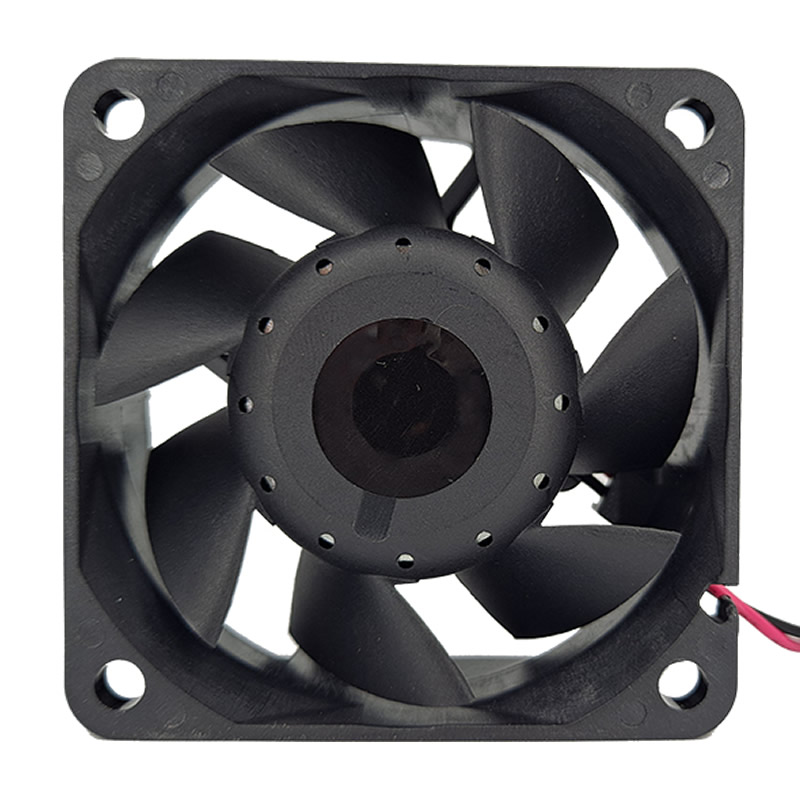

AFB0612DH-A Delta 60x60x25.40mm Ball 12VDC 50.40CFM(1.427m3/min) 0.926inchH2O(23.52mmH2O) 55.0dB(A) 10.08W 9000RPM 2wireleads fan
Specifications
| Part Number | AFB0612DH-A |
|---|---|
| Power Rating | 10.08 W |
| Approval Agency | CE, CSA, UL, VDE |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Features | Locked Rotor Protection |
| Series | AFB |
| Air Flow (m3) | 1.427 m3/min |
| Dimensions | 60x60x25.40 mm |
| Termination | 2 wire leads |
| Manufacturer | Delta Electronics |
| Fan Speed | 9000 RPM |
| Fan Type | DC |
| Static Pressure | 0.926 inchH2O (23.52 mmH2O) |
| Noise Level | 55.0 dB(A) |
| Air Flow | 50.40 CFM |
| Voltage Rating | 12 VDC |
| Bearing Type | Ball Bearing |
| Weight | 0.176 lb (80.00 g) |
| Category | Axial |
| Current Rating | 0.84 A |
| Operating Voltage | 7 ~ 13.2 VDC |
| Material Frame | Plastic |
| Material Blade | Plastic |
| Lifetime @ Temp | 70000 Hrs @ 40⁰C |
| Shipping Weight | 0.25 kg |
| Product PDF | AFB0612DH-A-Delta.pdf |
