Description

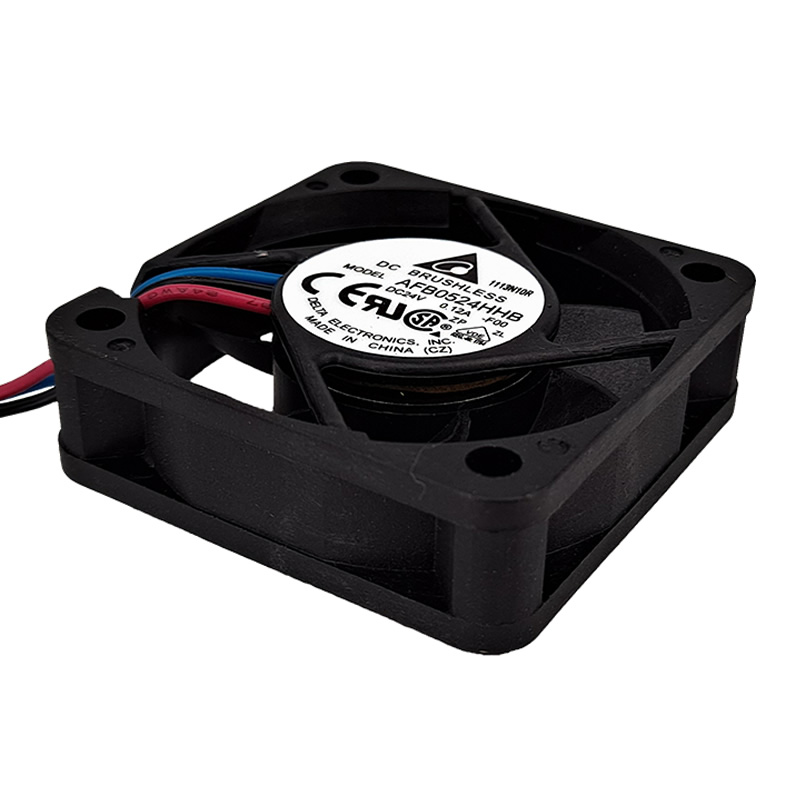

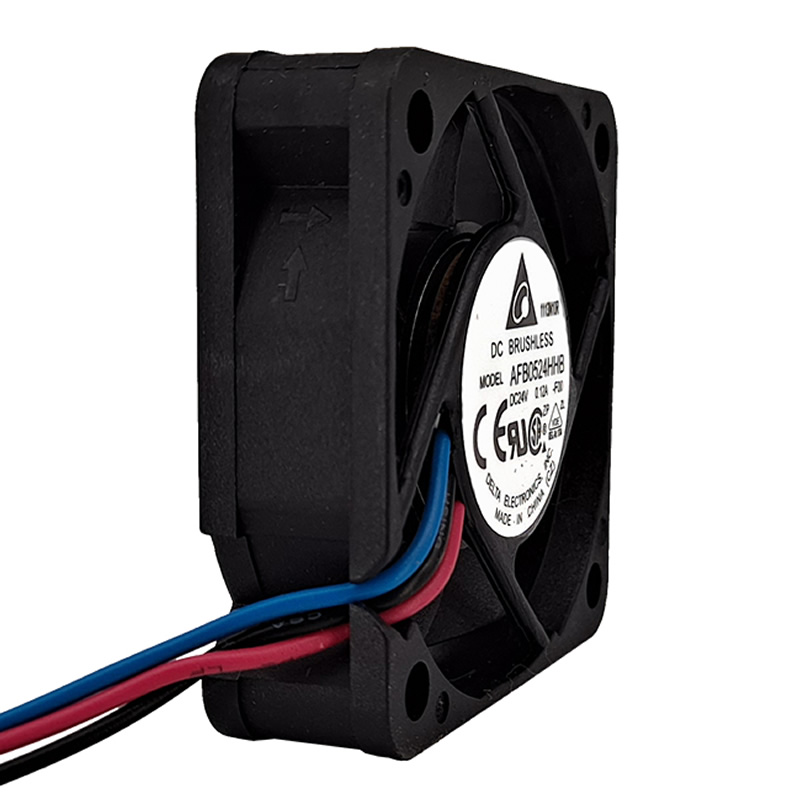

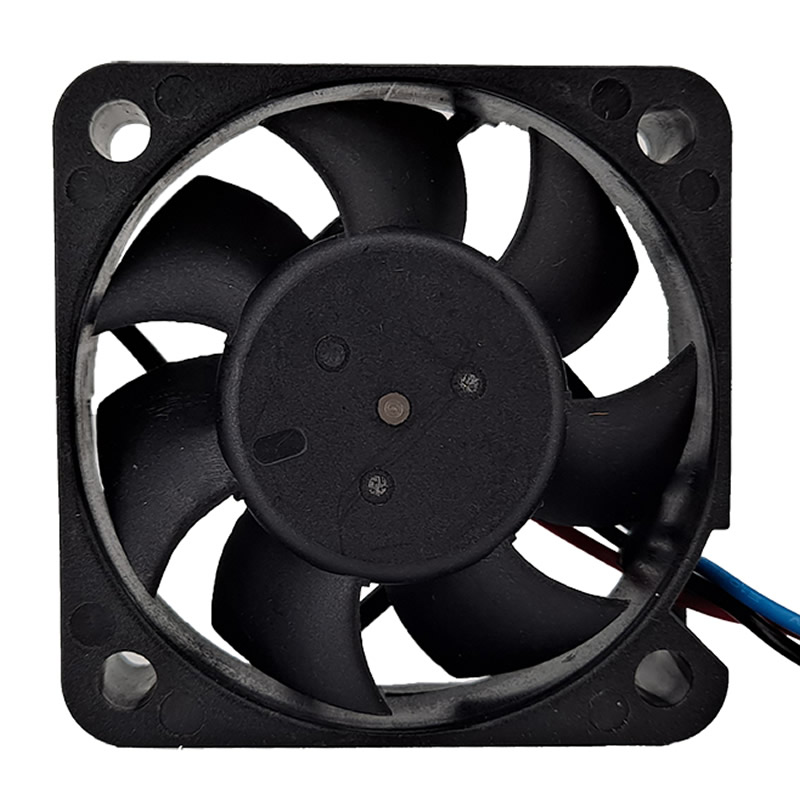

AFB0524HHB-F00 Delta 50x50x15mm Ball 24VDC 16.24CFM(0.460m3/min) 0.315inchH2O(8mmH2O) 36.0dB(A) 1.92W 6400RPM 3wireleads fan.
Delta AFB0524HHB-F00 is a DC brushless axial flow fan with a nominal voltage of 24VDC (operating voltage 14.0-27.6VDC), maximum input current of 0.12A, power of 2.88W, and rotational speed of 6400RPM. It delivers a maximum air flow of 0.460m³/min (minimum 0.410m³/min) and maximum static pressure of 8.00mmH₂O (minimum 6.44mmH₂O), with an average acoustic noise of 36.0dB(A) (maximum 39.0dB(A)). The frame and impeller are made of UL 94V-0 flame-retardant plastic, equipped with double ball bearings, weighing 32g, and rotating clockwise when viewed from the nameplate side. It uses UL 1007-F AWG#24 leads (red+ black- blue FG signal), operates at -10°C to 70°C, stores at -40°C to 75°C, and features locked rotor protection (preventing fire within 96h of lock-up) and reverse polarity protection, with a 70,000-hour lifespan at 40°C/15%-65%RH. Supporting FG speed signal output in open collector mode, it is suitable for high-efficiency cooling in small electronic devices.
Specifications
| Model | AFB0524HHB-F00 |
|---|---|
| Manufacturer | Delta Electronics |
| Dimensions | 50x50x15 mm |
| Power Rating | 1.92 W |
| Approval Agency | CE, CSA, UL, VDE |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Features | Locked Rotor Protection, Speed Sensor (Tach) |
| Series | AFB |
| Air Flow (m3) | 0.460 m3/min |
| Termination | 3 wire leads |
| Fan Speed | 6400 RPM |
| Fan Type | DC |
| Static Pressure | 0.315 inchH2O (8 mmH2O) |
| Noise Level | 36.0 dB(A) |
| Air Flow | 16.24 CFM |
| Voltage Rating | 24 VDC |
| Bearing Type | Ball Bearing |
| Weight | 0.071 lb (32.21 g) |
| Category | Axial |
| Current Rating | 0.12 A |
| Operating Voltage | 14 ~ 27.6 VDC |
| Material Frame | Plastic |
| Material Blade | Plastic |
| Lifetime @ Temp | 70000 Hrs @ 40°C |
| Subcategory | DC axial fan |
| Shipping Weight | 0.25 kg |
| Product PDF | AFB0524HHB-F00-Delta.pdf |
