Description

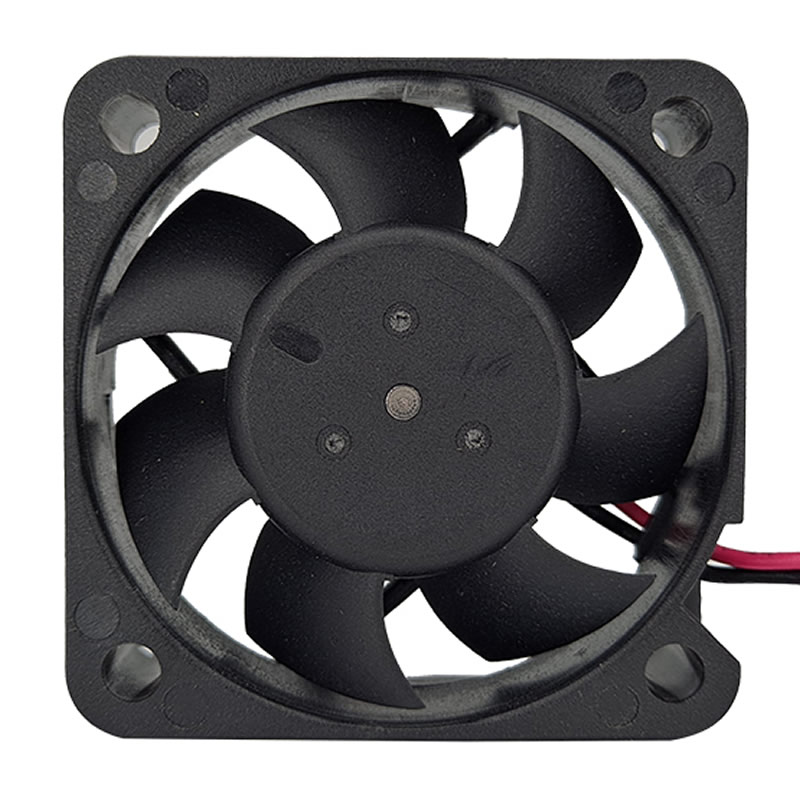

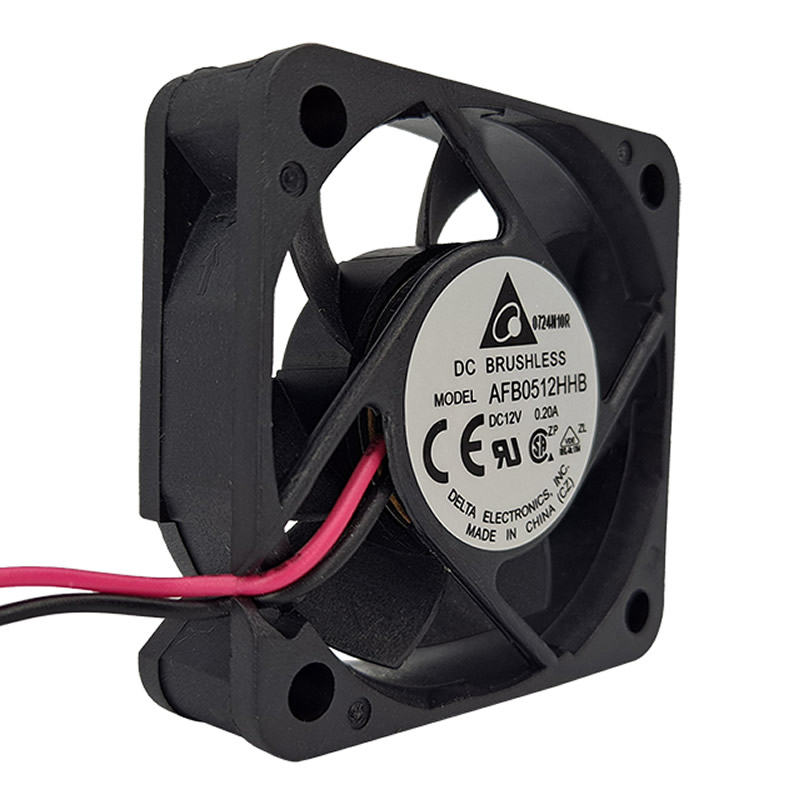

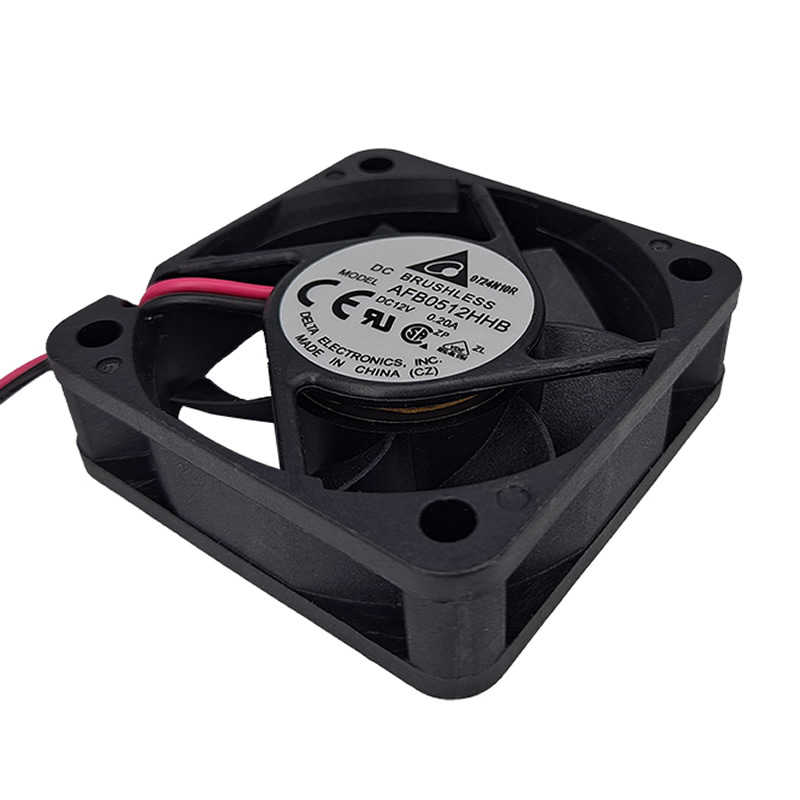

AFB0512HHB Delta 50x50x15mm Ball 12VDC 16.24CFM(0.460m3/min) 0.315inchH2O(8mmH2O) 36.0dB(A) 1.56W 6400RPM 2wireleads fan
Specifications
| Part Number | AFB0512HHB |
|---|---|
| Manufacturer | Delta Electronics |
| Dimensions | 50x50x15 mm |
| Power Rating | 1.56 W |
| Approval Agency | CE, CSA, UL, VDE |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Features | Locked Rotor Protection |
| Series | AFB |
| Air Flow (m3) | 0.460 m3/min |
| Termination | 2 wire leads |
| Fan Speed | 6400 RPM |
| Fan Type | DC |
| Static Pressure | 0.315 inchH2O (8 mmH2O) |
| Noise Level | 36.0 dB(A) |
| Air Flow | 16.24 CFM |
| Voltage Rating | 12 VDC |
| Bearing Type | Ball Bearing |
| Weight | 0.071 lb (32.21 g) |
| Category | Axial |
| Current Rating | 0.12 A |
| Operating Voltage | 7 ~ 13.8 VDC |
| Material Frame | Plastic |
| Material Blade | Plastic |
| Lifetime @ Temp | 70000 Hrs @ 40⁰C |
| Number of blades | 7 |
| Subcategory | DC axial fan |
| Shipping Weight | 0.25 kg |
| Product PDF | AFB0512HHB-Delta.pdf |
