Description

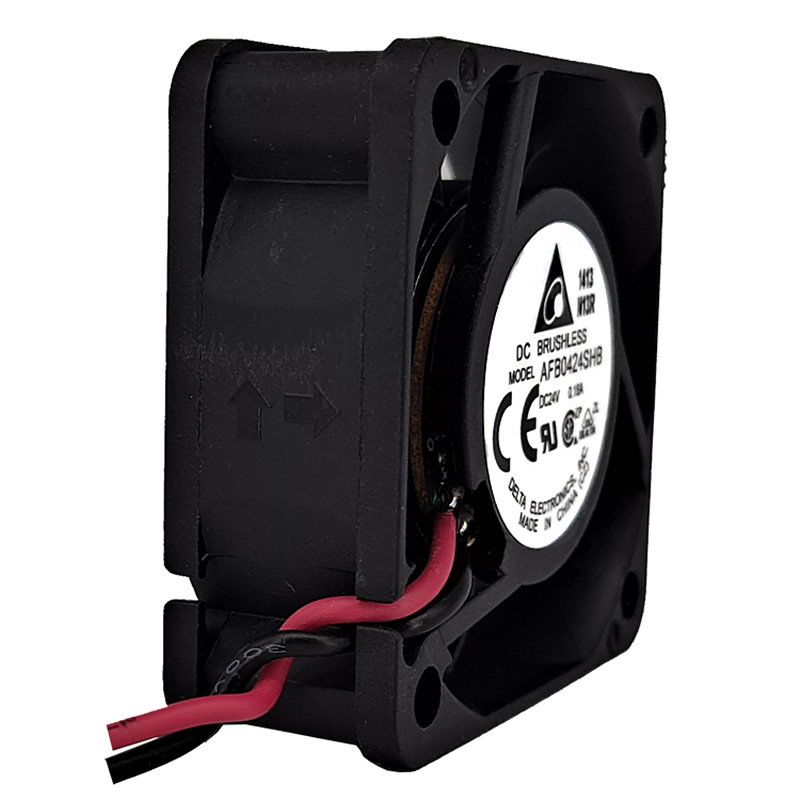

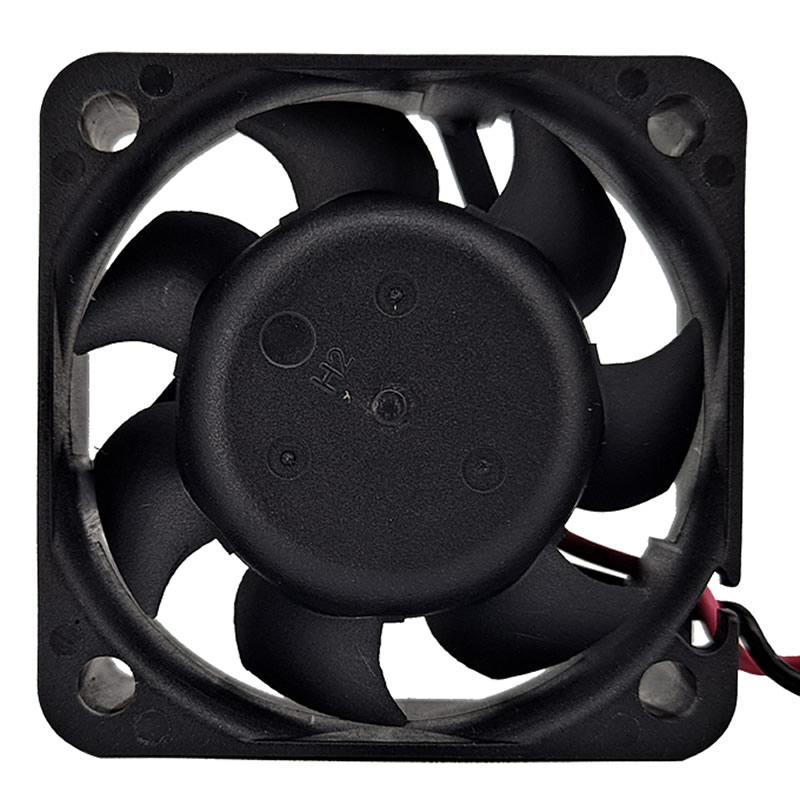

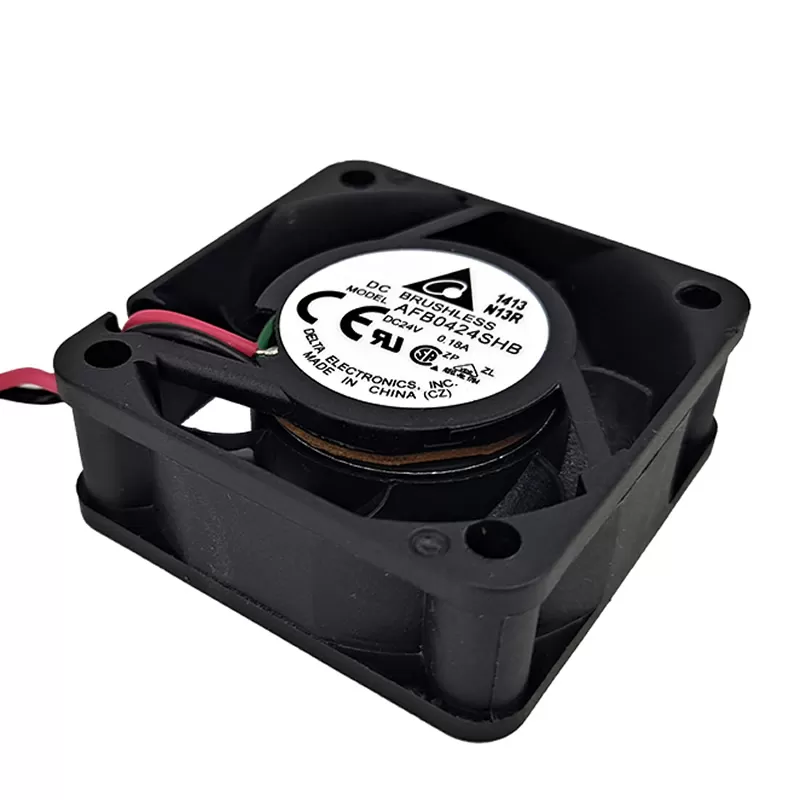

AFB0424SHB Delta 40x40x15mm Ball 24VDC 0.18A 14.83CFM(0.420m3/min) 0.601inchH2O 41.5dB(A) 2.88W 11000RPM 2wireleads fan
Specifications
| Model | AFB0424SHB |
|---|---|
| Manufacturer | Delta Electronics |
| Dimensions | 40x40x15 mm |
| Power Rating | 2.88 W |
| Approval Agency | CE, CSA, UL, VDE |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Features | Locked Rotor Protection |
| Series | AFB |
| Air Flow (m3) | 0.420 m3/min |
| Termination | 2 wire leads |
| Fan Speed | 11000 RPM |
| Fan Type | DC |
| Static Pressure | 0.601 inchH2O (15.26 mmH2O) |
| Noise Level | 41.5 dB(A) |
| Air Flow | 14.83 CFM |
| Voltage Rating | 24 VDC |
| Bearing Type | Ball Bearing |
| Weight | 0.057 lb (25.85 g) |
| Category | Axial |
| Current Rating | 0.18 A |
| Operating Voltage | 14 ~ 27.6 VDC |
| Material Frame | Plastic |
| Material Blade | Plastic |
| Lifetime @ Temp | 70000 Hrs @ 40°C |
| Number of blades | 7 |
| Subcategory | DC axial fan |
| Shipping Weight | 0.25 kg |
| Product PDF | AFB0424SHB-Delta.pdf |
