AD0405HB-G70 ADDA

Description

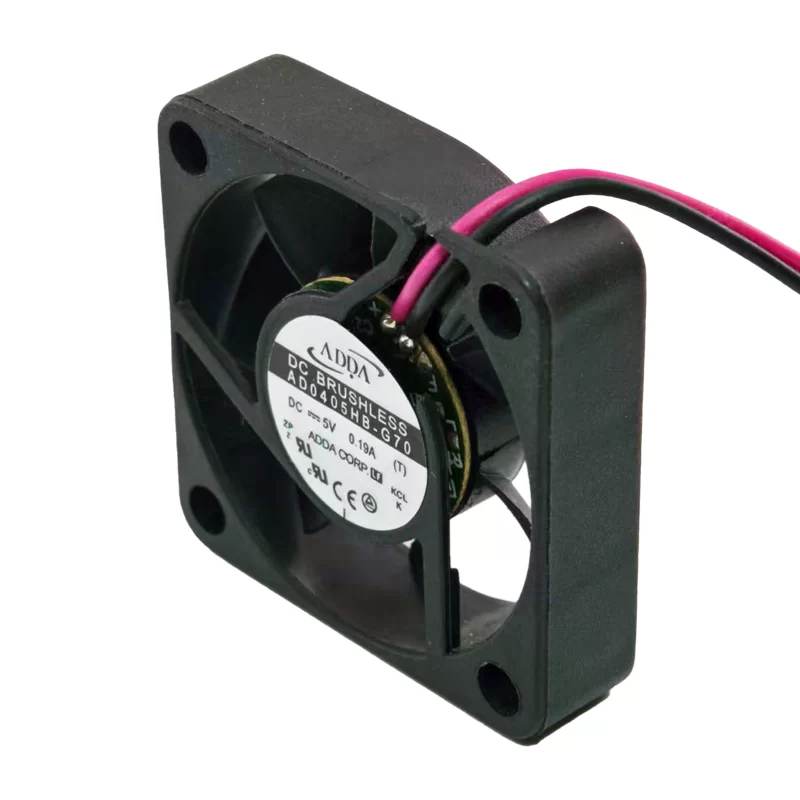

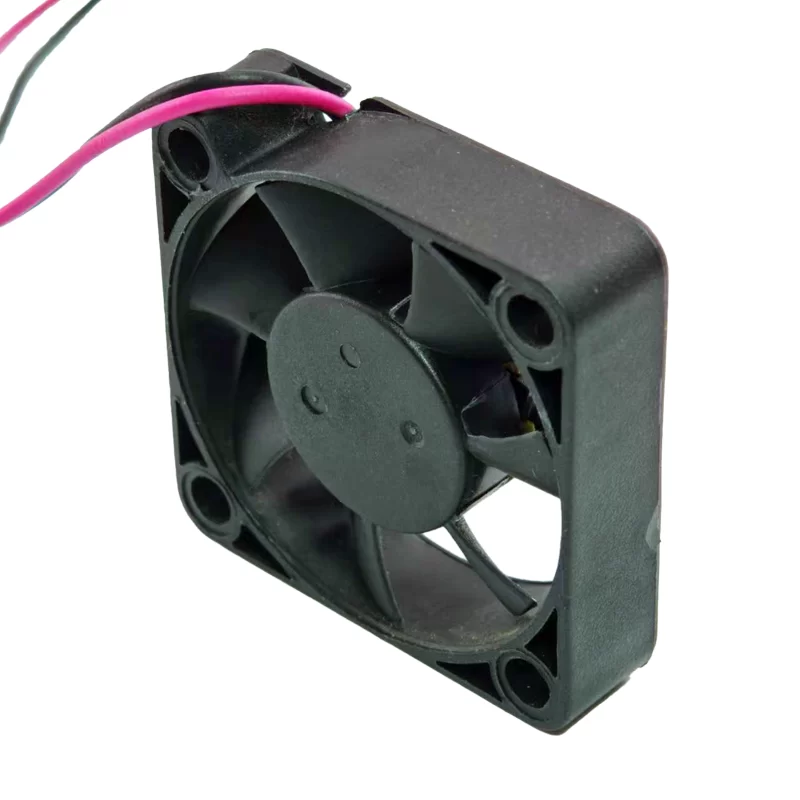

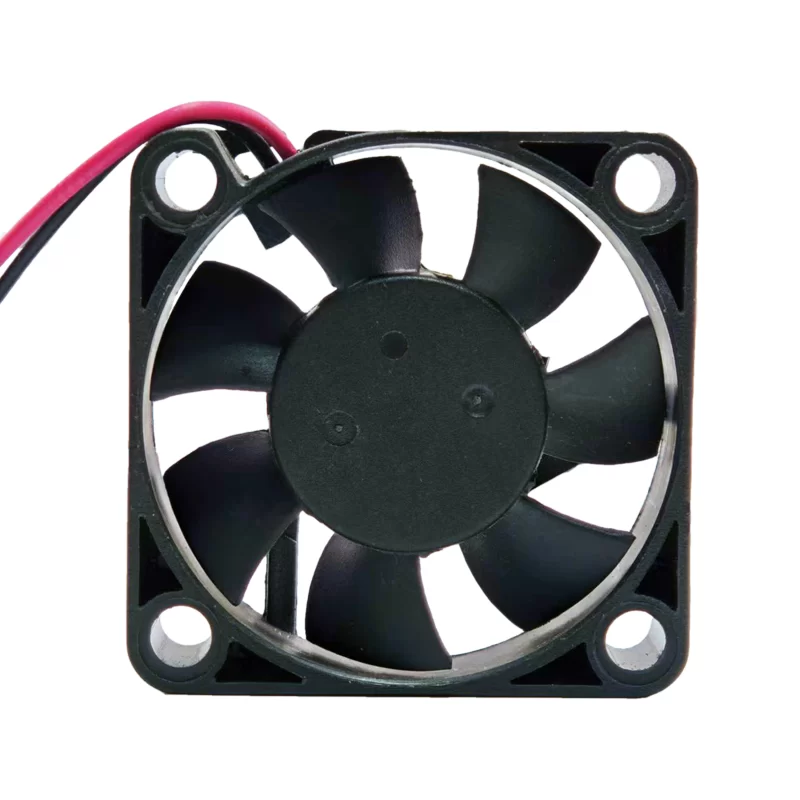

The ADDA AD0405HB-G70 is a high-performance DC Axial Fan with dimensions of 40×40×10 mm. Operating at 5 V, this High Speed fan has a Rated Current of 0.19 A and a Power Consumption of 0.95 W. It operates at a Nominal Speed of 6,000 RPM, delivering an Airflow of 11.55 m3/h (6.8 CFM) and Static Pressure of 24.9 Pa (0.100 inAq), with a Noise Level of 25 dB(A). It utilizes a durable Ball Bearing system and is certified by UL, cUL, TUV, and CE.

AD0405HB-G70 Fan Parameters
Model: AD0405HB-G70
Manufacturer: ADDA
Type: DC Axial Fan
Dimensions: 40×40×10 mm
Operating Voltage: 5 V
Rated Current: 0.19 A
Power Consumption: 0.95 W
Nominal Speed: 6,000 RPM
Airflow: 11.55 m3/h (6.8 CFM)
Static Pressure: 24.9 Pa (0.100 inAq)
Noise Level: 25 dB(A)
Bearing Type: Ball Bearing
Motor Design: Brushless DC Motor
Weight: 24 g
Termination: 2-Wire Leads
Frame Material: Plastic (UL94V-0)
Impeller Material: Plastic (UL94V-0)
Operating Temperature: −10 ∘C to +70 ∘C
Life Expectancy: 70,000 hours
Safety Approvals: UL, cUL, TUV, CE

Application
The AD0405HB-G70 is a high-reliability, high-speed 5 V fan ideal for cooling heat-sensitive components in confined spaces. Its slim 10 mm form factor, combined with a long-life Ball Bearing system, makes it a preferred choice for network switches, mini-servers, industrial control boards, and any application where durability and consistent high performance are essential.
