Description

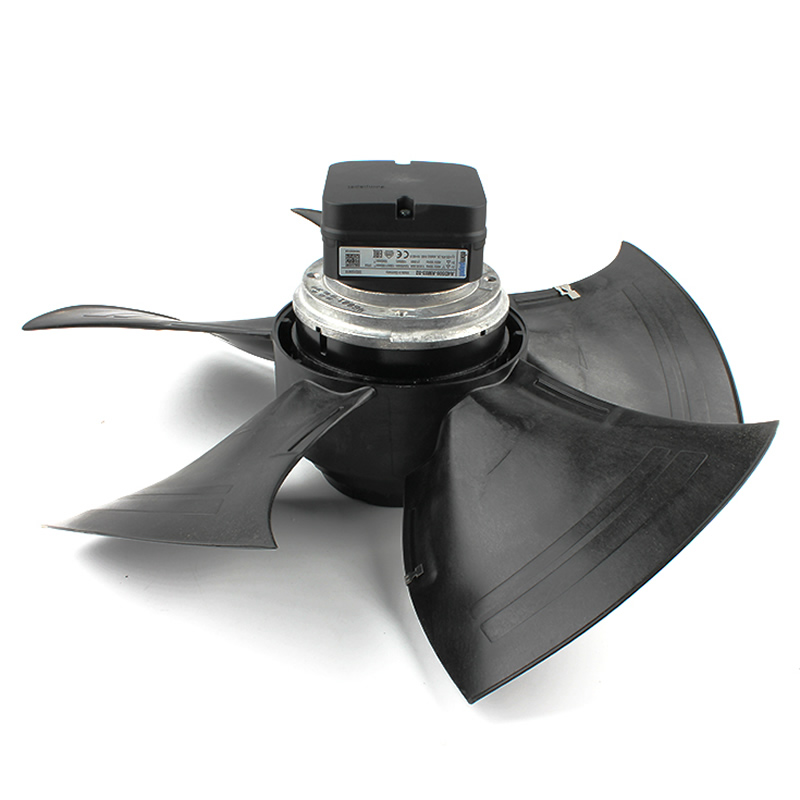

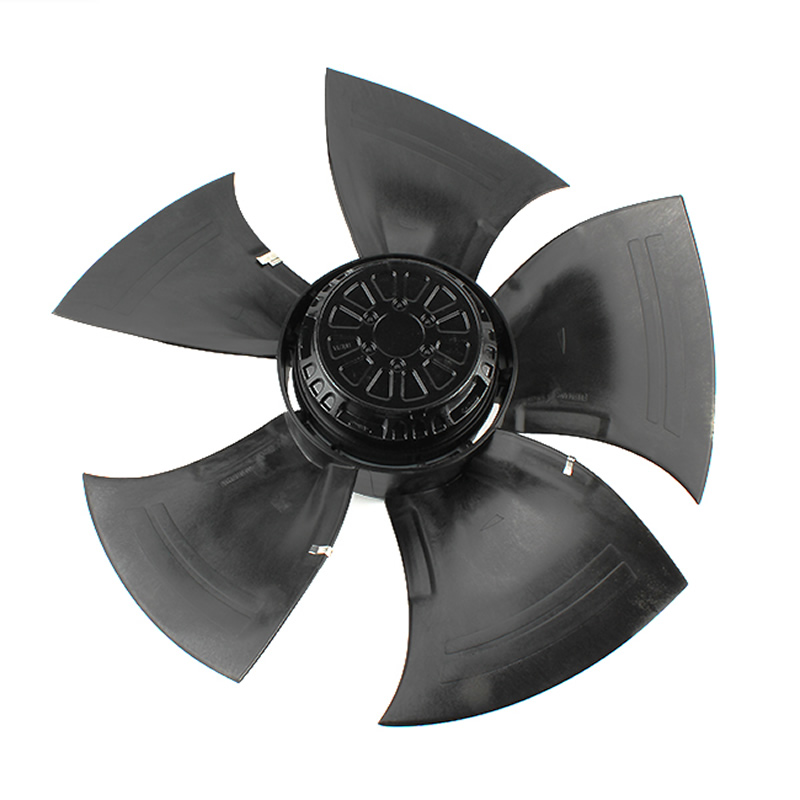

A4D500-AM03-02 ebmpapst 500mm 400V/460V IP54 Ball Bearing axial fan

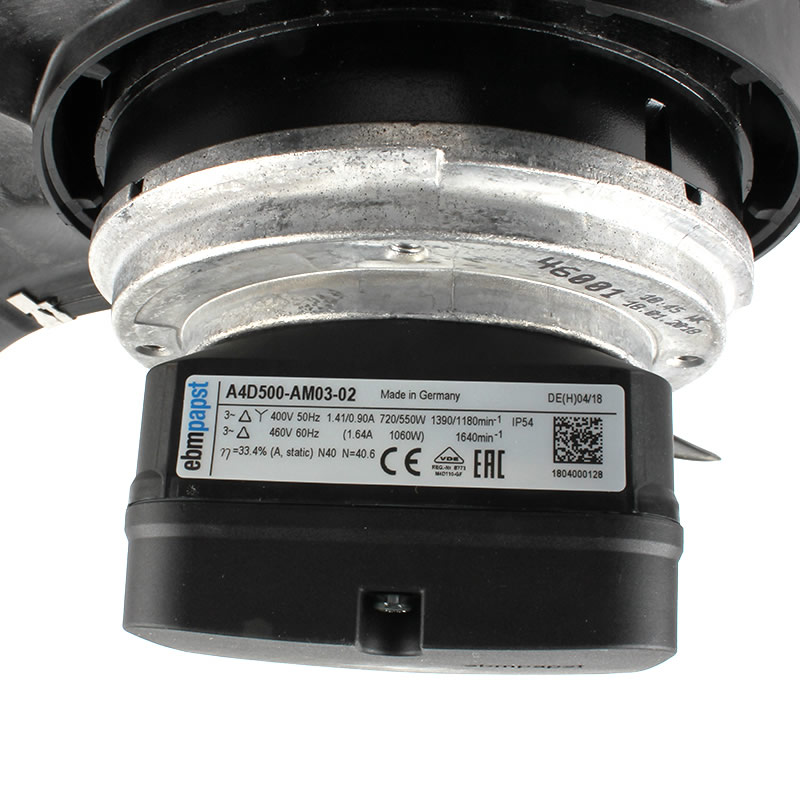

The ebm-papst A4D500-AM03-02 is a robust 500 mm AC axial fan designed for high airflow requirements in various industrial and commercial applications. Operating on 3-phase 400 VAC (50Hz) or 460 VAC (60Hz), it typically draws 1.41 A (720 W) at 50Hz (Delta) to achieve 1390 RPM, or 1.64 A (1060 W) at 60Hz (Delta) for 1640 RPM. Constructed with a durable, black-coated steel impeller and an IP54-rated casing, this fan weighs approximately 9.44 kg and ensures reliable performance within an ambient temperature range of -40°C to 65°C. It includes integrated thermal protection for enhanced safety and longevity, making it a dependable choice for refrigeration, air conditioning, and general ventilation.
Specifications
| Model | A4D500-AM03-02 |
|---|---|
| Manufacturer | ebm-papst |
| Bearing Type | Ball Bearing |
| Dimensions | 500 mm |
| Phase | 3~ |
| Voltage Rating | 400/460 VAC |
| Number of blades | 5 |
| IP Rating | IP54 |
| Subcategory | AC axial fan |
| Shipping Weight | 10 kg |
| Product PDF | A4D500-AM03-02-ebmpapst.pdf |
