Description

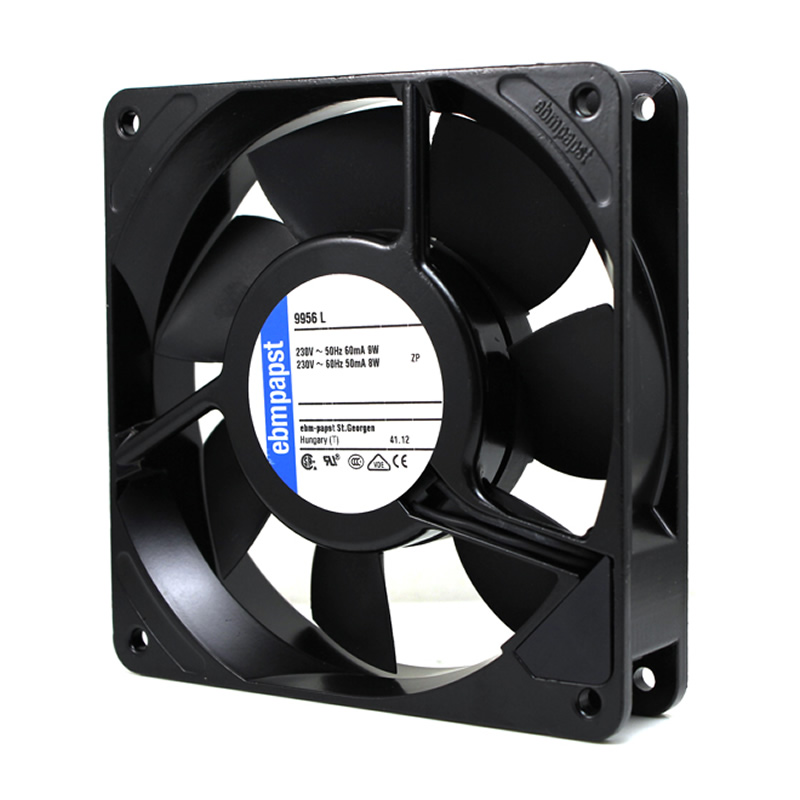

9956L ebmpapst AC 84m3/h 50Hz 119x119x25mm 29dB(A) 4.4B 230VAC Ball Bearing 9.50W 1850RPM 2Terminals axial compact fan

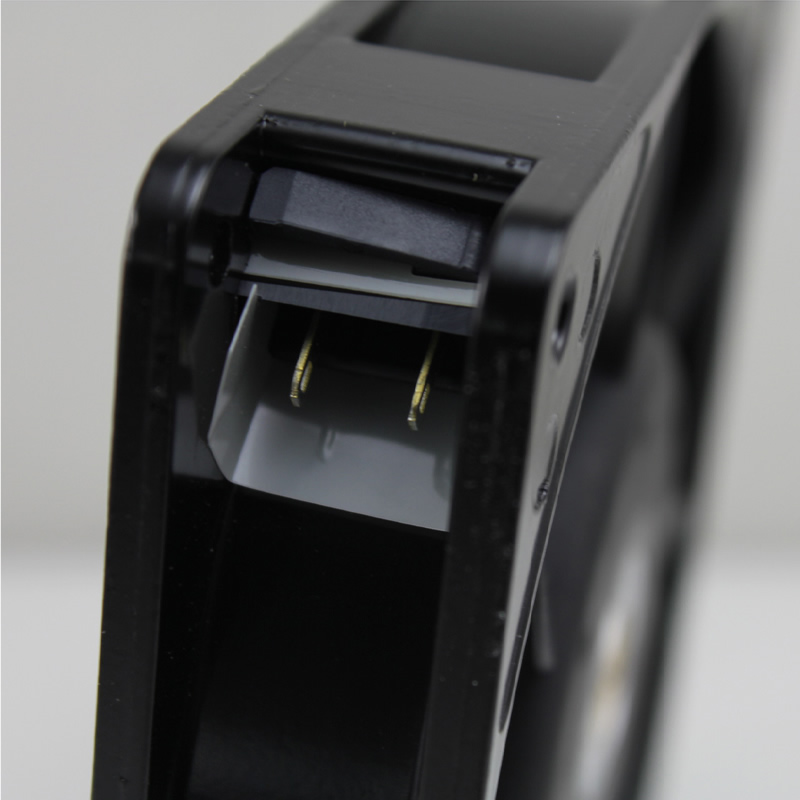

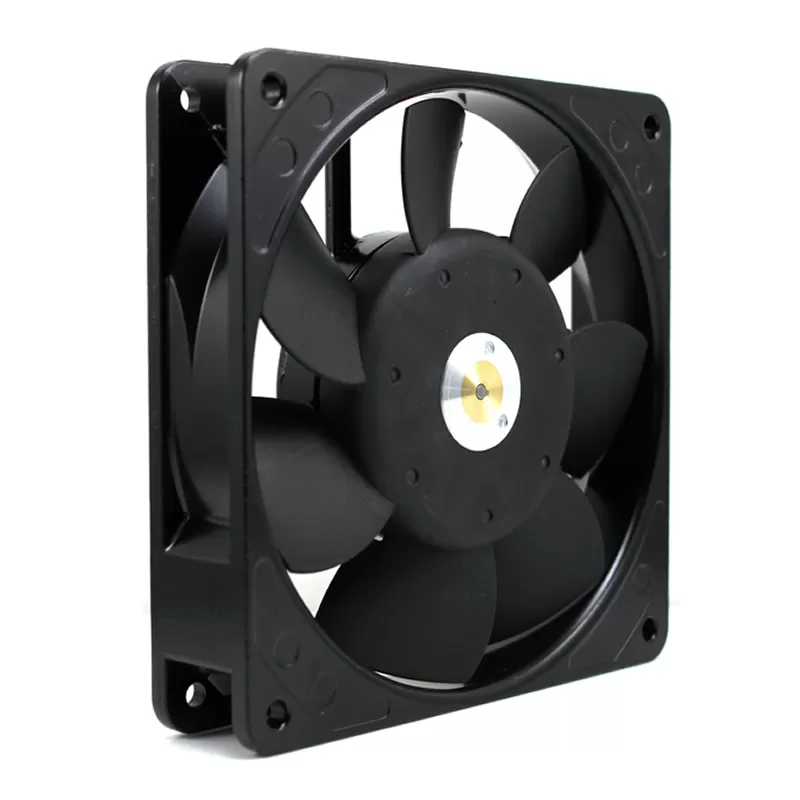

The 9956L is an AC axial compact fan by ebm-papst, designed for low-noise and wide-temperature industrial applications. Its electrical parameters include a single-phase 230VAC/50Hz power supply, 1850rpm speed, 9.5W power consumption, an operating temperature range of -40°C to 80°C, 84m³/h air flow, a sound power level of 4.4B, and a sound pressure level of 29dB(A). Mechanically, it features 119x119x25mm dimensions, 0.325kg weight, a die-cast aluminum housing with a mineral-reinforced PA plastic impeller, air exhaust over struts, and counterclockwise rotation (when viewed toward the rotor). Equipped with ball bearings, it offers L10 service life of 57,500 hours at 40°C and 22,500 hours at maximum temperature. The fan uses 2.8×0.5mm flat plug connections (with M4 grounding lugs) and provides overload protection via impedance protection. Certified for VDE, CSA, UL, and CE, it is suitable for noise-and-temperature-sensitive heat dissipation in devices such as precision instruments and communication cabinets.
Specifications
| Part Number | 9956L |
|---|---|
| Manufacturer | ebm-papst |
| Air Flow | 49.4 CFM |
| Frequency | 50 Hz |
| Fan Type | AC |
| Noise Level | 29 dB(A) |
| Sound power level | 4.4B |
| Dimensions | 119x119x25 mm |
| Air Flow (m3) | 1.38m³/min |
| Series | 9900 |
| Voltage Rating | 230 VAC |
| Bearing Type | Ball Bearing |
| Subcategory | Tubeaxial |
| Power Rating | 9.50 W |
| Fan Speed | 1850 RPM |
| Termination | 2 Terminals |
| Operating Temperature | -40 ~ 176°F (-40 ~ 80°C) |
| Approval Agency | CE, CSA, UL, VDE |
| Weight | 0.716 lb (324.77 g) |
| Subcategory | AC axial compact fan |
