Description

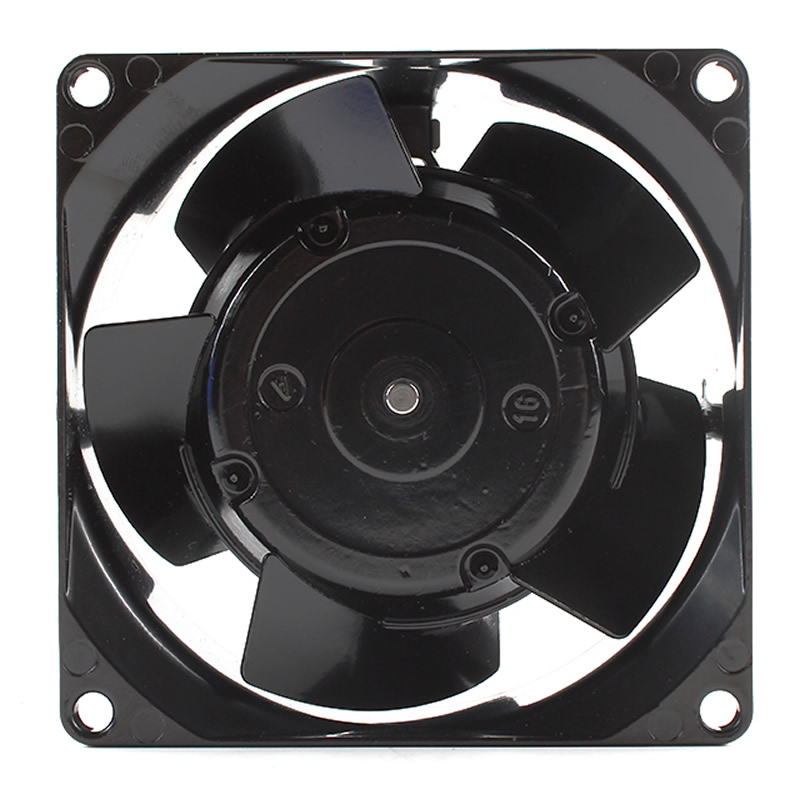

8550N ebmpapst AC 50m3/h 50Hz 80x80x38mm 30dB(A) 4.4B 29.4CFM 230VAC Sintec Bearing 12W 2700RPM 2Wire Leads axial compact fan
The ebm-papst 8550N is an AC axial compact fan with a nominal voltage of 230VAC (50Hz), rotational speed of 2700rpm, power consumption of 12W, air flow of 50m³/h, and sound pressure level of 30dB(A), operating in ambient temperatures from -10°C to 70°C. Measuring 80×80×38mm and weighing 0.49kg, its impeller is made of black-painted sheet steel, and the housing of die-cast aluminum. Rotating clockwise when viewed from the rotor side with an exhaust over struts airflow direction, it features a Sintec sleeve bearing, offering an L10 service life of 52,500 hours at 40°C and 25,000 hours at maximum temperature. The motor is protected against overload by impedance protection, with AWG20 cables and M4×8 grounding lugs. Certified by VDE, CSA, UL, and CE, it suits industrial equipment cooling in compact and low-noise scenarios.
Specifications
| Part Number | 8550N |
|---|---|
| Manufacturer | ebm-papst |
| Air Flow | 29.4 CFM |
| Frequency | 50 Hz |
| Fan Type | AC |
| Noise Level | 30 dB(A) |
| Sound power level | 4.4B |
| Dimensions | 80x80x38 mm |
| Air Flow (m3) | 0.823m³/min |
| Series | 8000N |
| Voltage Rating | 230 VAC |
| Bearing Type | Sintec Bearing |
| Subcategory | Tubeaxial |
| Power Rating | 12 W |
| Fan Speed | 2700 RPM |
| Termination | 2 Wire Leads |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Approval Agency | CE, CSA, UL, VDE |
| Weight | 1.1 lbs (499.0 g) |
| Shipping Weight | 0.5 kg |
| Product PDF | 8550N-ebmpapst.pdf |
