Description

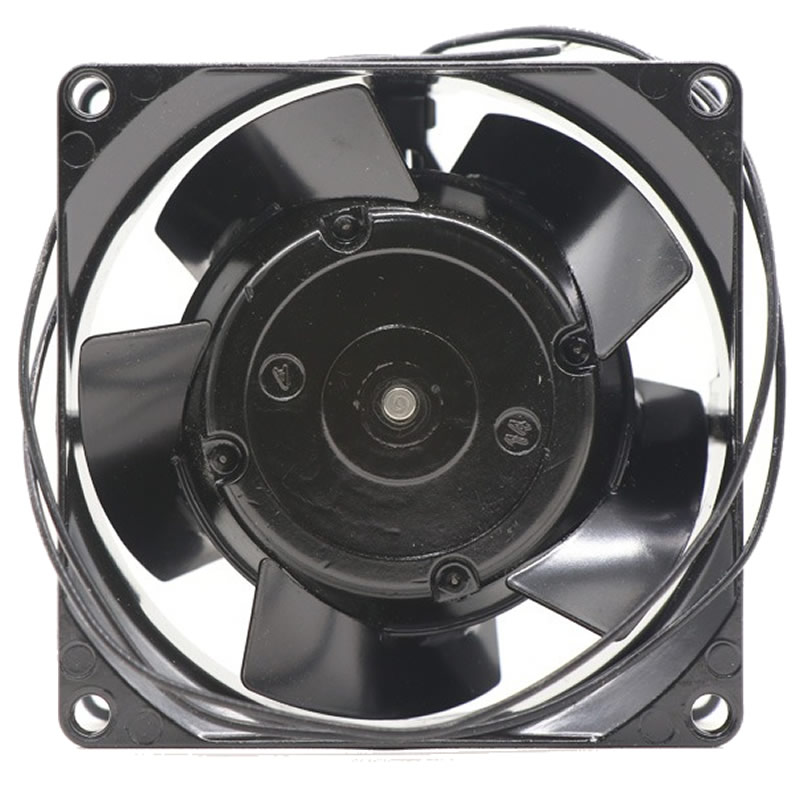

8500N ebmpapst AC 61m3/h 60Hz 80x80x38mm 34dB(A) 4.8B 115VAC Sintec Bearing 3200RPM 2 Wire Leads axial compact fan
This ebm-papst 8500N AC axial compact fan operates at 115 VAC/60 Hz with a 3200 rpm speed, consuming 11.0 W power and suitable for -10°C to 75°C ambient temperatures. It delivers 61 m³/h air flow at 34 dB(A) sound pressure level, measuring 80×80×38 mm and weighing 0.49 kg. The black-painted sheet steel impeller and die-cast aluminum housing feature a Sintec sleeve bearing, offering 55,000 hours L10 life at 40°C (25,000 hours at max temperature). With impedance overload protection and VDE/CSA/UL/CE certifications, it suits heat dissipation in industrial control cabinets, electronic devices, and compact systems.
Specifications
| Part Number | 8500N |
|---|---|
| Manufacturer | ebm-papst |
| Air Flow | 35.9 CFM |
| Frequency | 60 Hz |
| Fan Type | AC |
| Noise Level | 34 dB(A) |
| Sound power level | 4.8B |
| Dimensions | 80x80x38 mm |
| Air Flow (m3) | 1.01m³/min |
| Series | 8000N |
| Voltage Rating | 115 VAC |
| Bearing Type | Sintec Bearing |
| Subcategory | Tubeaxial |
| Power Rating | 11 W |
| Fan Speed | 3200 RPM |
| Termination | 2 Wire Leads |
| Operating Temperature | 14 ~ 167°F (-10 ~ 75°C) |
| Approval Agency | CE, CSA, UL, VDE |
| Weight | 1.1 lbs (499.0 g) |
| Shipping Weight | 0.5 kg |
| Product PDF | 8500N-ebmpapst.pdf |
