8414NG ebmpapst

Description

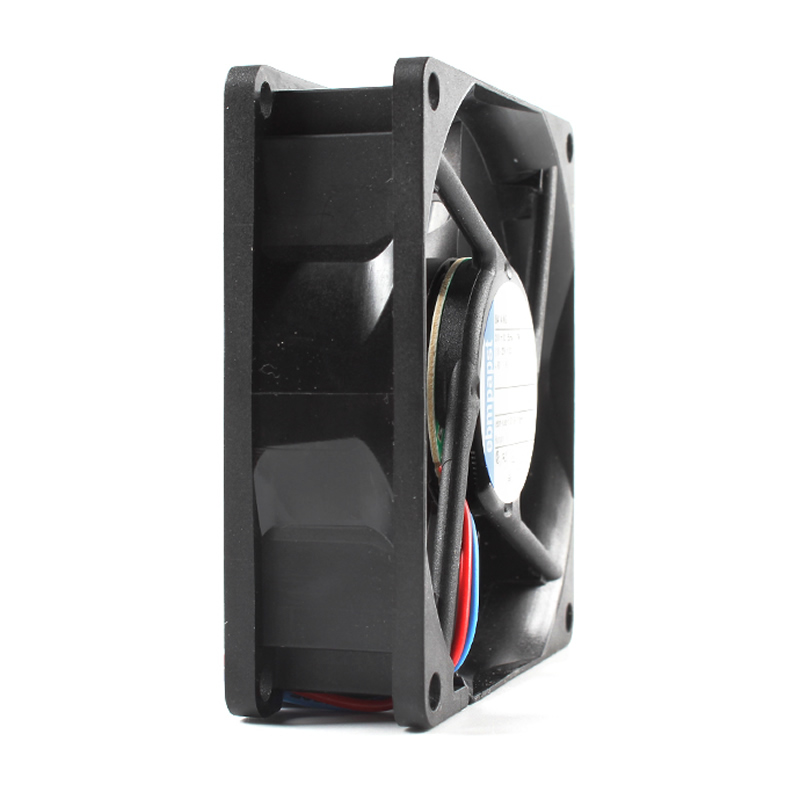

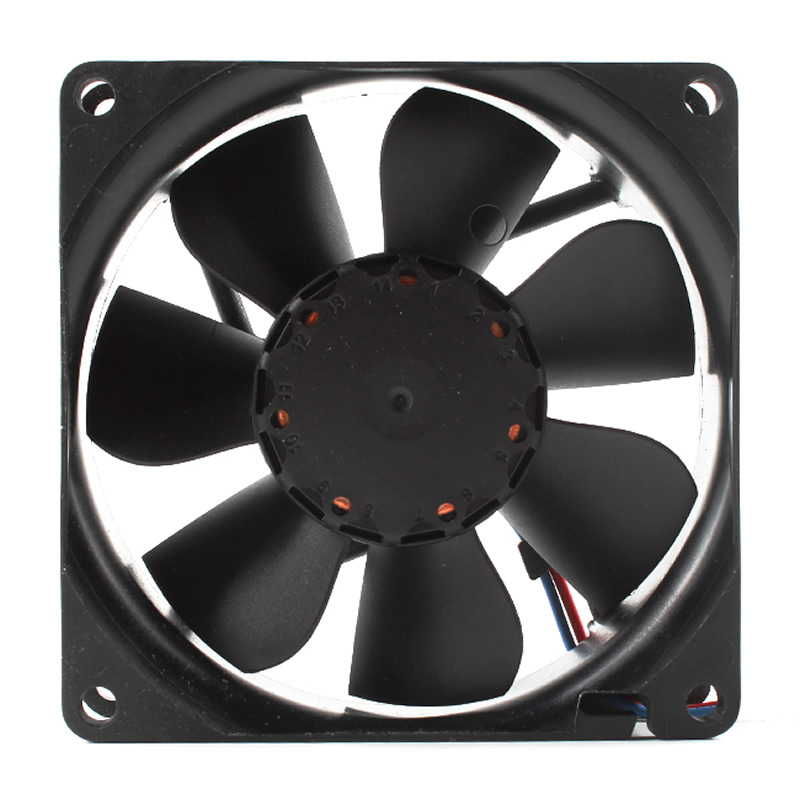

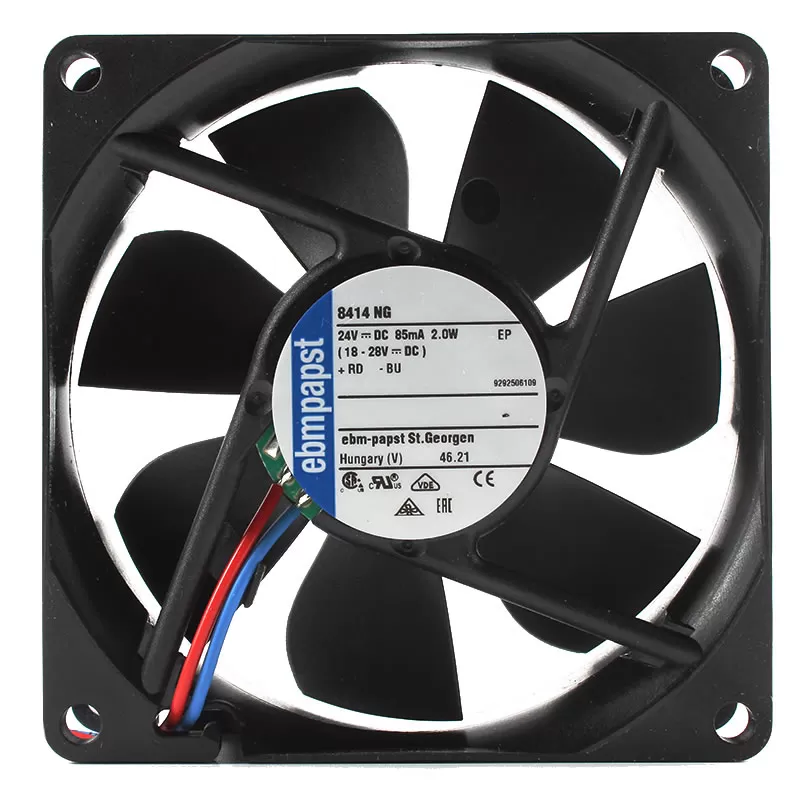

8414NG ebmpapst DC 18~28V 69m3/h 80x80x25mm 32dB(A) 4.7B DC axial compact fan

The 8414 NG is a DC axial compact fan by ebm-papst designed for efficient cooling, featuring a nominal voltage of 24 VDC (18–28 VDC operating range), 3100 min⁻¹ speed, 2.2 W power consumption, and operation across -20°C to 70°C ambient temperatures. It delivers 69 m³/h air flow (free air), a sound power level of 4.7 B, and a sound pressure level of 32 dB(A), balancing performance with quiet operation. Constructed with glass-fiber reinforced PBT plastic housing and PA plastic impeller, it measures 80 x 80 x 25 mm, weighs 0.095 kg, and features counterclockwise rotation (rotor view) with exhaust airflow through struts. The Sintec sleeve bearing ensures L10 service life of 70,000 hours at 40°C and 35,000 hours at 70°C. Electrical protections include reverse polarity, blocked rotor, and overload safeguards, with AWG 24 stripped/tin-plated leads. Certified to VDE, CSA, UL, and CE, it offers customization options like speed signaling, alarms, temperature sensors (internal/external), PWM/analog control, moisture protection, and configurable IP54/IP68 protection, making it versatile for compact, rugged, and tailored thermal management solutions.
