Description
5915PC-23T-B30-A00 NMB Technologies 230VAC 172x150x38mm 212CFM Ball 56dB(A) 35W 3200RPM 2 Terminals Tubeaxial AC fan

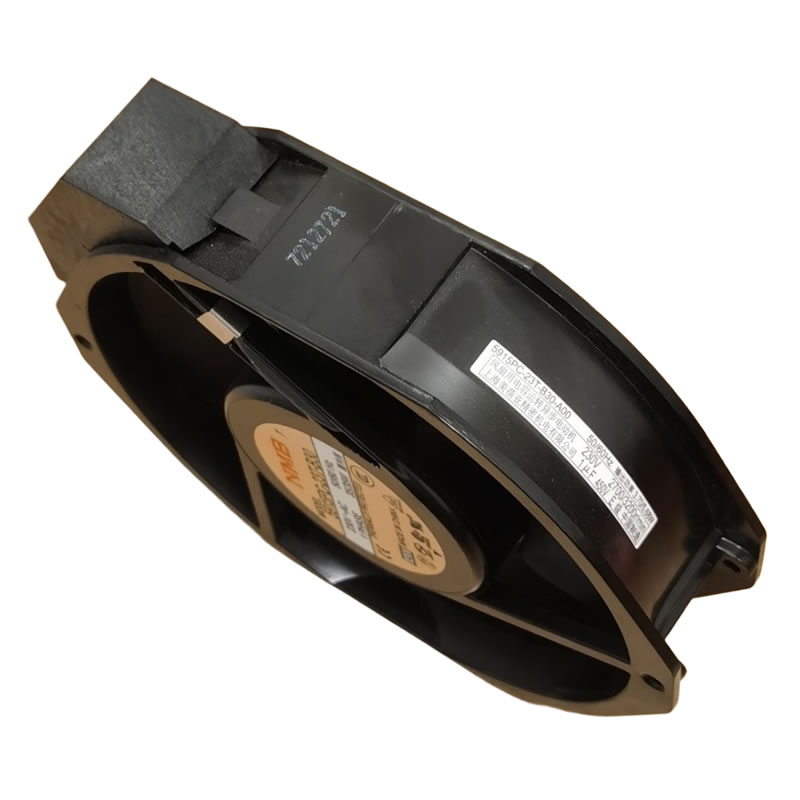

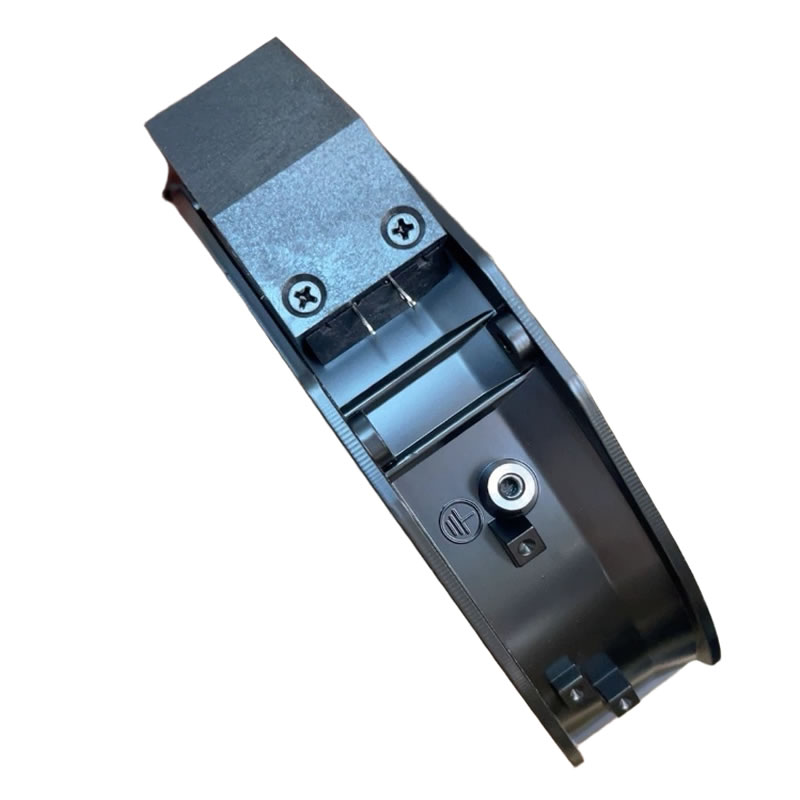

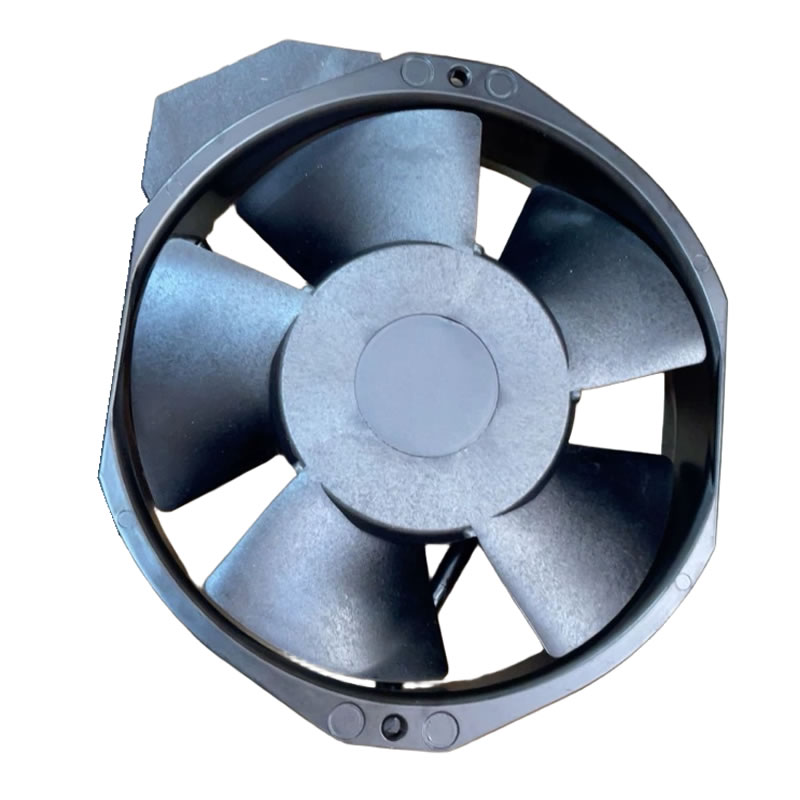

The NMB-MAT 5915PC-23T-B30-A00 is a 172x150x38mm, 230V AC axial fan from NMB Technologies Corporation, designed for cooling in electronic and industrial applications. This robust fan, built with ball bearings and an aluminum housing, provides a significant 212 CFM of airflow at 3200 RPM, with a noise level of 56 dBA, and remains a reliable solution for thermal management.
Specifications
| Part Number | 5915PC-23T-B30-A00 |
|---|---|
| Static Pressure | 0.865 in H2O (215.6 Pa) |
| Fan Type | AC |
| Series | PC |
| Voltage Rating | 230 VAC |
| Dimensions | 172x150x38 mm |
| Air Flow | 212 CFM |
| Air Flow (m3) | 5.94m³/min |
| Manufacturer | NMB Technologies |
| Noise Level | 56 dB(A) |
| Bearing Type | Ball Bearing |
| Power Rating | 35 W |
| Fan Speed | 3200 RPM |
| Termination | 2 Terminals |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Approval Agency | CE, CSA, UL, VDE |
| Weight | 1.8 lbs (816.5 g) |
| Subcategory | Tubeaxial |
| Shipping Weight | 1 kg |
| Product PDF | 5915PC-23T-B30-A00-NMB.pdf |
