Description
The NMB 4710PS-20T-B30-B00 is a reliable 200VAC AC axial cooling fan manufactured by NMB Technologies Corporation (MinebeaMitsumi). This model is part of the NMB 11925PB series and is designed for industrial cooling applications requiring stable airflow, compact installation dimensions, and long-term operational reliability.
According to the NMB product specification, 4710PS-20T-B30-B00 is the legacy part number corresponding to the updated model designation 11925PB-B0L-EA-00. Both model references describe the same 119mm class AC axial fan product family and may appear in different procurement documents, equipment records, and replacement references.

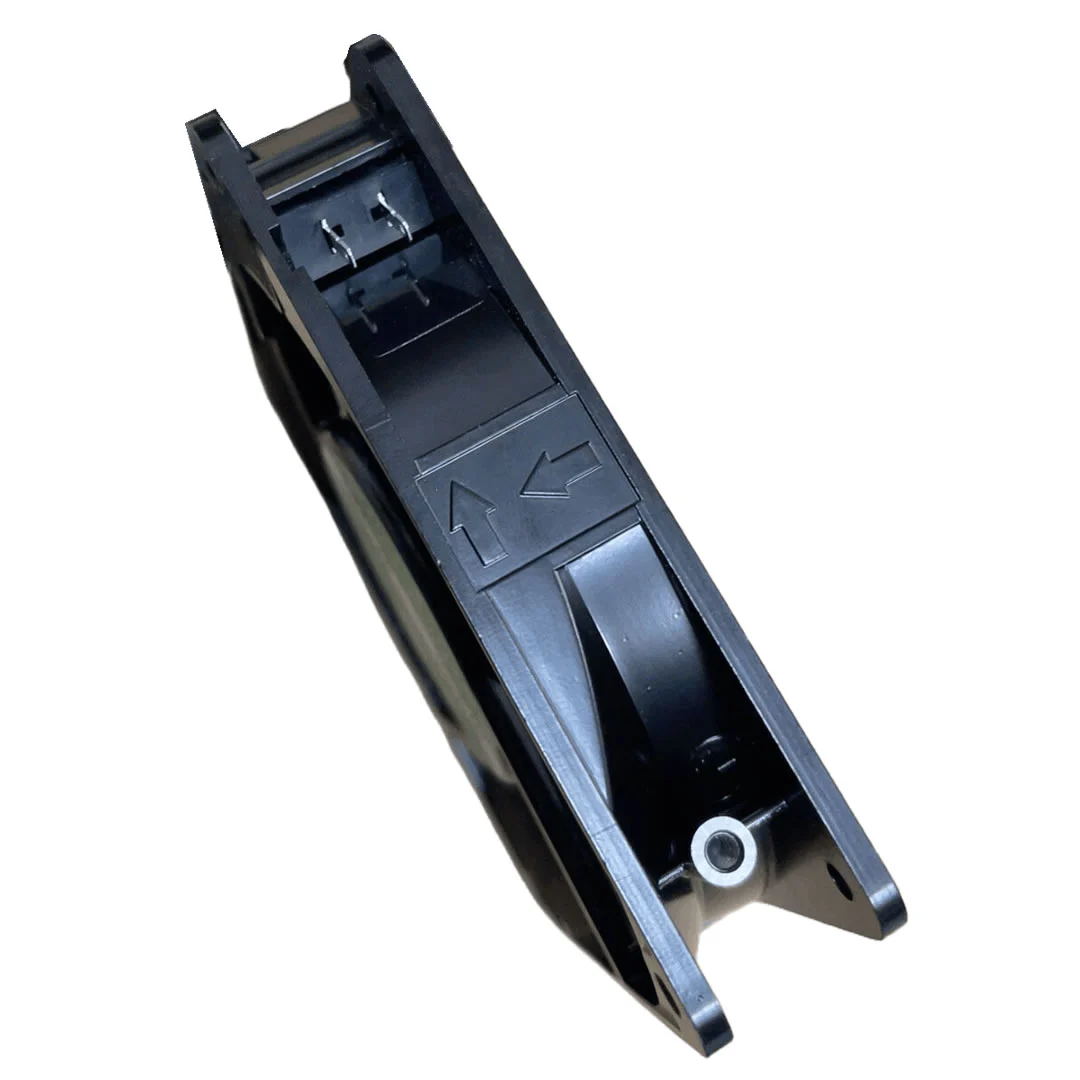

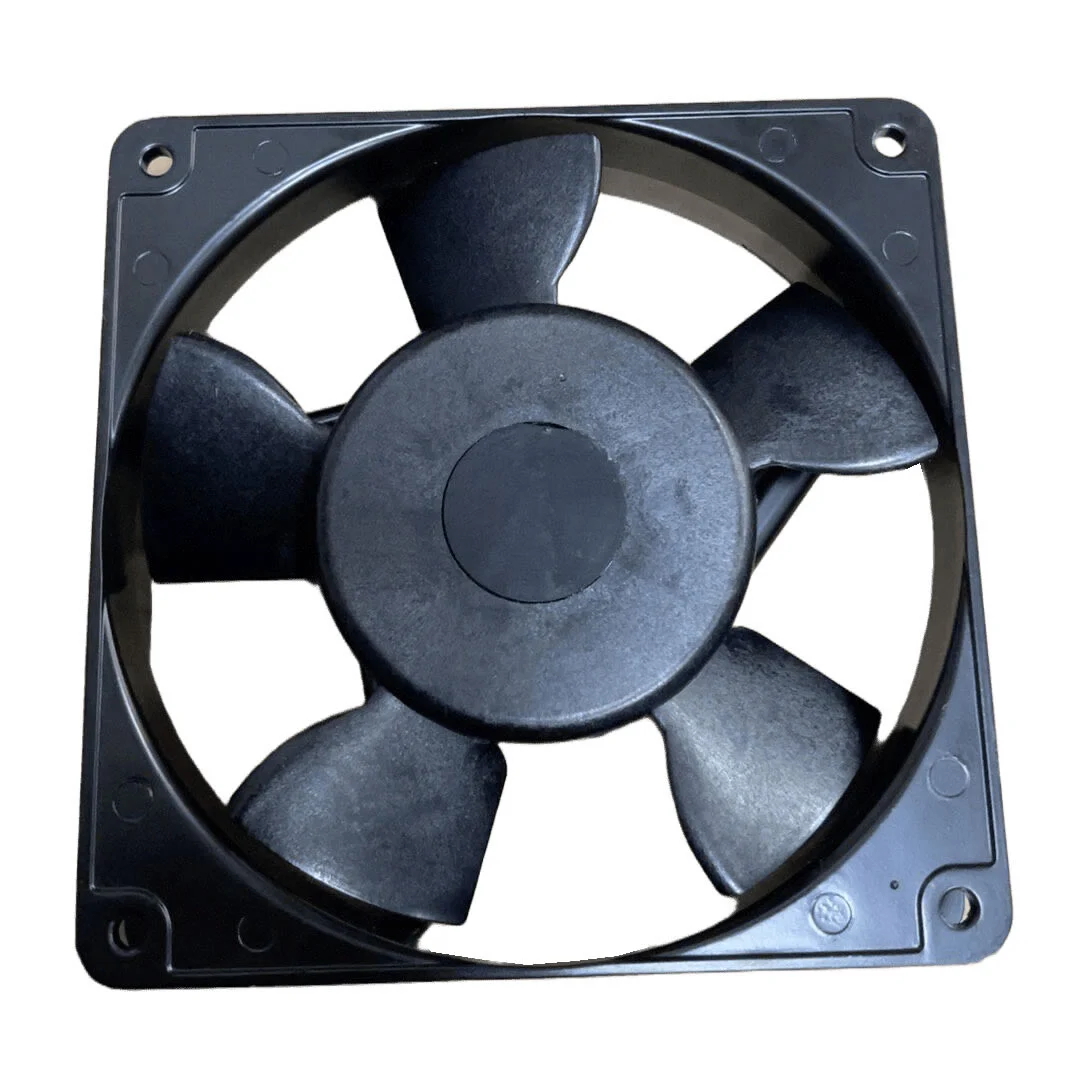

The fan features a compact 119 x 119 x 25.5 mm frame size with a shaded pole induction motor, aluminum housing, black plastic impeller, and ball bearing system. It provides reliable forced airflow for electronic equipment, industrial control systems, power supplies, and ventilation applications.
Model Identification
| Manufacturer | NMB Technologies Corporation (MinebeaMitsumi) |
| Legacy Model Number | 4710PS-20T-B30-B00 |
| New Model Number | 11925PB-B0L-EA-00 |
| Series | 11925PB / 4710PS |
| Product Type | AC Axial Fan |
Technical Specifications
| Rated Voltage | 200 VAC |
| Frequency | 50 / 60 Hz |
| Starting Voltage | 130 VAC |
| Current (50Hz) | 0.110 A |
| Input Power (50Hz) | 14 W |
| Speed (50Hz) | 2300 RPM |
| Airflow (50Hz) | 63.5 CFM (1.80 m³/min) |
| Static Pressure | 0.16 inH₂O (41.1 Pa) |
| Noise (50Hz) | 34 dB(A) |
| Current (60Hz) | 0.090 A |
| Input Power (60Hz) | 11 W |
| Speed (60Hz) | 2700 RPM |
| Airflow (60Hz) | 70.6 CFM (2.00 m³/min) |
| Noise (60Hz) | 38 dB(A) |
Mechanical Specifications
- Frame Size: 119 x 119 x 25.5 mm
- Frame Material: Aluminum (Black Painting)
- Impeller Material: Plastic (Black) UL94V-0
- Bearing System: Ball Bearing
- Lead Wire: AWG22, UL3266
- Terminal: Faston #110 or equivalent
- Rotation Direction: Counterclockwise
General Specifications
- Motor Structure: Shaded Pole Induction Motor
- Motor Protection: Impedance Protection
- Insulation Resistance: 100MΩ or over with DC500V Megger
- Dielectric Withstand Voltage: AC1800V for 3 seconds
- Operating Temperature: -10°C to +70°C
- Storage Temperature: -40°C to +70°C
- Expected Life: 100,000 hours at 25°C (Failure Rate 10%)
Applications
- Industrial control cabinets
- Electronic equipment cooling
- Power supply cooling
- Communication equipment
- Automation systems
- Ventilation equipment
Replacement Information
The NMB 4710PS-20T-B30-B00 is the legacy part number for the updated 11925PB-B0L-EA-00 model. When searching for replacement or equivalent products, both model numbers may be referenced by distributors, engineers, and maintenance teams.
Before replacement, always confirm voltage, frequency, dimensions, airflow performance, mounting hole configuration, and electrical connection requirements.
Specifications
| Part Number | 4710PS-20T-B30-B00 |
|---|---|
| Power Rating | 11 W |
| Fan Type | AC |
| Series | PS |
| Voltage Rating | 200 VAC |
| Dimensions | 119x119x25.50 mm |
| Air Flow | 70.6 CFM |
| Air Flow (m3) | 1.98m³/min |
| Manufacturer | NMB Technologies |
| Noise Level | 38 dB(A) |
| Bearing Type | Ball Bearing |
| Static Pressure | 0.165 in H2O (41.1 Pa) |
| Termination | 2 Terminals |
| Fan Speed | 2700 RPM |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Approval Agency | CE, CSA, UL, VDE |
| Weight | 0.8 lb (362.87 g) |
| Subcategory | Tubeaxial |
| Fan Size | 120 x 120 x 25 mm |
| Cooling Type | Axial Fan |
| Air Flow Range | 50 – 150 CFM ( 85 – 255 m³/h ) |
| Static Pressure Range | 10 – 50 mmH₂O ( 100 – 500 Pa ) |
| Fan Speed Range | 2,000 – 4,500 RPM |
| Noise | 30 – 45 dB(A) (Standard) |
| Shipping Weight | 10 kg |
